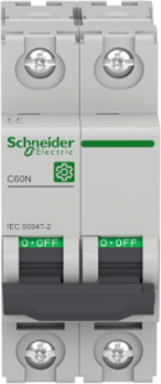

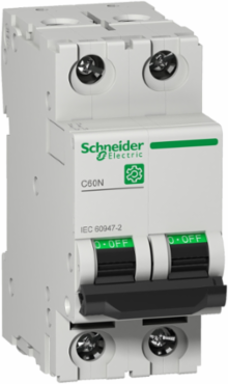

Schneider Electric M9F11216 Multi9 C60N Miniature Circuit Breaker 2P 16A C Curve 10kA
- MPN: M9F11216
- PPN: SCH-M9F11216
CAD
$110.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 16A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Bulgaria, France, United States
Depth72 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length14 mm for top or bottom connection
Complementary Attributes
- Line Rated Current
- 16 A 50 °C EN/IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Network Type
- DC, AC
- Quality Labels
- UKCA, RCM
- [Ics] Rated Service Breaking Capacity
- 7.5 kA 75 % GB/T 14048.2 - 415 V AC 50/60 Hz4.5 kA 75 % GB/T 14048.2 - 440 V AC 50/60 Hz, 20 kA 100 % GB/T 14048.2 - <= 125 V DC16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz20 kA 100 % EN/IEC 60947-2 - <= 125 V DC, 16 kA 75 % GB/T 14048.2 - 240 V AC 50/60 Hz
- Connections - Terminals
- tunnel type terminal top or bottom) 1-25 mm² - rigid, tunnel type terminal top or bottom) 1-25 mm² - flexible, tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6375284832073403, 0.6 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.5327307128383438
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 28.006
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1645
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Commercial
- Connection Pitch
- 18 mm between phases
- Control Type
- toggle
- Device Application
- distribution
- Electrical Durability
- 10000 cycles
- Heat Dissipation
- 5-5 W 415 V - 16 A
- Local Signalling
- ON/OFF indication
- Mechanical Durability
- 20000 cycles
- Mounting Support
- DIN rail
- Number Of Poles
- 2P
- Overvoltage Category
- IV
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- miniature circuit-breaker
- Range
- Multi9
- Returnability
- Yes
- Suitability For Isolation
- yes EN/IEC 60947-2
- Tightening Torque
- 2-2 N.m top or bottom
- Total Power Losses
- 5.2 W
- Tropicalisation
- 2 IEC 60068-1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1304004EN
- Pep Verification Date
- 2023-03-02
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; BG
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 56
- Width Nominal
- 36 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 60947-2
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 209.000 g
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 27.968
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 713.5
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 41.64
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 0.2728
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 137.01
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 137.01
- Tsca Regulation
- Does not contain Section 6H Chemical
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Poles Description2P
Certificate AgencyEAC, KC, CCC
[Ue] Rated Operational Voltage<= 125 V DC, <= 125 V DC, 240 V AC 50/60 Hz between phases, 415 V AC 50/60 Hz between phases, 440 V AC 50/60 Hz between phases, <= 125 V DC, <= 125 V DC
Carbon Footprint Of The Distribution Phase [A4]0.031772150279447346, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.010309346009295313
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]28 kg CO2 eq., 28.006
Local Publishable Date2026-07-13
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Contact Position Indicatoryes
Curve CodeC
Device Short NameC60N
Energy Efficiency OptimizedFalse
Limitation Class3
Magnetic Tripping Limit8.5 x In +/- 20 % AC12 x In +/- 20 % DC
Mounting Modeclip-on
Network Frequency50/60 Hz
Number Of Protected Poles2
Power Losses Per Pole2.6 W
Product NameMulti9 C60
Provision For Padlockingpadlockable
Range Of ProductMulti9
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint30 kg CO2 eq.
Trip Unit Technologythermal-magnetic
Utilisation Categorycategory A EN/IEC 60947-2
Rated Current 316 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh68.328
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal81 mm
[Ui] Rated Insulation Voltage500 V AC 50/60 Hz EN/IEC 60947-2
Earth-leakage Protectionseparate block
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]28.006
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]301.6
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]4.0294
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]850.5
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]713.5
Customs Code8536200040
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Carbon Footprint
- 30.301551423418267
- Ambient Air Temperature For Operation
- -30-70 °C-30-70 °C
- Eu Rohs Directive
- Compliant
- Ip Degree Of Protection
- IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 95-95 % 55-55 °C
- Pep Verification Date
- 2023-03-02
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Silicon FreeNo
9 Mm Pitches4
Environmental DisclosureENVPEP1304004EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1304004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- miniature circuit-breaker
