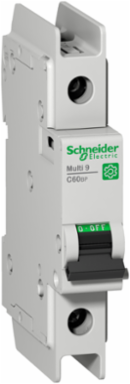

Schneider Electric M9F42101 Miniature Circuit Breaker, 1P, 1A, C Curve, 14kA, IP20, DIN Rail Mounted
- MPN: M9F42101
- PPN: SCH-M9F42101
CAD
$50.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 1A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Features
- The M9F42101 is a 1-Amp, single-pole, DIN-rail mounted miniature circuit breaker (MCB) from Schneider Electric's Multi9 C60BP series. It is a high-performance, multi-standard breaker specifically designed for OEMs (Original Equipment Manufacturers) and control panel builders who need precise protection for low-current circuits.
- Because of its very low 1-Amp rating, this breaker is not for general lighting or power outlets. Instead, it is used to protect sensitive components in industrial control panels, such as: PLC Inputs/Outputs: Protecting delicate programmable logic controller circuitry. Control Transformers: Providing branch protection on the secondary side. Sensors and Transmitters: Safeguarding expensive instrumentation. Power Supplies: Individual protection for small DC power units.
- The C Curve designation means the breaker will trip instantaneously when it senses a current between 7 and 10 times its rated load (AC). This makes it ideal for circuits with moderate "inrush" currents, such as small solenoids or control relays, where a "B" curve might trip too easily but a "D" curve would be too slow.
- The C60BP line is "Multi-Standard," meaning it carries several global certifications in a single unit. It is CSA C22.2 No. 5 and UL 489 listed, making it fully legal for use as a "Branch Circuit Protector" in Canada and the USA. This is a significant step up from "supplementary protectors" (like the UL 1077 series), as it can be used for primary circuit protection.
- Despite its small size, the M9F42101 is incredibly rugged: At 277V AC: It has an interrupting rating (AIR) of 10,000 Amps. At 120V/240V AC: It is rated for 14,000 Amps. DC Rating: It is also rated for 60V DC (10kA), making it versatile for both AC control circuits and DC power distribution.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Depth72 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length14 mm for top or bottom connection
Complementary Attributes
- Line Rated Current
- 1 A 25 °C EN/IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Network Type
- DC, AC
- Certificate Agency
- IEC, CCC, CSA, UL
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz, 415 V AC 50/60 Hz60 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.018142861577759562, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.00588694929234504
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 7 kg CO2 eq., 7.0015
- Local Publishable Date
- 2026-07-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Contact Position Indicator
- yes
- Curve Code
- C
- Device Short Name
- C60BP
- Energy Efficiency Optimized
- False
- Magnetic Tripping Limit
- 8.5 x In +/- 20 % AC12 x In +/- 20 % DC
- Mounting Mode
- clip-on
- Number Of Poles
- 1P
- Power Losses Per Pole
- 1.3 W
- Product Name
- Multi9 C60
- Provision For Padlocking
- padlockable
- Range Of Product
- Multi9
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 8 kg CO2 eq.
- Trip Unit Technology
- thermal-magnetic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1304004EN
- Pep Verification Date
- 2023-03-02
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; BG
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 56
- Width Nominal
- 18 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 60947-2
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 124.000 g
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 6.992
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 178.375
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 10.41
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 212.625
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 178.375
- Customs Code
- 8536200020
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Poles Description1P
[Ics] Rated Service Breaking Capacity7.5 kA 75 % GB/T 14048.2 - 240 V AC15 kA 75 % EN/IEC 60947-2 - 60 V DC, 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC7.5 kA 75 % EN/IEC 60947-2 - 240 V AC, 2.25 kA 75 % GB/T 14048.2 - 415 V AC, 15 kA 75 % GB/T 14048.2 - 60 V DC
Connections - Terminalstunnel type terminal top or bottom) 1-25 mm² 18 AWG...8 AWG) - rigid, with ferrule, tunnel type terminal top or bottom) 1-16 mm² 18 AWG...8 AWG) - flexible
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.364048102535633, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.8787474688868434
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Use Carbon Footprint7.0015
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1645
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Connection Pitch18 mm between devices
Control Typetoggle
Device Applicationdistribution
Electrical Durability10000 cycles
Local SignallingON/OFF indication
Mechanical Durability20000 cycles
Mounting SupportDIN rail
Number Of Protected Poles1
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeminiature circuit-breaker
RangeMulti9
ReturnabilityYes
Suitability For Isolationyes EN/IEC 60947-2
Tightening Torque2.5-2.5 N.m top or bottom
Total Power Losses1.3 W
Tropicalisation2 IEC 60068-1
Rated Current 31 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh17.082
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal103 mm
[Ui] Rated Insulation Voltage500 V AC EN/IEC 60947-2
Earth-leakage Protectionwithout
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]7.0015
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]75.4
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]0.0682
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]34.2525
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]34.2525
Tsca RegulationDoes not contain Section 6H Chemical
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Carbon Footprint
- 8.312329495435428
- Ambient Air Temperature For Operation
- -30-70 °C-30-70 °C
- Eu Rohs Directive
- Compliant
- Ip Degree Of Protection
- IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1304004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Silicon FreeNo
9 Mm Pitches2
Environmental DisclosureENVPEP1304004EN
Halogen Content PerformanceHalogen free plastic parts product
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 55-55 °C
Pep Verification Date2023-03-02
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductMulti9
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
