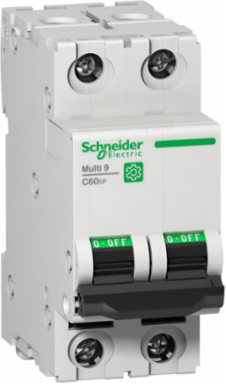

Miniature Circuit Breaker 2P 10A C Curve 10kA IP20 36mm Width
Schneider Electric

Schneider Electric M9F22210 Miniature Circuit Breaker 2P 10A C Curve 10kA IP20 36mm Width

  • MPN: M9F22210
  • PPN: SCH-M9F22210
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $80.35

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 10A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

    Features

    • Rated for a precise 10 Amps at 240/415V AC or 125V DC, this 2-pole supplementary protector is purpose-built to isolate multi-phase control components or dual-line equipment inputs. For industrial control panel builders and automation programmers, this lets you isolate branch control paths, protecting downstream PLC modules, HMI panels, and precision sensor blocks from localized overloads without tripping the main facility distribution lines.
    • This Multi9 C60SP protector is engineered with a wide operational ceiling, supporting nominal voltages of 240V AC, 415V AC, and up to 440V AC at 50/60 Hz. This versatile voltage tolerance allows electrical engineering teams to confidently specify this single component across standard 240V single-phase systems, 415V European-style industrial networks, and 440V heavy machinery control loops without needing separate step-down transformers.
    • Engineered with a thermal-magnetic C-curve trip mechanism, this module carries a magnetic tripping threshold calibrated to trigger at 8.5 x In +/- 20% AC. This intentional delay smoothly absorbs high-inrush electrical spikes from solenoid valves, small fractional motors, and industrial fan drives while ensuring instant, automatic circuit interruption the moment a true short circuit occurs.
    • Designed with heavy-duty box tunnel terminals, this module clamps tightly onto wire profiles ranging from fine 18 AWG flexible conductors up to 8 AWG rigid branch lines. Tightening the top and bottom terminals to the specified torque of 22.1 lbf-in (2.5 N-m) establishes a compression fit that resists localized mechanical vibrations, while the IP20 finger-safe housing shield prevents accidental electrical shocks during manual maintenance checks.
    • Measuring exactly 36mm wide (occupying four 9mm pitches) on a standard 35mm DIN rail, this clip-on protector fits neatly alongside compact switchgear grids.

    Documentation & Downloads

    Specifications

    Additional

    Rated Current
    10 A 25 °C EN/IEC 60947-2
    Breaking Capacity
    14 kA AIR 240 V AC UL 1077, 14 kA AIR 240 V AC CSA C22.2 No 235, 10 kA AIR 480Y/277 V AC UL 1077, 10 kA AIR 125 V DC UL 1077, 10 kA AIR 480Y/277 V AC CSA C22.2 No 235, 10 kA AIR 125 V DC CSA C22.2 No 235, 6 kA Icu 440 V AC EN/IEC 60947-2, 10 kA Icu 415 V AC EN/IEC 60947-2, 20 kA Icu 240 V AC EN/IEC 60947-2, 6 kA Icu 440 V AC GB 14048.2, 10 kA Icu 415 V AC GB 14048.2, 20 kA Icu 240 V AC GB 14048.2
    Impulse Withstand Voltage
    6 kV EN/IEC 60947-2
    Magnetic Tripping Limit
    8.5 x In ± 20 % AC; 12 x In ± 20 % DC
    Tripping Curve
    C
    Mounting Support
    DIN rail
    Width
    36 mm (4 pitches of 9 mm)
    Depth
    72 mm
    Tightening Torque
    2.5 N.m top or bottom
    Pollution Degree
    3 EN/IEC 60947-2
    Operating Temperature Range
    -30 to 70 °C
    Product Certifications
    IEC; CCC; UR; CSA; UL 1077
    Provision for Padlocking
    Padlockable
    Mechanical Durability
    20000 cycles
    Network Type
    AC; DC
    Trip Unit Technology
    thermal-magnetic
    Device Application
    distribution
    Contact Position Indicator
    Yes
    Operating Altitude
    0...2000 m
    Ambient Air Temperature For Operation
    -30 to 70 °C
    Mercury Free
    Yes
    Range
    Multi9
    Eu Rohs Directive
    Compliant with Exemptions
    Rohs Exemption Information
    Yes
    Circularity Profile
    N/A
    Tropicalisation
    2 IEC 60068-1
    Rated Service Breaking Capacity4.5 kA 75% EN/IEC 60947-2 - 440 V AC; 7.5 kA 75% EN/IEC 60947-2 - 415 V AC; 15 kA 75% EN/IEC 60947-2 - 240 V AC
    Operational Voltage240 V AC 50/60 Hz; 415 V AC 50/60 Hz; 440 V AC 50/60 Hz
    Rated Insulation Voltage500 V AC EN/IEC 60947-2
    Poles2P
    Mounting TypeDIN rail clip-on
    Mounting Modeclip-on
    Height81 mm
    Wire Stripping Length14 mm for top or bottom connection
    Connections - TerminalsTunnel type terminal top or bottom, 1 to 25 mm² rigid and flexible AWG 18 to 8
    IP Degree of ProtectionIP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
    Storage Temperature Range-40 to 80 °C
    Suitability for IsolationYes EN/IEC 60947-2
    Electrical Durability10000 cycles
    ColorGrey (RAL7035)
    Curve CodeC
    Device Short NameC60SP
    Product Or Component Typeminiature circuit-breaker
    Earth-Leakage ProtectionWithout
    Halogen Content PerformanceHalogen free
    Ambient Air Temperature For Storage-40 to 80 °C
    Local SignallingON/OFF indication
    Environmental DisclosureENVPEP1304004EN
    China Rohs RegulationOut of China RoHS scope
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains SVHC above threshold
