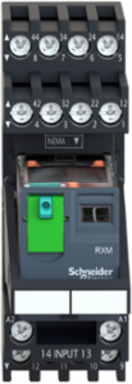

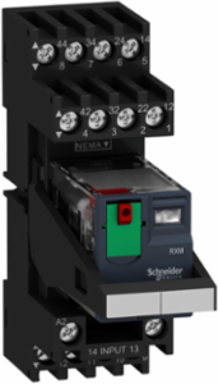

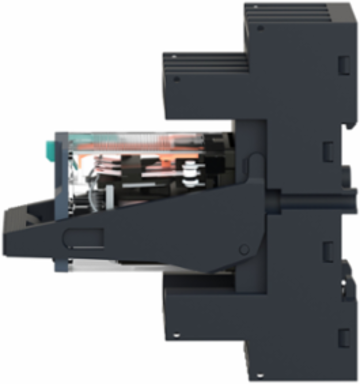

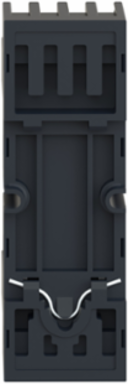

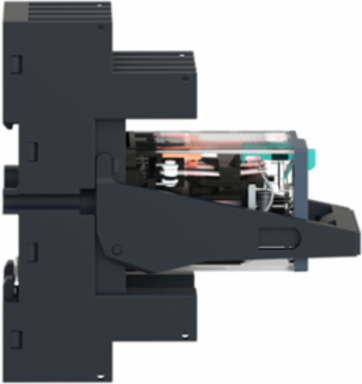

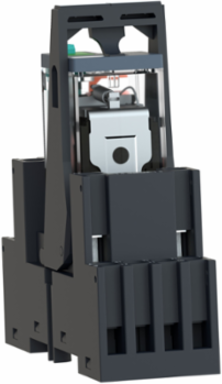

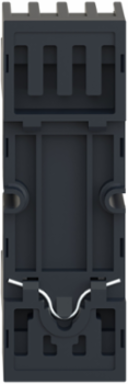

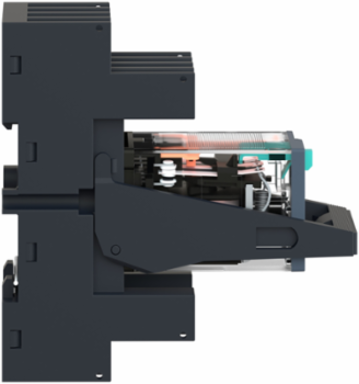

Schneider Electric RXM4AB1B7PVM Miniature Plug-In Relay 6A 4CO 24V AC with Lockable Test Button
- MPN: RXM4AB1B7PVM
- PPN: SCH-RXM4AB1B7PVM
CAD
$42.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

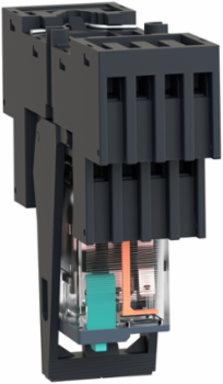

This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a mixed contact terminal socket with integrated clamp and legend. This is a 6A, 24Vac, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button. The miniature relay socket connection is by screw connector or screw clamp terminal type. This pre-assembled relay weighs 0.099Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Physical Attributes

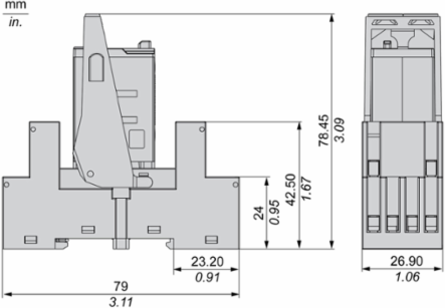

- Cad Overall Depth
- 78.45 mm
- Cad Overall Width
- 26.9 mm
Cad Overall Height79 mm
Complementary Attributes
- Control Circuit Type
- AC
- Maximum Switching Capacity
- 1500 VA/168 W AC/DC
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
- Minimum Switching Voltage
- 17 V
Line Rated Current6 A
Maximum Switching Voltage250 V
Minimum Switching Current10 mA
Rated Operational Voltage Limits19.2...26.4 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
- Control Circuit Voltage
- 24 V
- Certificate Agency
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- Connections - Terminals
- screw connectors, connector, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endconnector, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endconnector, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endconnector, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.012257152901725351, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0005809424768535591
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 18 kg CO2 eq., 17.589535714285716
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2106019EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 1.2 W, AC
- Compatibility Code
- RXM
- Contacts Material
- AgNi
- Control Type
- lockable test button
- Load Current
- 6 A 250 V AC6 A 28 V DC
- Operating Position
- any position
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- miniature relay
- Returnability
- Yes
- Sale Per Indivisible Quantity
- 30
- Shape Of Pin
- flat (faston type)
- Software Version
- v5.9.1
- Sustainable Packaging
- Yes
- Torque Value
- 1 N.m
- Utilisation Coefficient
- 20 %
- Pep Code
- ENVPEP2106019EN
- Pep Verification Date
- 2023-11-27
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ie] Rated Operational Current
- 6 A 250 V AC) NO IEC3 A 28 V DC) NC IEC3 A 250 V AC) NC IEC6 A 28 V DC) NO IEC6 A 277 V AC) UL8 A 30 V DC) UL
- [Ui] Rated Insulation Voltage
- 250 V IEC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410020
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Control Circuit Type2AC
[Uc] Control Circuit VoltageAC 50/60 Hz, 24 V
Drop-out Voltage Threshold>= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.012426946734913633, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.7516238156348493
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance180 Ohm 20 °C +/- 10 %
Contact Terminal Arrangementmixed
Contacts Type And Composition4 C/O
Electrical Durability100000 cycles resistive
Mechanical Durability10000000 cycles
Operating Time20 ms
Product Or Component Typepre-assembled plug-in relay with socket
Range Of ProductHarmony Electromechanical Relays
Reset Time20 ms
Safety Reliability DataB10d = 100000
Series NameRXM series
Shock Resistance10 gnin operation30 gnnot operating
Status Ledwithout
Test Levelslevel A group mounting
Total Lifecycle Carbon Footprint18 kg CO2 eq.
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Database Version2016-11
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionRXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Recyclability Potential In %55
[Ithe] Conventional Enclosed Thermal Current6 A
[Uimp] Rated Impulse Withstand Voltage2.5 kV 1.2/50 µs
Package Weight(Lbs)95.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Environmental Disclosure
- ENVPEP2106019EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-11-27
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint18.366424572034056
Circularity ProfileENVEOLI2106019EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2106019EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- pre-assembled plug-in relay with socket
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Output Attributes
- Continuous Output Current
- 5 A
Contractual Warranty Attributes
- Warranty Period
- 18 Months
Warranty18 Months
Overview Attributes
- Device Presentation
- complete product
