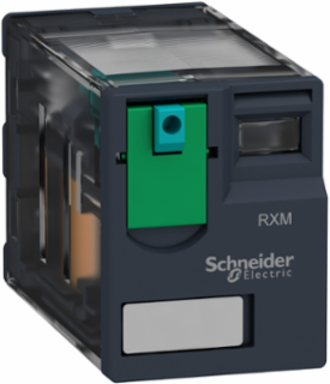

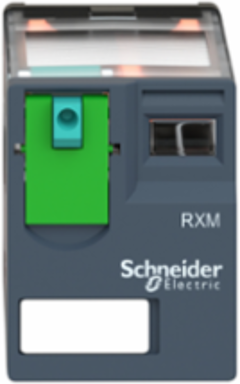

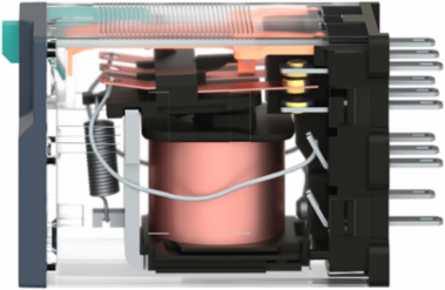

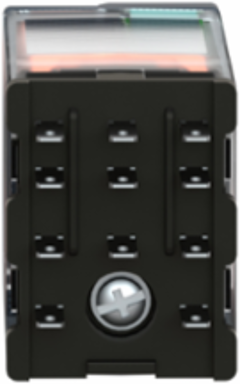

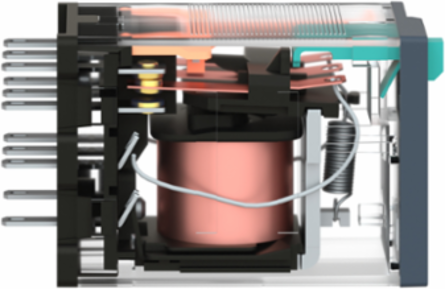

Schneider Electric RXM3AB1BD Miniature Plug-in Relay, 10A, 24V DC, 3 C/O, Lockable Test Button
- MPN: RXM3AB1BD
- PPN: SCH-RXM3AB1BD
CAD
$15.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Miniature Plug-in Relay, 10A, 24V DC, 3 C/O, Lockable Test Button
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Spain, France, Sweden, United States
Physical Attributes
- Cad Overall Depth
- 80.35 mm
Cad Overall Height82.8 mm
Complementary Attributes
- Control Circuit Type
- DC
- Maximum Switching Capacity
- 2500 VA/280 W
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Line Rated Current10 A
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits19.2...26.4 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact, 2000 V AC between poles
- Operating Rate
- <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Certificate Agency
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- [Uc] Control Circuit Voltage
- 24 V DC, 24 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0047738385, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0002262618
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 16 kg CO2 eq., 16.1581114286
- Local Publishable Date
- 2026-01-12
- Future Imap
- 5.97
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2106019EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.9 W
- Compatibility Code
- RXM
- Contacts Type And Composition
- 3 C/O
- Electrical Durability
- 100000 cycles resistive
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- miniature relay
- Returnability
- Yes
- Series Name
- RXM series
- Software Version
- EIME v5.9.1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 16 kg CO2 eq.
- Control Circuit Type2
- DC
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Drop-out Voltage Threshold
- >= 0.1 Uc>= 0.1 Uc
- Package Weight(Lbs)
- 38.000 g
- Warranty (In Months)
- 18
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 204.462
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Load Current10 A 250 V AC, 10 A 28 V DC
Shock Resistance10 gnin operation, 30 gnnot operating
Control Circuit Voltage24 V
[Ie] Rated Operational Current5 A 250 V AC) NC IEC10 A 28 V DC) NO IEC, 10 A 250 V AC) NO IEC, 5 A 28 V DC) NC IEC, 10 A 30 V DC) UL, 10 A 277 V AC) UL
[Ui] Rated Insulation Voltage250 V IEC, 300 V CSA, 300 V UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0048399687, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2927376966
Local Data StatusPublishable
Return IndicatorY
Future Msrp6.66
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance650 Ohm 20 °C +/- 10 %
Contacts MaterialAgNi
Control Typelockable test button
Mechanical Durability10000000 cycles
Operating Time20 ms
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
Reset Time20 ms
Safety Reliability DataB10d = 100000
Shape Of Pinflat (faston type)
Status Ledwithout
Test Levelslevel A group mounting
Utilisation Coefficient20 %
Pep CodeENVPEP2106019EN
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]204.462
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Environmental Disclosure
- ENVPEP2106019EN
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint16.4606891942
Circularity ProfileENVEOLI2106019EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2106019EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Output Attributes
- Continuous Output Current
- 6.7 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
