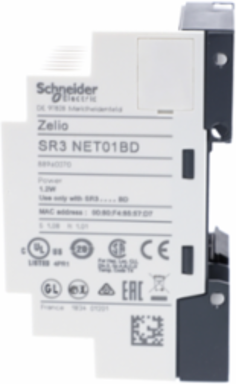

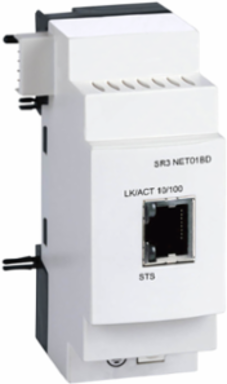

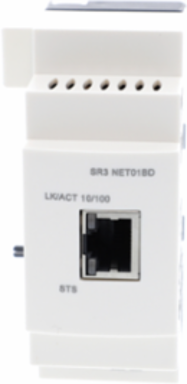

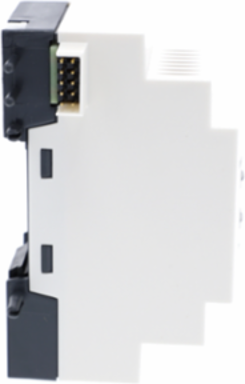

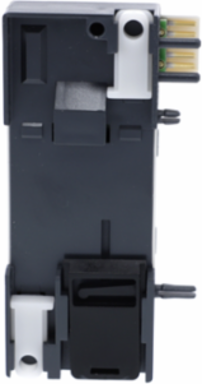

Telemecanique Sensors SR3NET01BD Zelio Logic Ethernet Communication Module, IP20/IP40, 0.11 kg
Telemecanique Sensors SR3NET01BD Zelio Logic Ethernet Communication Module, IP20/IP40, 0.11 kg
- MPN: SR3NET01BD
- PPN: SCH-SR3NET01BD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$338.71/ EA
Description
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The ethernet communication module is suitable for SR3 24V DC smart relay. It is a communication module with 10/100BASE-T ethernet communication port support. It is furnished with RJ45 connector for electrical connection. It is an IP20 and IP40 rated product. It weighs 0.11kg. This product is certified by GOST, C-Tick, UL, GL and CSA. It meets EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-3, EN/IEC 60068-2-6 Fc and EN/IEC 60068-2-27 Ea standards. This product is compatible with all modules with 24V supply SR3 BxxxBD. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
Specifications
Environment
- Product Certifications
- CSA || C-Tick || GOST || UL
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Environmental Characteristic
- EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
- Pollution Degree
- 2 IEC 61131-2
- Relative Humidity
- 95-95 % without condensation or dripping water
- Operating Altitude
- 2000 m
StandardsIEC 61000-4-4 level 3 || IEC 61000-4-5 || IEC 61000-4-2 level 3 || IEC 61000-4-3 || IEC 60068-2-6 Fc || IEC 60068-2-27 Ea
Ambient Air Temperature For Operation-20-40 °C IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Ip Degree Of ProtectionIP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Storage-40-70 °C
Maximum Altitude Transport3048 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060406EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI0604006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Programming Language
- FBD
- Net Weight
- 0.11 kg
- Connections - Terminals
- screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) semi-solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) solid || screw terminals, 2 x 0.25...2 x 1.5 mm² AWG 23...AWG 16) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
- Tightening Torque
- 0.5 N.m
- Product Compatibility
- all modules with 24 V supply SR3 B...BD
Electrical Connection1 connector RJ45
Communication Port Support10/100BASE-T
Communication Port ProtocolEthernet
Local Signallingcommunication (LK/ACT 10/100) 1 LED || status (STS) 1 LED
Specifications
- Range Of Product
- Zelio Logic
Product Or Component TypeEthernet communication module
