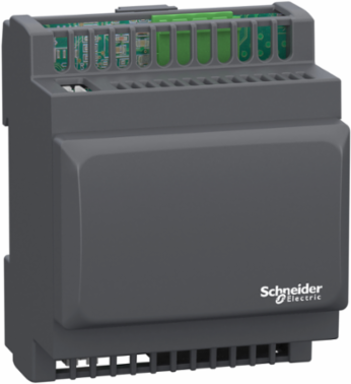

Schneider Electric TM171EO15R Modicon M171 Expansion Module, 15 IO, 140 mm Width, HVAC Solutions
- MPN: TM171EO15R
- PPN: SCH-TM171EO15R
- UNSPSC: 32151705
CAD
$126.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This I/O expansion module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This additional I/O module offers 6 digital inputs, 3 analog inputs, 4 digital outputs, and 2 analog outputs. It has one port for LAN expansion bus. This module offers Additional I/O to the M171 controller. DIs are volt-free, and AIs are NTC. DOs are 2A, 250Vac), AOs are open collectors PWM/PPM. It measures 70.2mm wide, 61.6mm deep, 87mm high, and weighs 0.385kg. This controller is designed for HVAC solutions. It is certified by CE, CSA, EAC, RCM, and CuRus. It is compatible with M171 optimized controllers. It is sold in a 1-piece package. It mounts on 35mm DIN rail. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Features
- Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
- Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
- All of the features and functions you need to design and build machines more profitably are already embedded
- Application Function Blocks reduce energy consumption and help to improve system efficiency
- Stay connected everywhere with multiple BMS connectivity and web server embedded
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|---|
| Depth | 61.6 mm |
| Weight | 300 g |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 12...24 V +/- 20 % AC/DC24 V +/- 20 % DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Signalling | 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable |
| Carbon Footprint Of The Distribution Phase A4 | 0.1115051918043258, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.004696289541949586, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 124 kg CO2 eq., 124.34759928341589 |
| Local Publishable Date | 2026-01-12 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Contacts Usage | volt-free contacts |
| Number Of Port | 1 LAN expansion bus |
| Power Consumption In W | 18 W 24...48 V AC/DC |
| Product Or Component Type | additional I/O module |
| Range Of Product | Modicon M171/M172 |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 135 kg CO2 eq. |
| Upgradeability | Yes |
| Database Version | 2024-01 |
| Height Nominal | 110 mm |
| Input/Output Number | 3 analog input2 analog output6 digital input4 digital output |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To control simple and compact machines for HVAC applications (e.g. fans and water pumps) for a 100% of the time for 10 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 262.8 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Certificate Agency | cURus, EAC, CSA, CE |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.5216254315182522 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 10 kg CO2 eq., 10.41812723959728 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1710004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Display Type | Without Display |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | HVAC and pumping solution |
| Realtime Clock | built-in clock at -10-55 °C |
| Sensor Power Supply | 12-12 V DC 85 mA |
| Sustainable Packaging | Yes |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 140 mm |
| Number Of Inputs/Outputs | 15 |
| Customs Code | 8537109160 |
| Packaging Weight In G | 124.5 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C UL 60730-1, -10-55 °C UL 60730-1-10-55 °C UL 60730-1, -10-55 °C UL 60730-1 |
|---|---|
| Directives | 2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1710004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2025-11-25 |
| Psr Version | No PSR |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 135.4035534358777 |
| Environmental Disclosure | ENVPEP1710004EN |
| Ip Degree Of Protection | IP20 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1710004EN |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | additional I/O module |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC001421 |
|---|---|
| ETIM 10 | EC001421 |
| ETIM 9 | EC001421 |
|---|
Output Attributes
| Analogue Output Number | 1 PWM/PPM 20 kHz, 12 V, 35 mA, 2 |
|---|---|
| Discrete Output Number | 1 open collector3 relay outputs SPST with same common |
| Discrete Output Current | 2 A relay |
|---|
Input Attributes
| Analogue Input Type | voltage 0...5 V ratiometric), voltage 0...10 VNTC temperature probe - 50...100 °C 0.1 °Ccurrent 0...20 mA/4...20 mA, voltage 0...1 V |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Analogue Input Number | 3 analog input NTC |
|---|---|
| Discrete Input Number | 6 |
