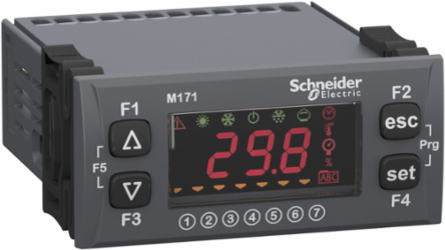

Schneider Electric TM171OFM22R Modicon M171 HVAC Controller, 140mm x 61.6mm x 110mm, 22 I/O
- MPN: TM171OFM22R
- PPN: SCH-TM171OFM22R
CAD
$265.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 100V to 240V, ±10% AC. It is an IP20 rated product. Its dimensions are 140mm (width) x 61.6mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Italy, Sweden, United States |
|---|
| Depth | 61.6 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Number Of Port | 1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link) |
| [Us] Rated Supply Voltage | 12..., 24 V |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Contacts Usage | volt-free contacts |
| Product Or Component Type | controller |
| Range Of Product | Modicon M171/M172 |
| Sensor Power Supply | 12-12 V DC 85 mA5-5 V DC 20 mA |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 140 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Certificate Agency | EAC, CSA, RCM, CE, cURus |
| Input/Output Number | 5 analog output6 digital input, 5 analog input, 6 digital output |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | HVAC and pumping solution |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Height Nominal | 110 mm |
| Number Of Inputs/Outputs | 22 |
| Package Weight(Lbs) | 162.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
General Attributes
| Product Or Component Type | controller |
|---|
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Analogue Output Number | 3 voltage 0...10 V, 2 PWM/PPM 20 kHz, 12 V, 35 mA |
|---|---|
| Discrete Output Number | 1 open collector3 relay outputs SPST with same common2 relay outputs SPST with independent common |
| Discrete Output Current | 2 A relay |
|---|
Input Attributes
| Analogue Input Type | voltage 0...5 V ratiometric), voltage 0...10 VNTC temperature probe - 50...100 °C 0.1 °Ccurrent 0...20 mA/4...20 mA, voltage 0...1 V |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Analogue Input Number | 2 configurable3 analog input NTC |
|---|---|
| Discrete Input Number | 6 |
