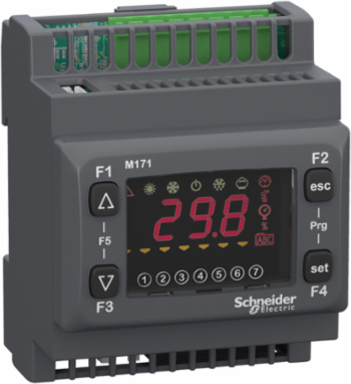

Schneider Electric TM171OD22R Modicon Logic Controller 22 I/O, 3 Voltage Outputs, 70.2 mm Width
- MPN: TM171OD22R
- PPN: SCH-TM171OD22R
CAD
$267.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric TM171OD22R Modicon M171 Controller is engineered for efficiency in automation and control applications, accommodating 22 input/output channels for versatile connectivity. With three voltage outputs and a user-friendly 4-segment display, this controller simplifies monitoring and management of complex systems. Its robust design and reliable performance make it an essential component for professionals looking to optimize their PLC and HMI solutions in data acquisition tasks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy, Sweden
Depth61.6 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Local Signalling
- 6 LEDs (red)5 LEDs (green), 7 LEDs (amber) for programmable
- Input/Output Number
- 5 analog output6 digital input, 5 analog input, 6 digital output
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5 kg CO2 eq., 0.5216254315182522
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.41812723959728
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1710004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Display Type
- four 7-segment display units
- Number Of Port
- 1 LAN expansion bus
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- HVAC and pumping solution
- Realtime Clock
- built-in clock at -20-55 °C
- Sensor Power Supply
- 12-12 V DC 85 mA5-5 V DC 20 mA
- Sustainable Packaging
- Yes
- Updatability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control simple and compact machines for HVAC applications (e.g. fans and water pumps) for a 100% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 350.4
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 70.2 mm
- Number Of Inputs/Outputs
- 22
- Package Weight(Lbs)
- 266.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Certificate AgencycURus, EAC, CE, CSA
Carbon Footprint Of The Distribution Phase [A4]0.1115051918043258, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.004696289541949586, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]166 kg CO2 eq., 165.7967990445545
Local Publishable Date2026-01-12
Stocking FlagN
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Contacts Usagevolt-free contacts
Mounting SupportDIN rail
Overvoltage CategoryII
Product Or Component Typecontroller
Range Of ProductModicon M171/M172
ReturnabilityYes
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint177 kg CO2 eq.
UpgradeabilityYes
Pep CodeENVPEP1710004EN
Pep Verification Date2025-11-25
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model - Use [B6]Electricity origin
Height Nominal87 mm
[Us] Rated Supply Voltage24 V12...24 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109160
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C UL 60730-1, -20-55 °C UL 60730-1-20-55 °C UL 60730-1, -20-55 °C UL 60730-1
- Directives
- 2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1710004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Relative Humidity
- 10-90 % non-condensing
- Pep Verification Date
- 2025-11-25
- Psr Version
- No PSR
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint176.8527531970163
Environmental DisclosureENVPEP1710004EN
Ip Degree Of ProtectionIP20
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1710004EN
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- controller
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Analogue Output Number
- 3 voltage 0...10 V, 2 PWM/PPM 20 kHz, 12 V, 35 mA
- Discrete Output Number
- 1 open collector3 relay outputs SPST with same common2 relay outputs SPST with independent common
Discrete Output Current2 A relay
Input Attributes
- Analogue Input Type
- voltage 0...5 V ratiometric), voltage 0...10 VNTC temperature probe - 50...100 °C 0.1 °Ccurrent 0...20 mA/4...20 mA, voltage 0...1 V
- Discrete Input Logic
- sink or source (positive/negative)
Analogue Input Number2 configurable3 analog input NTC
Discrete Input Number6
