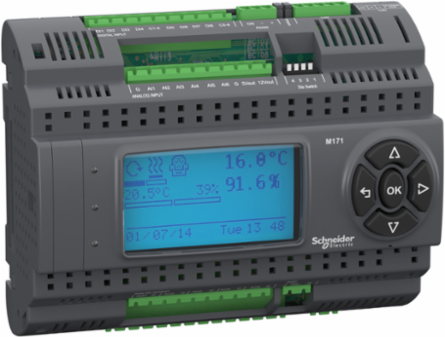

Schneider Electric TM171PDM27S Modicon M171 Controller with 27 I/O, 24V DC, LCD Display
- MPN: TM171PDM27S
- PPN: SCH-TM171PDM27S
CAD
$673.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Modicon Controller from Schneider Electric is engineered to elevate your automation and control systems with its robust design and versatile functionality. Featuring 27 I/O points along with six analog inputs, this controller is adept at managing a variety of tasks seamlessly while employing the reliable Modbus communication protocol. Ideal for complex automation projects, it operates on a 24V DC power supply, ensuring efficient and stable performance in demanding industrial environments. With this controller, expect precision and reliability to meet the needs of modern PLC, HMI, and data acquisition applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Italy, Sweden |
|---|
| Depth | 10 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Signalling | 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable |
| Carbon Footprint Of The Distribution Phase [A4] | 0.2118598644282191, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.004797190078512364, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 746 kg CO2 eq., 746.0855957004956 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Display Type | LCD display - 128 x 64 pixels |
| Number Of Port | 1 CAN port - screw terminal block1 USB type A - USB type A female1 USB type mini B - USB device port Mini-B1 RS485 - screw terminal block Modbus serial link) |
| Power Consumption In W | 5 W 24...48 V AC/DC |
| Product Or Component Type | programmable controllers |
| Range Of Product | Modicon M171/M172 |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 792 kg CO2 eq. |
| Upgradeability | Yes |
| Pep Code | ENVPEP1710005EN |
| Pep Verification Date | 2025-12-12 |
| Psr Version | No PSR |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Italy, IT |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Asia Pacific, APAC |
| Height Nominal | 96 mm |
| [Us] Rated Supply Voltage | 24 V +/- 20 % AC/DC48 V +/- 20 % DC |
| Number Of Inputs/Outputs | 27 |
| Package Weight(Lbs) | 509.0 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Certificate Agency | CE, cURus, EAC, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.350286299571271 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 44 kg CO2 eq., 44.2853833873189 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1710005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Mounting Support | flush mounting |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | HVAC and pumping solution |
| Realtime Clock | built-in clock at -10-55 °C |
| Sensor Power Supply | 5-5 V DC 50 mA12-12 V DC 150 mA |
| Sustainable Packaging | No |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control simple and compact machines for HVAC/R applications, e.g. fans and water pumps through TRIAC high voltage output, with a power of 18W for a 100% of the time for 10 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1576.8 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Width Nominal | 160 mm |
| Input/Output Number | 6 analog input5 analog output8 digital input7 digital output1 high-speed counter |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C UL 60730-1, -10-55 °C UL 60730-1-10-55 °C UL 60730-1, -10-55 °C UL 60730-1 |
|---|---|
| Directives | 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1710005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2025-12-12 |
| Psr Version | No PSR |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 791.9379224418925 |
| Environmental Disclosure | ENVPEP1710005EN |
| Ip Degree Of Protection | IP20 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1710005EN |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | programmable controllers |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Analogue Output Number | 3 voltage/current 4...20 mA or 0...10 V, 2 open collector 1 kHz, 12 V, 35 mA |
|---|---|
| Discrete Output Current | 8 A relay SPDT5 A relay SPST0.5 A solid state, isolated |
| Discrete Output Number | 3 relay outputs SPST with same common, 2 relay outputs SPDT with independent common2 solid state, isolated SSR with same common |
|---|
Input Attributes
| Analogue Input Type | voltage 0...5 V ratiometric)current 4...20 mAimpedance 0...1500 hOhm, impedance 0...300 daOhm, NTC temperature probe - 50...110 °C 0.1 °C extended), voltage 0...10 VPt 1000 temperature probe - 200...800 °C 0.1 °C, NTC temperature probe - 40...150 °C 0.1 °C |
|---|---|
| Discrete Input Current | 2.5 mA |
| Discrete Input Number | 8 |
| Input Impedance | 20 kOhm |
| Analogue Input Number | 2 analog input NTC4 configurable |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Discrete Input Voltage | 24 V AC/DC48 V DC |
Batteries & Runtime Attributes
| Removable Battery | No |
|---|
