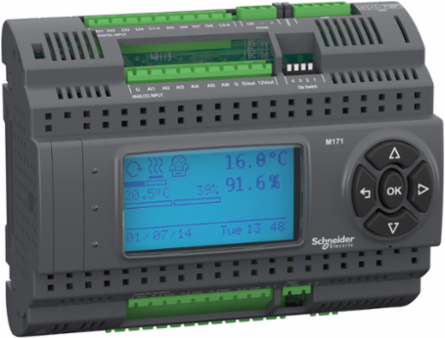

Schneider Electric TM171PDM27R Modicon Controller with 27 I/O, LCD Display, IP20 Protection
- MPN: TM171PDM27R
- PPN: SCH-TM171PDM27R
CAD
$625.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 100V to 240V, ±10% AC. It is an IP20 rated product. Its dimensions are 160mm (width) x 10mm (depth) x 96mm (height). It weighs 0.32kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Italy, Sweden
Depth10 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Local Signalling
- 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2118598644282191, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.004797190078512364, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 746 kg CO2 eq., 746.0855957004956
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Display Type
- LCD display - 128 x 64 pixels
- Number Of Port
- 1 CAN port - screw terminal block1 USB type A - USB type A female1 USB type mini B - USB device port Mini-B1 RS485 - screw terminal block Modbus serial link)
- Power Consumption In W
- 5 W 24...48 V AC/DC
- Product Or Component Type
- programmable controllers
- Range Of Product
- Modicon M171/M172
- Returnability
- No
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 792 kg CO2 eq.
- Upgradeability
- Yes
- Pep Code
- ENVPEP1710005EN
- Pep Verification Date
- 2025-12-12
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Italy, IT
- Energy Model - Use [B6]
- Electricity origin
- Height Nominal
- 96 mm
- [Us] Rated Supply Voltage
- 24 V +/- 20 % AC/DC48 V +/- 20 % DC
- Number Of Inputs/Outputs
- 27
- Package Weight(Lbs)
- 505.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Certificate AgencyCE, CSA, cURus, EAC
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.350286299571271
Carbon Footprint Of The Manufacturing Phase [A1 To A3]44 kg CO2 eq., 44.2853833873189
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1710005EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Mounting Supportflush mounting
Overvoltage CategoryII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific ApplicationHVAC and pumping solution
Realtime Clockbuilt-in clock at -10-55 °C
Sensor Power Supply5-5 V DC 50 mA12-12 V DC 150 mA
Sustainable PackagingNo
UpdatabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control simple and compact machines for HVAC/R applications, e.g. fans and water pumps through TRIAC high voltage output, with a power of 18W for a 100% of the time for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1576.8
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal160 mm
Input/Output Number6 analog input5 analog output8 digital input7 digital output1 high-speed counter
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109160
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C UL 60730-1, -10-55 °C UL 60730-1-10-55 °C UL 60730-1, -10-55 °C UL 60730-1
- Directives
- 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1710005EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Relative Humidity
- 10-90 % non-condensing
- Pep Verification Date
- 2025-12-12
- Psr Version
- No PSR
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint791.9379224418925
Environmental DisclosureENVPEP1710005EN
Ip Degree Of ProtectionIP20
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1710005EN
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- programmable controllers
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Analogue Output Number
- 3 voltage/current 4...20 mA or 0...10 V, 2 open collector 1 kHz, 12 V, 35 mA
- Discrete Output Current
- 8 A relay SPDT5 A relay SPST
Discrete Output Number3 relay outputs SPST with same common, 2 relay outputs SPST with same common2 relay outputs SPDT with independent common
Input Attributes
- Analogue Input Type
- voltage 0...5 V ratiometric)current 4...20 mAimpedance 0...1500 hOhm, impedance 0...300 daOhm, NTC temperature probe - 50...110 °C 0.1 °C extended), voltage 0...10 VPt 1000 temperature probe - 200...800 °C 0.1 °C, NTC temperature probe - 40...150 °C 0.1 °C
- Discrete Input Current
- 2.5 mA
- Discrete Input Number
- 8
- Input Impedance
- 20 kOhm
Analogue Input Number2 analog input NTC4 configurable
Discrete Input Logicsink or source (positive/negative)
Discrete Input Voltage24 V AC/DC48 V DC
Batteries & Runtime Attributes
- Removable Battery
- No
