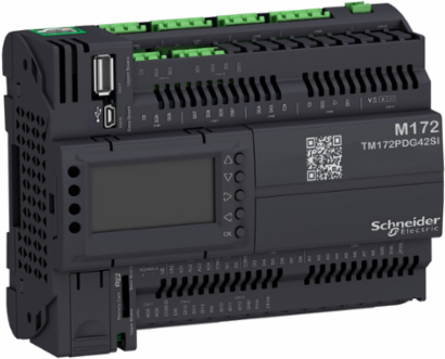

Schneider Electric TM172PDG42SI Modicon M171/M172/M173 Controller, 42 I/O, 24V, IP20, HVAC
- MPN: TM172PDG42SI
- PPN: SCH-TM172PDG42SI
CAD
$778.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 12 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 12 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Italy, United States |
|---|
| Depth | 60.5 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Signalling | 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power |
| Mounting Support | panel mounting with accessory, DIN rail |
| Certificate Agency | EAC, CE, cURus, CSA, RCM |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1709746274332996, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.032562507831687966, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 580 kg CO2 eq., 580.288796655941 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | HVAC control |
| Realtime Clock | built-in clock, clock drift <= 30 s/month at -20-65 °C |
| Sensor Power Supply | 5-5 V DC 50 mA supplied by the controller24-24 V DC 150 mA supplied by the controller |
| Sustainable Packaging | No |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1226.4 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Width Nominal | 144 mm |
| Number Of Inputs/Outputs | 42 |
| Package Weight(Lbs) | 438.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Measurement Accuracy | NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °CNTC NK103 Beta 3977 110...137 °C +/- 1.9 °CNTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 200...-100 °C +/- 10 °CPt 1000 - 100...-50 °C +/- 2.5 °CPt 1000 - 50...100 °C +/- 1.5 °CPt 1000 100…400 °C +/- 2.4 °C, Pt 1000 400...850 °C +/- 10 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit0...20 mA, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...1500 hOhm +/- 8.5 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm |
| Number Of Port | 1 CAN port - screw terminal block1 USB type A - USB type A female1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver) |
| Input/Output Number | 12 analog input6 analog output, 12 digital input, 12 digital output |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.1345125848691335 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 40 kg CO2 eq., 40.498615970754074 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1709014EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Display Type | Backlit LCD - 128 x 64 pixels |
| Power Consumption In W | 14 W 24 V AC/DC |
| Product Or Component Type | programmable controllers |
| Range Of Product | Modicon M171/M172 |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 622 kg CO2 eq. |
| Upgradeability | Yes |
| Pep Code | ENVPEP1709014EN |
| Pep Verification Date | 2025-09-01 |
| Psr Version | No PSR |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Italy, IT |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Asia Pacific, APAC |
| Height Nominal | 110 mm |
| [Us] Rated Supply Voltage | 24 V +/- 10 % AC20...38 V DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-55 °C horizontal, -20-55 °C horizontal-20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-55 °C horizontal |
|---|---|
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1709014EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % non-condensing |
| Pep Verification Date | 2025-09-01 |
| Psr Version | No PSR |
| Ambient Air Temperature For Storage | -30-70 °C, -30-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 622.1254623468293 |
| Environmental Disclosure | ENVPEP1709014EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1709014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | programmable controllers |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Analogue Output Number | 4 voltage 0...10 V, 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz) |
|---|---|
| Discrete Output Number | 2 relay outputs SPDT with independent common, 3 relay outputs SPST with same common, 5 relay outputs SPST with same common, 2 solid state, isolated SPST with independent common |
| Discrete Output Current | 3 A relay SPDT, 3 A relay SPST0.5 A solid state, isolated |
|---|
Input Attributes
| Analogue Input Type | impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...300 daOhm 1 daOhm 2 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhmvoltage 0...10 V 1 digit > 10 kOhm, NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended), current 0...20 mA/4...20 mA 1 digit < 150 OhmPTC temperature probe - 55...150 °C 0.1 °C 2 kOhm, voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric)Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm, direct input > 10 kOhm |
|---|---|
| Discrete Input Current | 2.5 mA |
| Discrete Input Number | 12 |
| Input Impedance | 10 kOhm |
| Analogue Input Number | 12 configurable by pair |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Discrete Input Voltage | 24 V AC/DC |
Batteries & Runtime Attributes
| Removable Battery | Yes |
|---|
