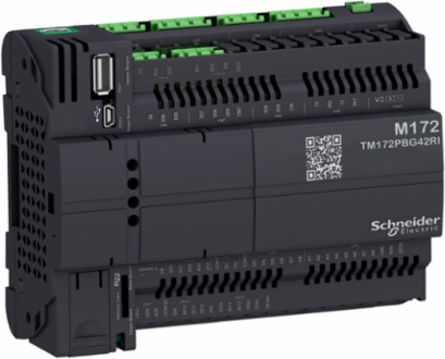

Schneider Electric TM172PBG42RI Modicon M171/M172 Controller, 42 I/O, Ethernet, 24V AC/DC, 0.385kg
- MPN: TM172PBG42RI
- PPN: SCH-TM172PBG42RI
CAD
$693.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 12 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 12 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Features
- The Schneider Electric TM172PBG42RI features a robust high-density layout of 42 inputs/outputs, including 12 digital inputs, 12 digital outputs (featuring versatile SPDT and SPST relays), 12 analog inputs, and 6 analog outputs. This expansive built-in I/O capacity allows you to manage complex chillers, heat pumps, or air handling units directly from a single hardware footprint, completely eliminating the immediate need and added cost of external expansion modules.
- Equipped with an onboard RJ45 Ethernet port, 2 RS485 serial ports, and a dedicated CAN port, this controller supports industrial-standard native BACnet (IP & MS/TP) and Modbus (TCP) protocols out of the box. Whether you are retrofitting an older mechanical room or deploying a modern smart facility, it ensures effortless plug-and-play communication with your existing SCADA, BMS, or centralized monitoring architectures.
- The 12 analog inputs are highly flexible and configurable by pair, natively accepting standard NTC (103AT-2 or NK103), PTC, and Pt1000 temperature probes, as well as universal 0 10V, 0 5V, and 4 20mA current loops. This wide-ranging sensor interoperability means you can hook up your preferred humidity transmitters, pressure transducers, and ambient sensors without needing signal conditioners or specialized hardware variants.
- Designed as a compact "blind" performance variant, this unit measures just 144mm in width and occupies minimal real estate on standard 35mm DIN rails. The screenless design reduces unauthorized parameter tampering on the plant floor, while four localized diagnostic LEDs provide immediate troubleshooting status for power and programmable logic health at a quick glance.
- Engineered for the EcoStruxure Machine Expert - HVAC programming environment, this controller supports intuitive functional block diagrams and standard IEC 61000 languages to streamline your engineering workflow. It includes built-in USB Type-A and Mini-B ports, enabling rapid on-site firmware updates, application uploads, and local commissioning directly from your field laptop.
- Built to demanding operational standards, this IP20-rated controller carries full CE, CSA, cURus, RCM, and EAC industrial certifications, ensuring compliance with strict global safety and electrical codes. It is engineered to perform reliably across a wide operating temperature range of -20 C to 65 C, providing long-term, continuous uptime in demanding mechanical rooms, rooftop enclosures, and industrial pumping stations.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Italy, United States |
|---|
| Depth | 60.5 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Signalling | 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power |
| Mounting Support | panel mounting with accessory, DIN rail |
| Certificate Agency | EAC, CE, cURus, CSA, RCM |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1575940044167805, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.030014137653555865, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 580 kg CO2 eq., 580.288796655941 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Overvoltage Category | II |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | HVAC control |
| Realtime Clock | built-in clock, clock drift <= 30 s/month at -20-65 °C |
| Sensor Power Supply | 5-5 V DC 50 mA supplied by the controller24-24 V DC 150 mA supplied by the controller |
| Sustainable Packaging | No |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1226.4 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Width Nominal | 144 mm |
| Number Of Inputs/Outputs | 42 |
| Package Weight(Lbs) | 407.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Measurement Accuracy | NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °CNTC NK103 Beta 3977 110...137 °C +/- 1.9 °CNTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 200...-100 °C +/- 10 °CPt 1000 - 100...-50 °C +/- 2.5 °CPt 1000 - 50...100 °C +/- 1.5 °CPt 1000 100…400 °C +/- 2.4 °C, Pt 1000 400...850 °C +/- 10 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit0...20 mA, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...1500 hOhm +/- 8.5 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm |
| Number Of Port | 1 CAN port - screw terminal block1 USB type A - USB type A female1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver) |
| Input/Output Number | 12 analog input6 analog output, 12 digital input, 12 digital output |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.0457246434445926 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 37 kg CO2 eq., 37.329159068695056 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1709014EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Display Type | Without Display |
| Power Consumption In W | 14 W 24 V AC/DC |
| Product Or Component Type | programmable controllers |
| Range Of Product | Modicon M171/M172 |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 619 kg CO2 eq. |
| Upgradeability | Yes |
| Pep Code | ENVPEP1709014EN |
| Pep Verification Date | 2025-09-01 |
| Psr Version | No PSR |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Italy, IT |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Asia Pacific, APAC |
| Height Nominal | 110 mm |
| [Us] Rated Supply Voltage | 24 V +/- 10 % AC20...38 V DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-60 °C horizontal UL 60730-1, -20-60 °C horizontal UL 60730-1, -20-60 °C horizontal UL 60730-1-20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-60 °C horizontal UL 60730-1 |
|---|---|
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1709014EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % non-condensing |
| Pep Verification Date | 2025-09-01 |
| Psr Version | No PSR |
| Ambient Air Temperature For Storage | -30-70 °C, -30-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 618.851288510151 |
| Environmental Disclosure | ENVPEP1709014EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1709014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | programmable controllers |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Analogue Output Number | 4 voltage 0...10 V, 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz) |
|---|---|
| Discrete Output Number | 2 relay outputs SPST with independent common, 2 relay outputs SPDT with independent common, 3 relay outputs SPST with same common, 5 relay outputs SPST with same common |
| Discrete Output Current | 3 A relay SPDT, 3 A relay SPST |
|---|
Input Attributes
| Analogue Input Type | impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...300 daOhm 1 daOhm 2 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhmvoltage 0...10 V 1 digit > 10 kOhm, NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended), current 0...20 mA/4...20 mA 1 digit < 150 OhmPTC temperature probe - 55...150 °C 0.1 °C 2 kOhm, voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric)Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm, direct input > 10 kOhm |
|---|---|
| Discrete Input Current | 2.5 mA |
| Discrete Input Number | 12 |
| Input Impedance | 10 kOhm |
| Analogue Input Number | 12 configurable by pair |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Discrete Input Voltage | 24 V AC/DC |
Batteries & Runtime Attributes
| Removable Battery | Yes |
|---|
