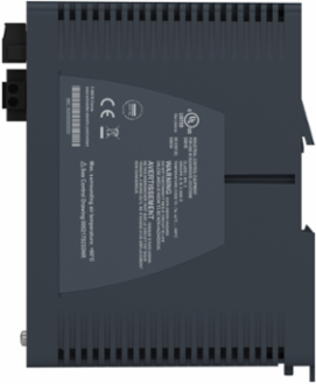

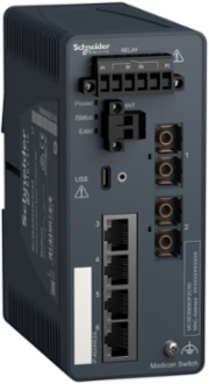

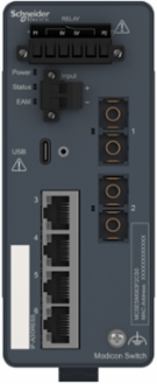

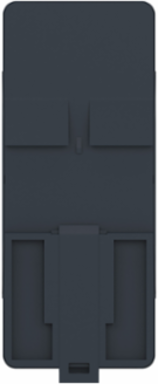

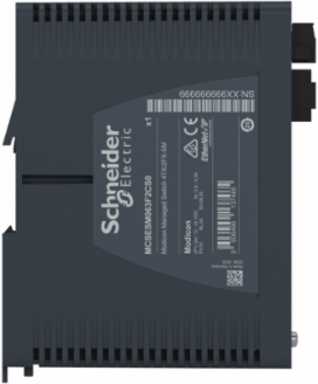

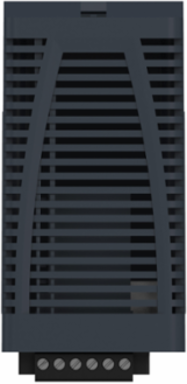

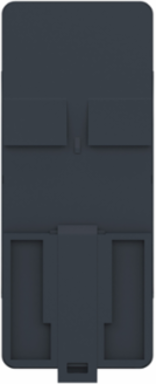

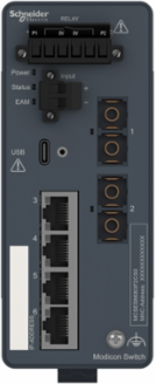

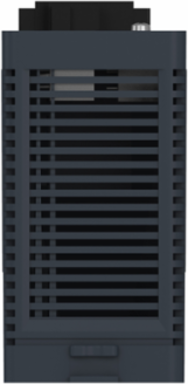

Schneider Electric MCSESM063F2CS0 Modicon Managed Network Switch, 4-Port Copper & 2-Port Fiber Optic

Modicon Managed Network Switch, 4-Port Copper & 2-Port Fiber Optic
Modicon Managed Network Switch, 4-Port Copper & 2-Port Fiber Optic
Modicon Managed Network Switch, 4-Port Copper & 2-Port Fiber Optic
Modicon Managed Network Switch, 4-Port Copper & 2-Port Fiber Optic
Modicon Managed Network Switch, 4-Port Copper & 2-Port Fiber Optic
  • MPN: MCSESM063F2CS0
  • PPN: SCH-MCSESM063F2CS0

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3432.17/ EA

Description

The Modicon Managed Network Switch from Schneider Electric is designed to enhance the efficiency and reliability of industrial networks. Featuring a versatile configuration with four copper ports and two fiber optic ports, this switch facilitates robust connectivity for various devices in a streamlined manner. Engineered for managed network environments, it ensures optimal performance and seamless communication across your automation infrastructure, making it an essential component for any modern industrial setting.

Specifications

Product Type
Ethernet TCP/IP managed switch
Maximum Cable Distance
100 m copper cable
Attenuation
0-16 dB (9/125 µm)
Cybersecurity Features
Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner
Supply Voltage
12-24 V DC
Operating Temperature
0 to 60 °C (32 to 140 °F)
Dimensions
57 mm (W) x 142.8 mm (H) x 117.6 mm (D)
Relative Humidity
1-95% non-condensing
Standards
UL 61010-2-201, EN/IEC 61131-2, EN/IEC 62368-1
Mercury Free
Yes
China RoHS Regulation
Compliant
Warranty
18 months
Ports4 copper (10/100BASE-TX), 2 fiber optic (100BASE-FX)
Optic Fiber Length32.5 km (20.19 miles) 9/125 µm single mode
Communication ProtocolsEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, SFTP, SCP, LLDP, Telnet, SNTP
Power Consumption7 W
Supply Voltage Limits9.6-32 V DC SELV
Mounting Support35 mm symmetrical DIN rail
Net Weight0.42 kg
Ingress ProtectionIP30
CertificationsCE, UL, RCM, DNV, ATEX
REACH RegulationContains Substances of Very High Concern above threshold
EU RoHS DirectivePro-active compliance (out of EU RoHS legal scope)
Country of OriginGermany
