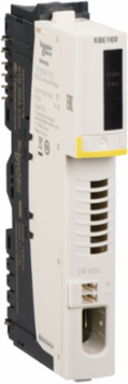

Schneider Electric STBXBE1300K Modicon STB Bus Extension Kit, 5.25V Logic Bus, IP20
- MPN: STBXBE1300K
- PPN: SCH-STBXBE1300K
- UNSPSC: 32151601
CAD
$251.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Modicon STB Bus Extension Kit by Schneider Electric is designed to enhance your automation and control systems with its robust performance and reliable connectivity. Operating on a 5.25V logic bus, this kit ensures efficient communication between components, making it an excellent choice for PLC, HMI, and data acquisition applications. With an IP20 rating, it provides protection against solid objects, making it suitable for installation in less demanding environments while still maintaining essential functionality in your control processes. This bus extension kit is an essential addition for those looking to expand their modular systems with durable and effective solutions.
Features
- IP20 degree of protection
- CE approved
- FM, UL and CSA certified
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Depth | 70 mm |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 24 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Kit Composition | STBXBE1300 BOS module, STBXTS2120, 2-terminal spring clamp connector, STBXBA2300 size 2 base, STBXTS1120, 2-terminal screw type connector |
| Certificate Agency | FM Class 1 Division 2, UL, CSA |
| Local Publishable Date | 2026-07-27 |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1950 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Electrical Connection | 2 pins for removable connector power supplyFirewire interface |
| Marking | CE |
| Overvoltage Category | II |
| Product Or Component Type | BOS internal bus extension kit |
| Returnability | No |
| Supply Circuit Type | DC |
| Sustainable Packaging | No |
| Height Nominal | 120 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Vibration Resistance | +/-0.35 mm 10-58 Hz, +/-0.35 mm 10-58 Hz3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz, +/-0.35 mm 10-58 Hz |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electromagnetic Compatibility | immunity to electromagnetic interference IEC 61131-2 |
| Mounting Location | beginning of extension segment |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon STB distributed I/O solution |
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Supply Voltage Limits | 19.2-30 V |
| Dc Supply Voltage | 24-24 V |
| Width Nominal | 18.4 mm |
| Customs Code | 8536904000 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | standard STB modules |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Operating Altitude | <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m) |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Ip Degree Of Protection | IP20 conforming to IEC 61131-2 class 1 |
| Packaging Without Single Use Plastic | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
General Attributes
| Product Or Component Type | BOS internal bus extension kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001600 |
|---|---|
| ETIM 10 | EC001600 |
| ETIM 9 | EC001600 |
|---|
Output Attributes
| Output Voltage | 5.25 V +/- 0.21 % logic bus |
|---|---|
| Power Supply Output Current | 1.2 A |
| Output Voltage Type | DC |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Current | 400 mA |
|---|
