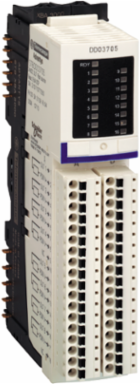

Schneider Electric STBDDO3705KS ectric STBDDO3705 Modicon STB Digital Output Kit, 24V DC, 16 Outputs, IP20
- MPN: STBDDO3705KS
- PPN: SCH-STBDDO3705KS
CAD
$418.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBDDO3705 module, STBXBA3000 base and STBXTS1180, 18-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, United States
Depth70 mm
Complementary Attributes
- Maximum Leakage Current
- 0.4 mA 30 V DC at state 0
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Kit Composition
- STBDDO3705 module, STBXBA3000 base, STBXTS1180, 18-terminal screw type connector
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0270945, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0087726
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 31 kg CO2 eq., 31.4199
- Local Publishable Date
- 2024-02-10
- Stocking Flag
- Y
- Device Type
- Automation - Distributed inputs/ouputs
- Traceability
- Yes
- Use Carbon Footprint
- 31.4199
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electrical Connection
- screw terminal
- Hot Swapping Fallback
- no for basic NIMs
- Network Type
- DC
- Product Availability
- Stock - Normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon STB distributed I/O solution
- Shock Resistance
- 30 gn 11 msIEC 88 reference 2-27
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Typical Current Consumption
- 135 mA 5 V DC
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Digital Outputs Configurable
- false
- Pep Code
- ENVPEP1511012EN
- Pep Verification Date
- 2015-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor and control industrial automation process during 10 years 100% of the time
- Energy Consumption On Product Lifetime, In Kwh
- 53.217
- Energy Model - Installation [A5]
- Electricity Mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; < 1kV; EU-27
- Width Nominal
- 128.3 mm
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 210.0 g
- Warranty (In Months)
- 18
- Air Pollution (M3) End Of Life [C1-c4]
- 2.1759
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 323.676
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 150.39
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 0.3831
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 2.5218
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 4.365
- Water Pollution (M3) Manufacturing [A1-a3]
- 1633.35
- Water Pollution (M3) Operational Energy Use [B6]
- 1318.3965
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Certificate AgencyUL, CSA, UL, CSA, FM Class 1 Division 2
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0625695, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 10.95105
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511012EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Market SegmentationIndustrial
Device ApplicationIndustrial Application
Front Installation Possiblefalse
MarkingCE
Optical Interface Presentfalse
Product Or Component Typebasic digital output kit
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityYes
Software VersionEIME v5.5
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint42 kg CO2 eq.
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Fieldbus Connection Over Separate Bus Coupler Possibletrue
Database Version2015-04
Pcr VersionPEP-PCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
Height Nominal13.9 mm
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Rack-assembly Possibletrue
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Manufacturing [A1-a3]694.245
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]135.804
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]31.4199
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]152.91
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]636.5385
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle4.365
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]146.025
Water Pollution (M3) Distribution [A4]4.4556
Environment Attributes Main
- Product Compatibility
- power distribution module STBPDT3100/3105, I/O base STBXBA3000
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1511012EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Pep Verification Date
- 2015-11-01
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint42.4693866
Environmental DisclosureENVPEP1511012EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1511012EN
Pcr VersionPEP-PCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- basic digital output kit
Range Of ProductModicon STB distributed I/O solution
ETIM
- ETIM 8
- EC001599
ETIM 9EC001599
Output Attributes
- Discrete Output Number
- 16 solid state at 24 V DC, 16
- Discrete Output Current
- 500 mA
- Discrete Output Type
- solid state
- Discrete Output Voltage Type
- DC
Response Time On Output< 10 ms off to on, < 10 ms off to on, < 10 ms on to off, < 10 ms on to off< 10 ms off to on, < 10 ms off to on, < 10 ms on to off
Discrete Output Logicpositive logic (source)
Discrete Output Voltage24 V DCsolid state
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
