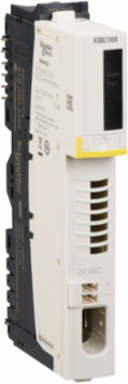

Schneider Electric STBXBE1100K EOS Internal Bus Extension Kit for Modicon STB, IP20, Mercury Free
- MPN: STBXBE1100K
- PPN: SCH-STBXBE1100K
- UNSPSC: 32151601
CAD
$180.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The EOS Internal Bus Extension Kit from Schneider Electric is designed specifically for use with Modicon STB systems, enhancing your automation and control capabilities. This high-quality extension kit ensures seamless connectivity and reliability within your PLC, HMI, and data acquisition setups. With an IP20 rating, it guarantees adequate protection in various environments, while its mercury-free composition emphasizes a commitment to safety and sustainability. Optimizing performance in industrial applications, this kit is an essential component for any comprehensive control system.
Features
- IP20 degree of protection
- CE approved
- FM, UL and CSA certified
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Depth | 125 mm |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 24 V DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Kit Composition | STBXBE1100 module, STBXBA2400 size 2 base, STBXTS2120, 2-terminal spring clamp connector, STBXTS1120, 2-terminal screw type connector |
| Vibration Resistance | +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz) |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1511012EN |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | true |
| Front Installation Possible | false |
| Local Signalling | 1 LED green COM via connector1 LED green PWR power supply |
| Network Type | AC/DC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| Bus Diagnosis Possible | true |
| System Accessory | true |
| Width Nominal | 18.4 mm |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Rack Assembly Possible | true |
| Supporting Protocol For As Interface Safety At Work | false |
| Supporting Protocol For Interbus Safety | false |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Protection Type | short-circuit, overload, reverse polarity |
| Certificate Agency | FM Class 1 Division 2, CSA, UL |
| Local Publishable Date | 2026-07-27 |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 0832 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | screw/spring terminal block |
| Hot Swapping Fallback | no |
| Marking | CE |
| Number Of Hw Interfaces Other | 1 |
| Product Or Component Type | EOS internal bus extension kit |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | Yes |
| Supply Voltage Limits | 19.2-30 V DC |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Housing Color | white |
| Potential Separation Present | true |
| Height Nominal | 65.1 mm |
| Supporting Protocol For Ethernet/Ip | false |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8536904000 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Performance Level According To En Iso 13849 1 | none |
| Radio Standard Wi Fi 802.11 | false |
| Supporting Protocol For Data Highway | false |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Toxic Heavy Metal Free | Yes |
| Ambient Air Temperature For Operation | 0-60 °C without derating) |
| Environmental Disclosure | ENVPEP1511012EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | standard STB modules |
| Pep Code | ENVPEP1511012EN |
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Compliant |
| Operating Altitude | <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
General Attributes
| Product Or Component Type | EOS internal bus extension kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001600 |
|---|---|
| ETIM 10 | EC001600 |
| ETIM 9 | EC001600 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Current | 310 mA |
|---|
