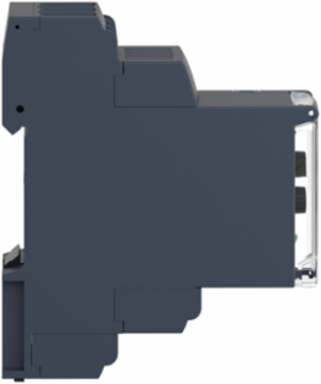

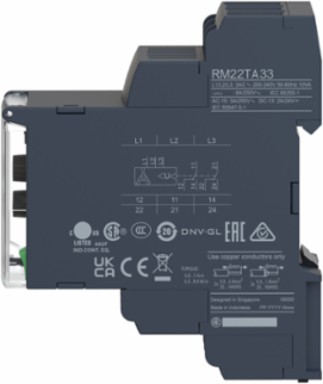

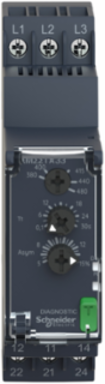

Schneider Electric RM22TA33 3-Phase Control Relay, 5A, 2 C/O, 380-480V AC, 22.5mm Width

  • MPN: RM22TA33
  • PPN: SCH-RM22TA33
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $199.68

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony RM22TA asymmetry control relay allows monitoring of power supply circuits in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Range Of Product
    Harmony Control Relays
    Switching Capacity In Va
    2000 VA
    Network Number Of Phases
    3 phases
    Contacts Type And Composition
    2 C/O
    Time Delay Type
    adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
    Measurement Range380...480 V voltage AC
    Product Or Component Type3-phase control relay
    Relay NameRM22TA
    Relay Typecontrol relay
    Relay Monitored Parametersphase sequence || phase failure detection || asymmetry

    Complementary

    [Us] Rated Supply Voltage
    AC/DC
    Safety Reliability Data
    MTTFd = 388.1 years || B10d = 350000
    Maximum Measuring Cycle
    150 ms measurement cycle as true rms value
    Maximum Switching Current
    8 A AC
    Measurement Error
    < 1 % over the whole range with voltage variation || < 0.05 %/°C with temperature variation
    Status Led
    LED (yellow) relay ON || LED (green) power ON
    Output Contacts
    2 C/O
    Voltage Detection Threshold
    < 100 V AC
    Response Time
    <= 300 ms
    Utilisation Category
    AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
    Maximum Switching Voltage
    250 V AC
    Control Type
    with test button
    Connections - Terminals
    screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
    Time Delay Drift
    <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
    Supply Voltage Limits
    304-576 V AC
    Mechanical Durability
    10000000 cycles
    Control Circuit Voltage Limits
    20 % + 20 % Un
    Width
    22.5 mm
    Electrical Durability
    100000 cycles
    Supply Frequency
    50...60 Hz +/- 10 %
    Voltage Range380...480 V phase to phase
    Minimum Switching Current10 mA 5 V DC
    Switching Threshold Drift<= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
    Hysteresis2-2 % fixed selectable
    [Us] Rated Supply Voltageself-powered
    Power Consumption In Va15-15 VA 480 V AC 60 Hz
    Contacts Materialcadmium free
    Adjustment Of Asymmetry Threshold5...15 % of Un selected
    Setting Accuracy Of The Switching Threshold+/- 10 % of the full scale
    Net Weight0.09 kg
    Insulation Resistance> 100 MOhm 500 V DC IEC 60255-27
    Reset Time1500 ms at maximum voltage
    Overvoltage CategoryIII IEC 60664-1 || III UL 508
    Setting Accuracy Of Time Delay10 P
    Mounting Support35 mm DIN rail IEC 60715
    Housing Materialself-extinguishing plastic
    Mounting Positionany position
    Tightening Torque0.6-1 N.m IEC 60947-1
    Run-Up Delay At Power-Up650 ms
    Repeat Accuracy+/- 0.5 % input and measurement circuit || +/- 3 % time delay

    Environment

    Product Certifications
    GL || EAC || CCC || CE || CSA || UL || RCM
    Dielectric Test Voltage
    2.5 kV AC 50 Hz, 1 min IEC 60255-27
    Immunity To Microbreaks
    10 ms
    Shock Resistance
    15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
    Ip Degree Of Protection
    IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
    Ambient Air Temperature For Storage
    -40-70 °C
    StandardsIEC 60255-1
    Electromagnetic Compatibilityimmunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || emission standard for industrial environments conforming to IEC 61000-6-4 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 || conducted and radiated emissions class B group 1 conforming to CISPR 11 || conducted and radiated emissions class B conforming to CISPR 22
    Ambient Air Temperature For Operation-20-50 °C 60 Hz || -20-60 °C 50 Hz AC/DC
    Vibration Resistance0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
    Pollution Degree3 IEC 60664-1 || 3 UL 508
    Relative Humidity93-97 % 25-55 °C IEC 60068-2-30

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1504008EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Circularity Profile
    ENVEOLI1504008EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    China Rohs RegulationX
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
