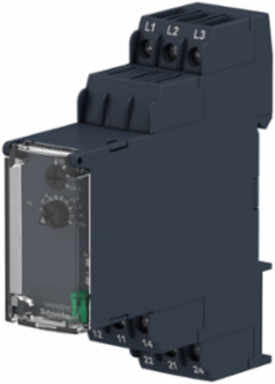

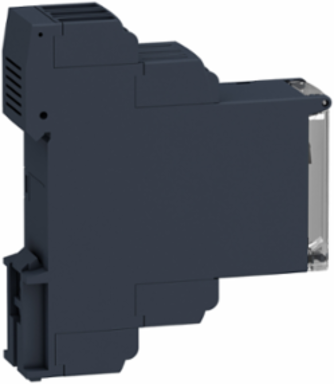

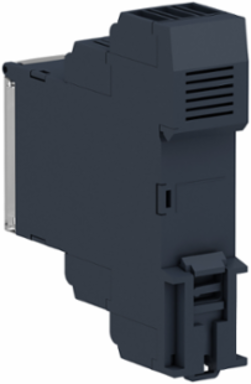

Harmony 3-Phase Control Relay, 8A, 200-240V AC, 22.5mm Width
Schneider Electric

Schneider Electric RM22TU21 Harmony 3-Phase Control Relay, 8A, 200-240V AC, 22.5mm Width

  • MPN: RM22TU21
  • PPN: SCH-RM22TU21
  • UNSPSC: 39122329
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $165.51

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    "This Harmony RM22-TU relay allows monitoring of phase and undervoltage/overtage in 3-phase networks." "This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Width
    22.5 mm
    Range Of Product
    Harmony Control Relays
    Switching Capacity In Va
    2000 VA
    Phase
    3 phase
    Contacts Type And Composition
    2 C/O
    Time Delay Type
    without
    Weight0.09 kg
    Measurement Range200...240 V voltage AC
    Product Or Component Type3-phase control relay
    Relay NameRM22TR
    Relay Typecontrol relay
    Relay Monitored Parametersundervoltage detection || phase sequence || phase failure detection

    Complementary

    [Us] Rated Supply Voltage
    AC/DC
    Safety Reliability Data
    B10d = 350000 || MTTFd = 388.1 years
    Maximum Measuring Cycle
    150 ms measurement cycle as true rms value
    Maximum Switching Current
    8 A AC
    Measurement Error
    < 1 % over the whole range with voltage variation || < 0.05 %/°C with temperature variation
    Power Consumption In Va
    10-10 VA 240 V AC 60 Hz
    Contacts Material
    cadmium free
    Response Time
    <= 300 ms
    Utilisation Category
    AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
    Maximum Switching Voltage
    250 V AC
    Control Type
    with test button
    Connections - Terminals
    screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
    Time Delay Drift
    <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
    Supply Voltage Limits
    160-288 V AC
    Nominal Output Current
    8 A
    Housing Material
    self-extinguishing plastic
    Threshold Adjustment Voltage
    2...20 % of Un selected
    Width
    22.5 mm
    Electrical Durability
    100000 cycles
    Supply Frequency
    50...60 Hz +/- 10 %
    Voltage Range200...240 V phase to phase
    Minimum Switching Current10 mA 5 V DC
    Switching Threshold Drift<= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
    Hysteresis2-2 % fixed selectable
    Status LedLED (Yellow) relay ON || LED (Green) power ON
    Output Contacts2 C/O
    Voltage Detection Threshold< 100 V AC
    Setting Accuracy Of The Switching Threshold+/- 10 % of the full scale
    Net Weight0.09 kg
    Insulation Resistance> 100 MOhm 500 V DC IEC 60255-27
    Reset Time1500 ms at maximum voltage
    Overvoltage CategoryIII IEC 60664-1 || III UL 508
    Setting Accuracy Of Time Delay10 P
    Mounting Support35 mm DIN rail conforming to IEC 60715
    Mechanical Durability10000000 cycles
    Control Circuit Voltage Limits- 20 % + 20 % Un
    Mounting Positionany position
    Tightening Torque0.6-1 N.m IEC 60947-1
    Run-Up Delay At Power-Up650 ms
    Repeat Accuracy+/- 0.5 % input and measurement circuit

    Environment

    Product Certifications
    RCM || CE || CSA || GL || CCC || UL || EAC
    Dielectric Test Voltage
    2.5 kV AC 50 Hz, 1 min IEC 60255-27
    Immunity To Microbreaks
    10 ms
    Shock Resistance
    15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
    Ip Degree Of Protection
    IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
    Ambient Air Temperature For Storage
    -40-70 °C
    StandardsIEC 60255-1
    Electromagnetic Compatibilityimmunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || emission standard for industrial environments conforming to IEC 61000-6-4 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 || conducted and radiated emissions class B group 1 conforming to CISPR 11 || conducted and radiated emissions class B conforming to CISPR 22
    Ambient Air Temperature For Operation-20-50 °C 60 Hz || -20-60 °C 50 Hz AC/DC
    Vibration Resistance0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
    Pollution Degree3 IEC 60664-1 || 3 UL 508
    Relative Humidity93-97 % 25-55 °C IEC 60068-2-30

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1504008EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    California Proposition 65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Circularity ProfileENVEOLI1504008EN
