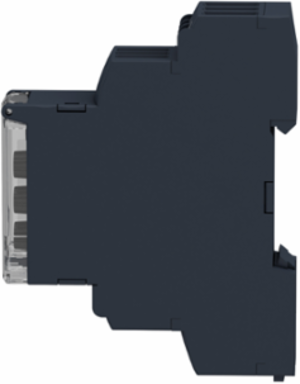

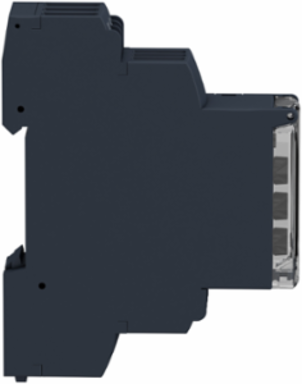

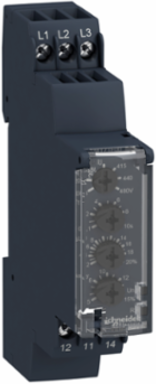

Schneider Electric RM17UB310 Harmony Voltage Control Relay, 5A, 208-480V AC, 17.5mm Width

  • MPN: RM17UB310
  • PPN: SCH-RM17UB310
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $212.58

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony RM17-UB relay allows monitoring of voltage control in 3-phase networks. This modular multi function 3-phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Width
    17.5 mm
    Country of OriginBrazil, France, Indonesia, United States

    Complementary Attributes

    Control Circuit Frequency
    50...60 Hz +/- 10 %
    Maximum Measuring Cycle
    150 ms measurement cycle as true rms value
    Maximum Switching Voltage
    250 V AC/DC
    Line Rated Current5 A
    Maximum Switching Current5 A AC/DC
    Minimum Switching Current10 mA 5 V DC

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electromagnetic Compatibility
    emission standard for industrial environments conforming to IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, immunity for industrial environments conforming to NF EN/IEC 61000-6-2
    Local Signalling
    LED (green) for power ON, LED (yellow) for relay ON
    Measurement Error
    < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, 0.05 %/°C with temperature variation
    Relay Monitored Parameters
    overvoltage and undervoltage between phases, overvoltage and undervoltage between phases
    Response Time
    < 200 ms (in the event of a fault), < 200 ms (in the event of a fault)< 200 ms (in the event of a fault), < 200 ms (in the event of a fault)
    Threshold Adjustment Voltage
    -2...-17 % in the range 220 V AC, +2...+10 % in the range 480 V AC, -2...-12 % in the range 208 V AC, 2...20 % of Un selected, -2...-17 % in the range 220 V AC, +2...+10 % in the range 480 V AC, -2...-12 % in the range 208 V AC
    Vibration Resistance
    0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
    Connections - Terminals
    screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw connectors
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.22465860666956494, 0.2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    2 kg CO2 eq., 1.8854370782510697
    Local Data Status
    Publishable
    Return Indicator
    Y
    Future Msrp
    182.20
    Stock Policy
    1
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Contacts Type And Composition
    1 C/O
    Dielectric Test Voltage
    2 kV AC 50 Hz, 1 min
    Functionality
    overvoltage and undervoltage detection
    Hysteresis
    2-2 %
    Mechanical Durability
    30000000 cycles
    Operating Position
    any position without derating
    Power Consumption In Va
    0-22 VA 400 V AC 50 Hz
    Product Or Component Type
    3-phase control relay
    Quality Labels
    CE
    Relay Name
    RM17UB3
    Reset Time
    1500 ms time delay
    Shock Resistance
    5 gn IEC 60068-2-27
    Supply Voltage Limits
    183-528 V AC
    Switching Capacity In Va
    1250 VA
    Time Delay Type
    adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault
    Voltage Detection Threshold
    183 V
    Measurement Range 4
    220...480 V AC
    Database Version
    2024-04
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Harmony RM17-TE relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It works with power consumption of 2.7 W in 80% active mode with life span of 10 years.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Indonesia, ID
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    Width Nominal
    17.5 mm
    [Ui] Rated Insulation Voltage
    400 V IEC 60664-1
    Non-dissipating Shock Wave
    4 kV
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Insulation Resistance> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60664-1
    Measurement Accuracy+/- 10 % of the full scale value, +/- 10 % of the full scale value
    Operating Rate<= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
    Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 1 % time delay, +/- 1 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 1 % time delay, +/- 1 % time delay
    Safety Reliability DataB10d = 470000, MTTFd = 502.2 years
    Utilisation CategoryAC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1, DC-14 IEC 60947-5-1
    Certificate AgencyGOST, UL, GL, C-tick, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.2457174757419692, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.000372352797064255
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]95 kg CO2 eq., 95.41983755211216
    Local Publishable Date2026-03-26
    Future Imap163.25
    Stocking FlagY
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1601001EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1918
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeRM17
    Control Typewithout test button
    Electrical Durability100000 cycles
    Housing Materialpolycarbonate
    Measurement Range220...480 V AC
    Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationfor 3-phase supply
    Range Of ProductHarmony Control Relays
    Relay Typevoltage control relay
    ReturnabilityYes
    Software Versionv6.2-6
    Sustainable PackagingYes
    Tightening Torque0.6-1 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint98 kg CO2 eq.
    Contacts Composition1 C/O
    Pep CodeENVPEP1601001EN
    Pep Verification Date2025-03-09
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    [Uc] Control Circuit Voltage208...480 V
    [Us] Rated Supply Voltage, self-powered, self-powered
    Run-up Delay At Power-up650 ms
    Package Weight(Lbs)87.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP20 IEC 60529 terminals), IP30 IEC 60529 casing)
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ambient Air Temperature For Operation
    -20-50 °C-20-50 °C
    Environmental Disclosure
    ENVPEP1601001EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1601001EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Directives89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint97.77602306557182
    Circularity ProfileENVEOLI1601001EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
    Pep Verification Date2025-03-09
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    3-phase control relay
    Range Of ProductHarmony Control Relays

    ETIM

    ETIM 8
    EC001438
    ETIM 9EC001438

    Output Attributes

    Nominal Output Current
    5 A
    Output Contacts1 C/O

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
