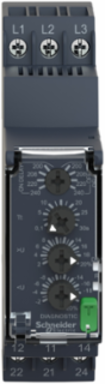

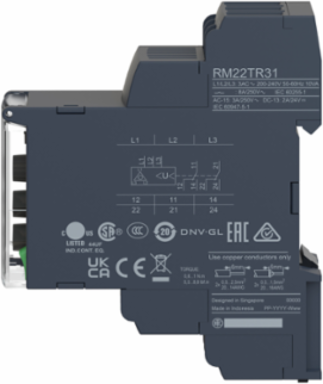

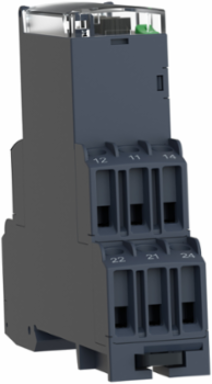

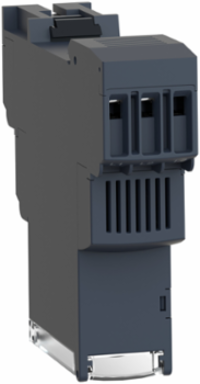

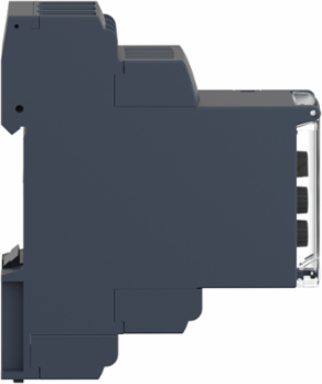

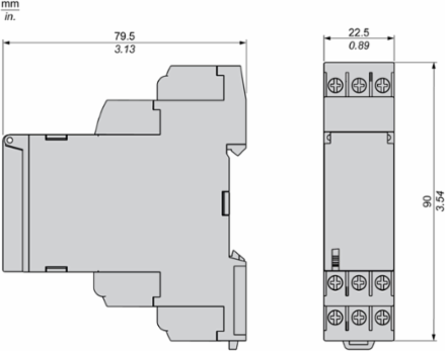

Schneider Electric RM22TR31 3-Phase Control Relay 8A 2C/O Voltage Monitoring 200...240V AC

  • MPN: RM22TR31
  • PPN: SCH-RM22TR31
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $212.58

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RM22TR control relay allows monitoring of voltage control in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, Sweden, United States, ZZ
    Depth73 mm

    Complementary Attributes

    Control Circuit Voltage Limits
    - 20 % + 20 % Un- 20 % + 20 % Un
    Maximum Measuring Cycle
    150 ms measurement cycle as true rms value
    Maximum Switching Voltage
    250 V AC
    Line Rated Current8 A
    Maximum Switching Current8 A AC
    Minimum Switching Current10 mA 5 V DC

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electromagnetic Compatibility
    immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1immunity for industrial environments conforming to IEC 61000-6-2emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, conducted and radiated emissions class B group 1 conforming to CISPR 11conducted and radiated emissions class B conforming to CISPR 22
    Measurement Error
    < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, < 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, < 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation
    Relay Monitored Parameters
    overvoltage and undervoltage detection, phase sequence, phase failure detection, overvoltage and undervoltage detection
    Safety Reliability Data
    MTTFd = 388.1 years, B10d = 350000
    Time Delay Drift
    <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
    Vibration Resistance
    0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
    Control Circuit Voltage
    200...240 V
    [Us] Rated Supply Voltage
    , self-poweredAC/DC, , self-powered
    Carbon Footprint Of The Distribution Phase [A4]
    0.0130308364, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.0005039074
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    69 kg CO2 eq., 68.6709333333
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2506066EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1918
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Compatibility Code
    RM22
    Contacts Type And Composition
    2 C/O
    Dielectric Test Voltage
    2.5 kV AC 50 Hz, 1 min IEC 60255-27
    Housing Material
    polycarbonate
    Measurement Range
    200...240 V voltage AC
    Mounting Support
    35 mm DIN rail conforming to IEC 60715
    Power Consumption In Va
    10-10 VA 240 V AC 60 Hz
    Product Or Component Type
    3-phase control relay
    Relay Name
    RM22TR
    Reset Time
    1500 ms at maximum voltage
    Returnability
    Yes
    Setting Accuracy Of Time Delay
    10 P
    Software Version
    EIME v5.8.1
    Supply Frequency
    50...60 Hz +/- 10 %
    Sustainable Packaging
    Yes
    Threshold Adjustment Voltage
    2...20 % of Un selected
    Time Delay Type
    adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
    Voltage Range
    200...240 V phase to phase
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
    Functional-unit Unit
    unité (unit)
    Energy Consumption On Product Lifetime In Kwh
    140.16
    Energy Model - Installation [A5]
    Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Height Nominal
    90 mm
    [Uc] Control Circuit Voltage
    200...240 V
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]
    248.992
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    1197.12
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    174.4
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    174.4
    Customs Code
    8536490050
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Insulation Resistance> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
    Overvoltage CategoryIII conforming to IEC 60664-1, III conforming to UL 508
    Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 3 % time delay, +/- 3 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 3 % time delay, +/- 3 % time delay
    Switching Threshold Drift<= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
    Utilisation CategoryAC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
    Voltage Detection Threshold< 100 V AC, < 100 V AC< 100 V AC, < 100 V AC
    Certificate AgencyCSA, CCC, EAC, RCM, CE, GL, UL
    Connections - Terminalsscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endscrew terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, screw connectors
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0586883455, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.0760090909
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contacts Materialcadmium free
    Control Typewith test button
    Electrical Durability100000 cycles
    Hysteresis2-2 % fixed selectable
    Mechanical Durability10000000 cycles
    Phase3 phase
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Control Relays
    Relay Typecontrol relay
    Response Time<= 300 ms<= 300 ms
    Setting Accuracy Of The Switching Threshold+/- 10 % of the full scale+/- 10 % of the full scale
    Shock Resistance15 gn 11 ms) not in operation IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
    Status LedLED (Yellow) relay ONLED (Green) power ON
    Supply Voltage Limits160-288 V AC
    Switching Capacity In Va2000 VA
    Tightening Torque0.6-1 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint71 kg CO2 eq.
    Pep CodeENVPEP2506066EN
    Pep Verification Date2019-05-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Recyclability Potential In %17
    Width Nominal22.5 mm
    Run-up Delay At Power-up650 ms
    Package Weight(Lbs)101.0 g
    Warranty (In Months)18
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]256.032
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1371.52
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1197.12
    Water Pollution (M3) Operational Energy Use [B6]2833.6

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC-20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    70.8191655134
    Environmental Disclosure
    ENVPEP2506066EN
    Ip Degree Of Protection
    IP20 IEC 60529 terminals)IP40 IEC 60529 housing)IP50 IEC 60529 front panel)
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    93-97 % 25-55 °C IEC 60068-2-30
    Pep Verification Date
    2019-05-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2506066EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2506066EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Phase
    3 phase
    Range Of Product
    Harmony Control Relays
    Product Or Component Type3-phase control relay

    ETIM

    ETIM 8
    EC001441
    ETIM 9EC001441

    Output Attributes

    Nominal Output Current
    8 A
    Output Contacts2 C/O
