Mersen X331036 Modulostar® 2-Pole Modular Fuse Holder 14x51, 50A, IP20, DIN Rail Mounting
- MPN: X331036
- PPN: FER-X331036
CAD
$400.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

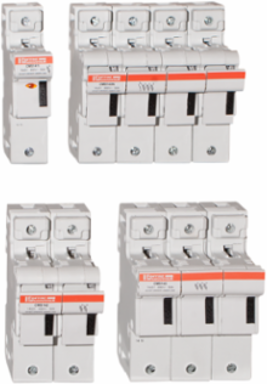

The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In size 14 or 22, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. Modulostar® range is made of tough and durable thermoplastic or thermoset material.
Specifications
Key Specifications
- Rated voltage AC IEC
- 690 V
- Ampere Rating
- 50 A
- AC or DC
- AC/DC
- Fuse Size
- 14x51
- Indication System
- Yes
- Number of Poles
- 2-Pole
- Rated Impulse Withstand Voltage
- 8 kV
- Installation Mounting
- DIN rail acc. EN 60715
- Width
- 2.09 in
- Height
- 4.36 in
Rated voltage DC IEC690 V
ROHS CompliantYes
Short Circuit Current Rating (SCCR)100 kA
Design Details2 auxiliary microswitches
Indication System TypeVisual Indicator Microswitch
Torque Rating30.978 lb-in
Rated Insulation Voltage690 V
Conventional Free Air thermal Current With Fuse-Links Ith50 A
Length3.01 in
Weight0.628 lb
