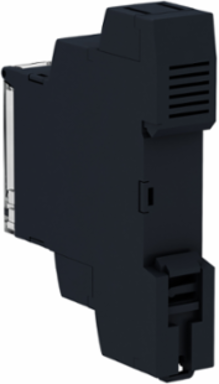

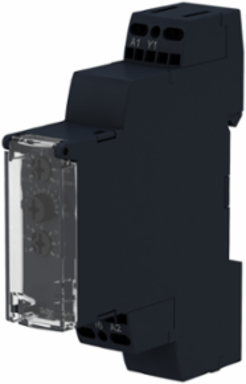

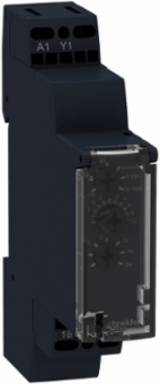

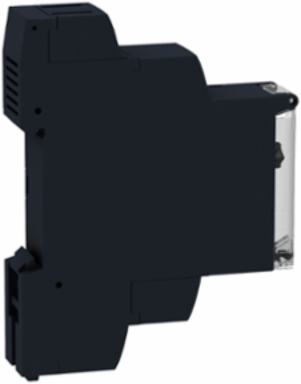

Schneider Electric RE17LMBM Harmony Multifunction Timer Relay, 0.7A, 24-240V AC, 17.5mm Width

  • MPN: RE17LMBM
  • PPN: SCH-RE17LMBM
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $100.22

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, United States
    Depth72 mm

    Complementary Attributes

    Maximum Voltage Drop
    <4 V 3-wire, <4 V 3-wire, <8 V 2-wire, <8 V 2-wire<4 V 3-wire, <4 V 3-wire, <8 V 2-wire, <8 V 2-wire
    Line Rated Current
    0.7 A
    Maximum Leakage Current
    5 mA
    Maximum Power Consumption In W
    1.5 W 240 V DC
    Minimum Switching Current
    10 mA
    Impulse Duration0.05 s typical
    Maximum Delay Response100 ms
    Maximum Output Current20 A
    Maximum Switching Voltage250 V AC

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Control Type
    selector switch front panel, without test button, without test button
    Function Available
    A- Power on-delay relay-1 solid state output, Ac- On-delay and off-delay relay w/ control signal-1 solid state output, At- Power on-delay relay w/ pause/summation (Y1)-1 solid state output, B- Single interval relay w/ control signal-1 solid state output, Bw- Double interval relay w/ control signal-1 solid state output, C- Off-delay relay w/ control signal-1 solid state output, D- Symmetrical flashing relay (starting pulse-off)-1 solid state output, Di- Symmetrical flashing relay (starting pulse-on)-1 solid state output, H- Interval relay-1 solid state output, Ht- Interval relay w/ pause/summation (Y1)-1 solid state output
    Safety Reliability Data
    MTTFd = 353.8 years, B10d = 320000
    Temperature Drift
    +/- 0.05 %/°C, +/- 0.05 %/°C
    Time Delay Type
    - A- Power on-delay relay- Ac- On-delay and off-delay relay w/ control signal, - At- Power on-delay relay w/ pause/summation (Y1)- B- Single interval relay w/ control signal, - Bw- Double interval relay w/ control signal- C- Off-delay relay w/ control signal - D- relay (starting pulse-off), - Di- relay (starting pulse-on), - H- Interval relay, - Ht- Interval relay w/ pause/summation (Y1), A, Ac, At, B, Bw, C, D, Di, H, Ht, power on-delay, on-delay and, interval, off-delay, symmetrical flashing
    Contacts Composition
    1 C/O
    Connections - Terminals
    screw terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.2 kg CO2 eq., 0.1751479806231869
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    2 kg CO2 eq., 1.519944854210636
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Component Name
    RE17L
    Creepage Distance
    4 kV/3 IEC 60664-1
    Electrical Durability
    100000000 cycles
    Housing Material
    polycarbonate
    Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
    Mounting Position
    any position in relation to normal vertical mounting plane
    Number Of Functions
    10
    Power Consumption In Va
    0-3 VA 240 V AC
    Product Or Component Type
    modular timing relay
    Reset Time
    350 ms on de-energisation typical
    Shock Resistance
    15 gn 11 ms IEC 60068-2-27
    Supply Frequency
    50...60 Hz +/- 5 %
    Tightening Torque
    0.6-1 N.m IEC 60947-1
    Vibration Resistance
    20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
    Supply Voltage Num 3
    24...240 V AC 50/60 Hz
    Database Version
    2024-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Harmony RE17 timing relay can be set between 0.1 seconds and 100 hours which has an output rating of 8A with 7.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 change over contact SPDT (single pole double throw). It has one of market slimmest form-factors which allowing for a flexible and easy installation on DIN rail using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers and product is adhering to international standards.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; High voltage; 2020; Indonesia, ID
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2020; Global, GLO
    Recyclability Potential In %
    13
    Width Nominal
    17.5 mm
    [Uimp] Rated Impulse Withstand Voltage
    5 kV 1.2/50 µs
    On-load Factor
    100 %
    Package Weight(Lbs)
    72.0 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electromagnetic Compatibilityelectrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50 µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50 µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, conducted and radiated emissionsclass B EN 55022
    Repeat Accuracy+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
    Setting Accuracy Of Time Delay+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
    Time Delay Range1...10 s, 6...60 s, 6...60 min, 1...10 h, 10...100 h, 1...10 min, 0.1...1 s
    Voltage Drift+/- 0.2 %/V, +/- 0.2 %/V
    Certificate AgencyGL, cULus, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.05861637562945304, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0005583301512003458, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]41 kg CO2 eq., 40.75904111642341
    Local Publishable Date2025-11-25
    Stocking FlagN
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI121113EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1243
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeRE17
    Contacts Type And Composition1 C/O
    Dielectric Strength2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
    Functionalitymultifunction
    Immunity To Microbreaks20 ms
    MarkingCE
    Mounting Support35 mm DIN rail conforming to IEC 60715
    Operating Rate In Hz10 Hz
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Timer Relays
    ReturnabilityYes
    Software Versionv6.2.5-6
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint43 kg CO2 eq.
    Voltage Range0.85...1.1 Us
    Pep CodeENVPEP1211017EN
    Pep Verification Date2025-10-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Height Nominal90 mm
    [Uc] Control Circuit Voltage24...240 V
    [Us] Rated Supply Voltage24...240 V AC 50/60 Hz
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536490080

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-60 °C, -20-60 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    42.51330865703789
    Derating Factor
    5 mA/°C
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1211017EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-30-60 °C, -30-60 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI121113EN
    Environmental DisclosureENVPEP1211017EN
    Ip Degree Of ProtectionIP20 IEC 60529 terminal block)IP40 IEC 60529 housing)IP50 IEC 60529 front panel)
    Packaging Without Single Use PlasticYes
    Relative Humidity93-93 % without condensation IEC 60068-2-30
    Pep Verification Date2025-10-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    modular timing relay
    Range Of ProductHarmony Timer Relays

    ETIM

    ETIM 8
    EC001439
    ETIM 9EC001439

    Output Attributes

    Discrete Output Type
    solid state
    Nominal Output Current
    0.7 A
    Maximum Output Current20 A
    Output Typesolid state

    Input Attributes

    Input Voltage
    8 V
