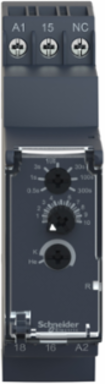

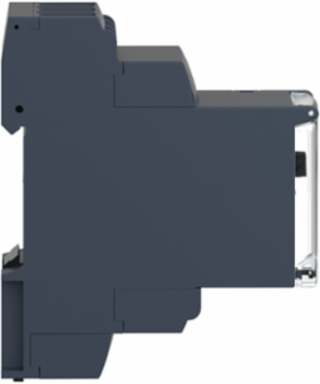

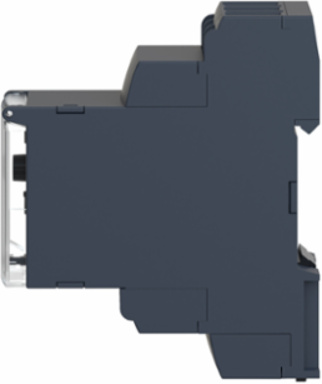

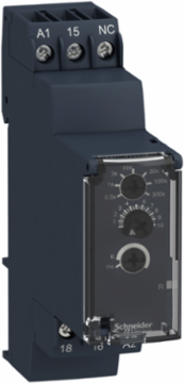

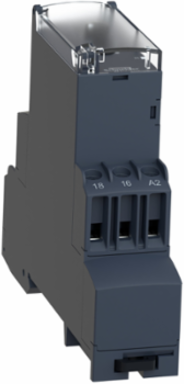

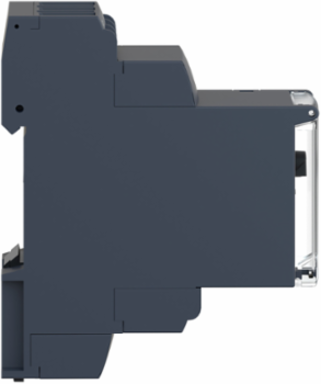

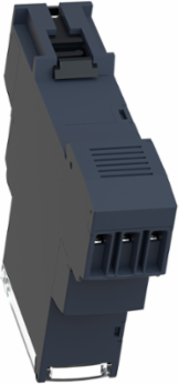

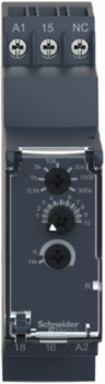

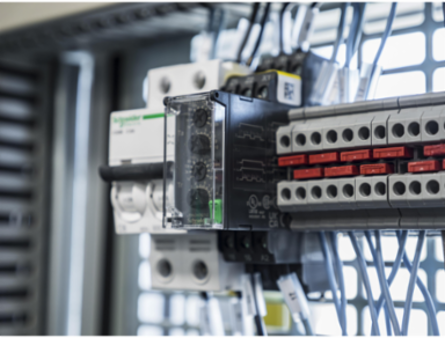

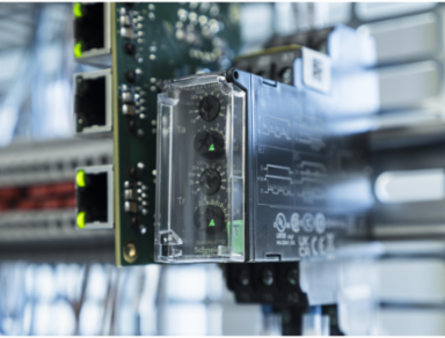

Schneider Electric RE22R1MKMR Dual Function Timer Relay, 5A, 0.05s-300s, 24-240V AC/DC, 22.5mm Width
- MPN: RE22R1MKMR
- PPN: SCH-RE22R1MKMR
CAD
$134.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

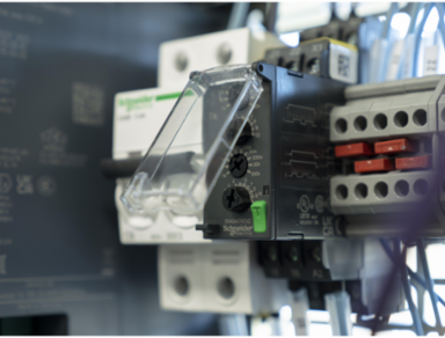

This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours, has an output rating of 8 amperes and it is 22.5 millimeters wide. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Complementary Attributes
- Line Rated Current
- 5 A
- Maximum Switching Current
- 5 A
- Minimum Switching Current
- 10 mA 5 V DC
Maximum Delay Response100 ms
Maximum Switching Voltage250 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- rotary knob, with test button, with test button
- Electromagnetic Compatibility
- fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
- Temperature Drift
- +/- 0.05 %/°C, +/- 0.05 %/°C
- Time Delay Type
- interval - He-Pulse-on de-energizationoff-delay - K- (without auxiliary supply), He, K, pulse-on de-energization, delay on de-energization
- Contacts Composition
- 1 C/O
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0602937262
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.9147338403
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Housing Material
- polycarbonate
- Insulation Resistance
- 100 MOhm 500 V DC IEC 60664-1
- Mounting Position
- any position
- Number Of Functions
- 2
- Power Consumption In Va
- 3-3 VA 240 V AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Timer Relays
- Returnability
- Yes
- Software Version
- EIME 5.7.0.2
- Sustainable Packaging
- Yes
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Vibration Resistance
- 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
- Supply Voltage Num 3
- 24...240 V AC/DC 50/60 Hz
- Database Version
- 2018-03
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 6.57
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27

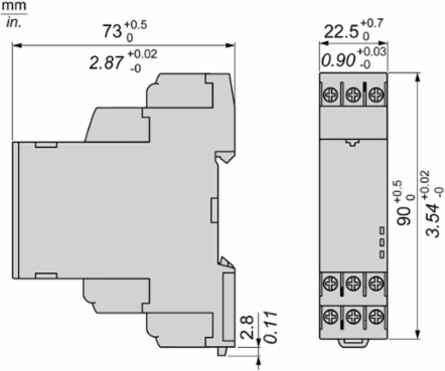

- Width Nominal
- 22.5 mm
- [Uimp] Rated Impulse Withstand Voltage
- 5 kV 1.2-50 µs IEC 60664-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 138.545
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 11.6715
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 56.115
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 8.175
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 8.175
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability100000 cycles, 2 A at 24 V, DC-1, 100000 cycles, 5 A at 250 V, AC-1
Function AvailableHe-Pulse-on de-energization-1 C/O, K-Delay on de-energization (without auxiliary supply)-1 C/O
Safety Reliability DataB10d = 180000, MTTFd = 194 years
Status LedGreen LED backlight steady)dial pointer indication, Yellow LED steady)output relay energised, Yellow LED steady)power ON
Time Delay Range0.3...3 s, 0.05...0.5 s, 3...30 s, 0.1...1 s, 30...300 s, 10...100 s, 1...10 s
Voltage Drift+/- 0.2 %/V, +/- 0.2 %/V
Certificate AgencyGL, UL, CSA, RCM, CCC, CE, EAC
Carbon Footprint Of The Distribution Phase [A4]0.0129020913, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0005595627, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 kg CO2 eq., 3.21895
Local Publishable Date2026-07-16
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2502020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Contacts Type And Compositiontimed contact, cadmium free1 C/O
Device Short NameRE22
Functionalitymultifunction
Immunity To Microbreaks10 ms
Mechanical Durability10000000 cycles
Mounting Support35 mm DIN rail conforming to IEC 60715
Overvoltage CategoryIII conforming to IEC 60664-1
Power Consumption In W2 W 240 V DC
Product Or Component Typemodular timing relay
Reset Time50 ms on de-energisation
Shock Resistance15 gn not operating 11 ms IEC 60068-2-275 gn in operation 11 ms IEC 60068-2-27
Supply Frequency50...60 Hz +/- 5 %
Switching Capacity In Va1250 VA
Total Lifecycle Carbon Footprint5 kg CO2 eq.
Voltage Range0.85...1.1 Us
Pep CodeENVPEP2502020EN
Pep Verification Date2018-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %15
[Uc] Control Circuit Voltage24...240 V
[Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz
Package Weight(Lbs)91.0 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]36.5375
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]12.0015
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]64.29
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]56.115
Water Pollution (M3) Operational Energy Use [B6]132.825
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Directives
- 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2502020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2502020EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint5.2074392205
Environmental DisclosureENVPEP2502020EN
Ip Degree Of ProtectionIP40 housing: conforming to IEC 60529IP50 front face: conforming to IEC 60529IP20 terminals: conforming to IEC 60529
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 25-55 °C
Pep Verification Date2018-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- modular timing relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Nominal Output Current5 A
Input Attributes
- Input Voltage
- <= 2.4 V, <= 2.4 V
