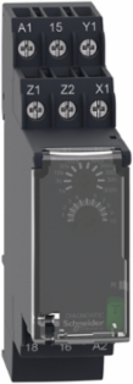

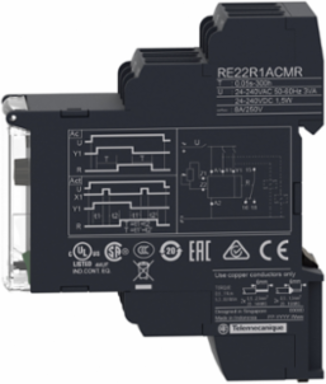

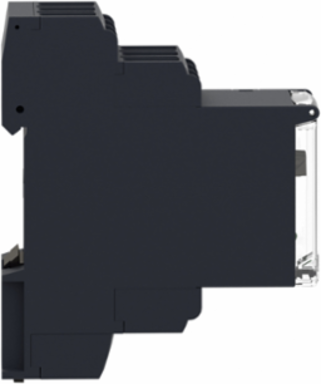

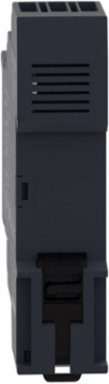

Schneider Electric RE22R1CMR dual function relay, Harmony Timer Relays, 8A, 1CO, 0.05s…300h, off delay, 24...240V AC DC
Schneider Electric RE22R1CMR dual function relay, Harmony Timer Relays, 8A, 1CO, 0.05s…300h, off delay, 24...240V AC DC
- MPN: RE22R1CMR
- PPN: SCH-RE22R1CMR
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$104.77/ EA
Description
This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours, has an output rating of 8 amperes and it is 22.5 millimeters wide. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Specifications
Complementary
- Power Consumption In W
- 1.5 W 240 V DC
- Contacts Type And Composition
- 1 C/O timed contact, cadmium free
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Control Type
- rotary knob || diagnostic button || potentiometer external
- Immunity To Microbreaks
- 10 ms
- Switching Capacity In Va
- 2000 VA
- Maximum Switching Current
- 8 A
- Net Weight
- 0.1 kg
- Voltage Drift
- +/- 0.2 %/V
- Maximum Switching Voltage
- 250 V AC
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- Time Delay Range
- 10...100 s || 3...30 s || 0.05...1 s || 30...300 s || 30...300 h || 30...300 min || 3...30 min || 3...30 h || 0.3...3 s || 1...10 s
- Overvoltage Category
- III IEC 60664-1
- Mounting Support
- 35 mm DIN rail IEC 60715
- Mechanical Durability
- 10000000 cycles
- Status Led
- green LED backlight steady)dial pointer indication || yellow LED steady)output relay energised || yellow LED fast flashing)timing in progress and output relay de-energised || yellow LED slow flashing)timing in progress and output relay energised
- Width
- 22.5 mm
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1
Safety Reliability DataMTTFd = 205.4 years || B10d = 190000
Setting Accuracy Of Time Delay+/- 10 % of full scale 25 °C IEC 61812-1
Maximum Delay Response100 ms
Insulation Resistance100 MOhm 500 V DC IEC 60664-1
Power Consumption In Va3-3 VA 240 V AC
Minimum Pulse Duration100 ms with load in parallel || 30 ms
Voltage Range0.85...1.1 Us
Mounting Positionany position
Reset Time120 ms on de-energisation
Connections - Terminalsscrew terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Temperature Drift+/- 0.05 %/°C
Minimum Switching Current10 mA 5 V DC
Input Voltage<= 2.4 V
Electrical Durability100000 cycles, 8 A 250 V, AC-1 || 100000 cycles, 2 A 24 V, DC-1
Housing Materialself-extinguishing
[Uimp] Rated Impulse Withstand Voltage5 kV 1.2-50 µs IEC 60664-1
Time Delay Typeoff-delay
Supply Frequency50...60 Hz +/- 5 %
Environment
- Product Certifications
- UL || CE || CCC || CSA || GL || RCM || EAC
- Standards
- UL 508 || IEC 61812-1
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Vibration Resistance
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Directives
- 2004/108/EC - electromagnetic compatibility || 2006/95/EC - low voltage directive
- Relative Humidity
- 95-95 % 25-55 °C
Ambient Air Temperature For Operation-20-60 °C
Electromagnetic Compatibilityfast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 || conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 || fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 || immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 || immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
Shock Resistance15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
Pollution Degree3 IEC 60664-1
Ambient Air Temperature For Storage-40-70 °C
Ip Degree Of ProtectionIP40 housing: conforming to IEC 60529 || IP50 front face: conforming to IEC 60529 || IP20 terminals: conforming to IEC 60529
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1401008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1401008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Discrete Output Type
- relay
- Product Or Component Type
- dual function relay
- Device Short Name
- RE22
Range Of ProductHarmony Timer Relays
Nominal Output Current8 A
