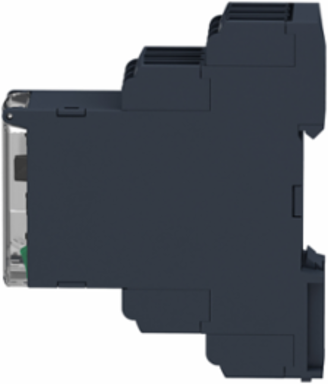

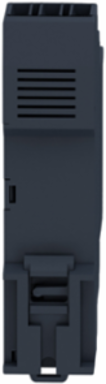

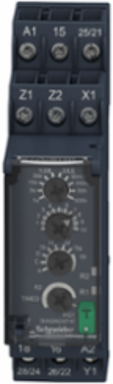

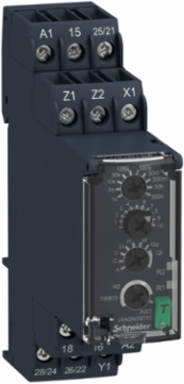

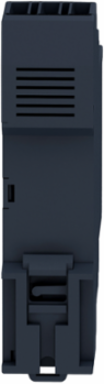

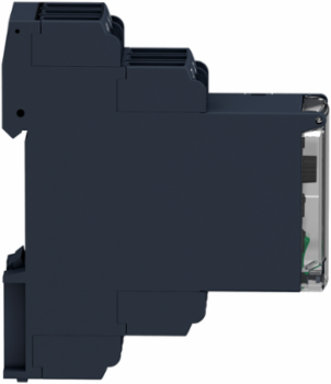

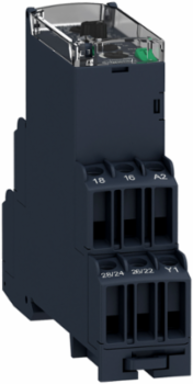

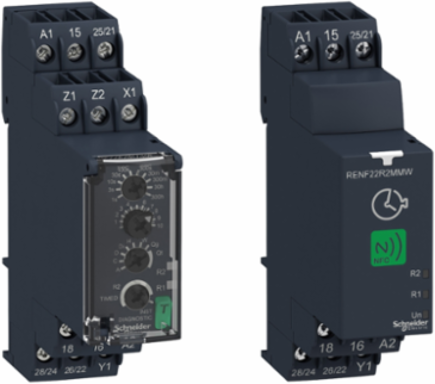

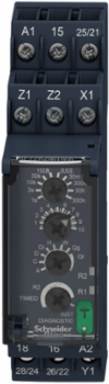

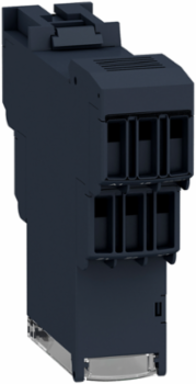

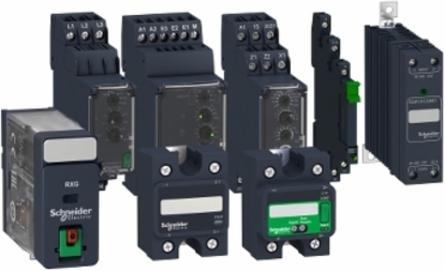

Schneider Electric RE22R2MYMR Harmony Multifunction Relay, 8A, 0.05s...300h, 22.5mm

MPN: RE22R2MYMR
PPN: SCH-RE22R2MYMR

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$127.55

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

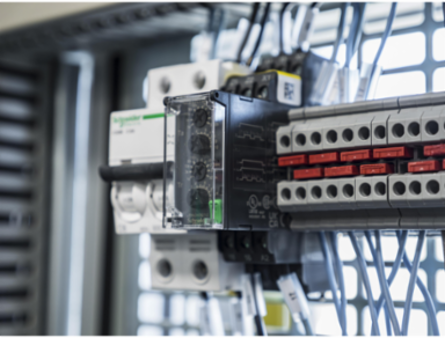

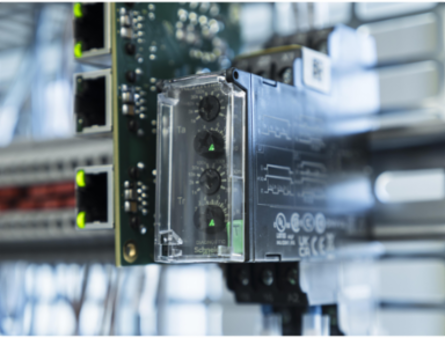

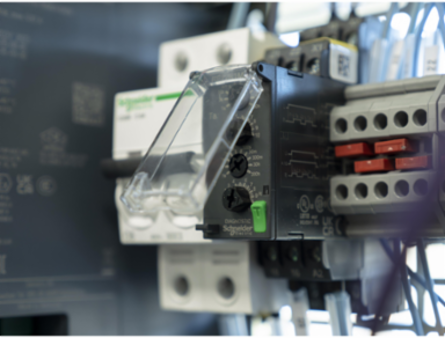

This Harmony RE22 timing relay can be set between 0.05 seconds and 300 hours, has an output rating of 8A, is 22.5mm wide and can be supplied with 24V to 240V AC. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail. It also offers a sealable cover, simple and precise settings with rotary trimmers. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. Diagnostic button allows simple setup and trouble shooting by non-specialists. 0 0 0 0 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, United States

Complementary Attributes

Minimum Pulse Duration	100 ms with load in parallel, 30 ms
Maximum Delay Response	100 ms
Maximum Switching Voltage	250 V AC

Line Rated Current	5 A
Maximum Switching Current	8 A
Minimum Switching Current	10 mA 5 V DC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Type	rotary knob, diagnostic buttonpotentiometer external, with test button, with test button
Electromagnetic Compatibility	fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
Repeat Accuracy	+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
Setting Accuracy Of Time Delay	+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
Temperature Drift	+/- 0.05 %/°C, +/- 0.05 %/°C

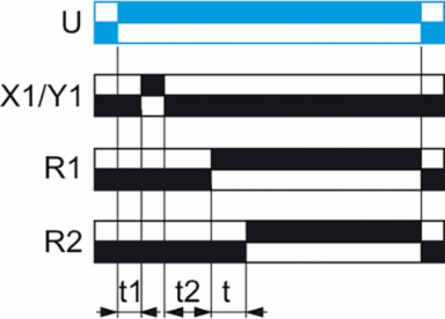

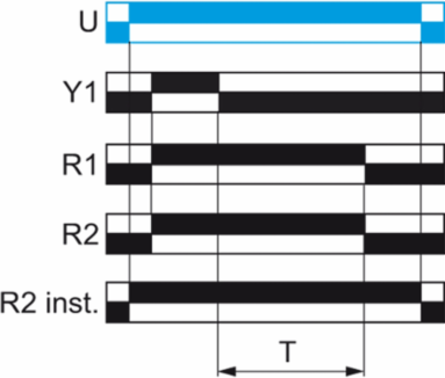

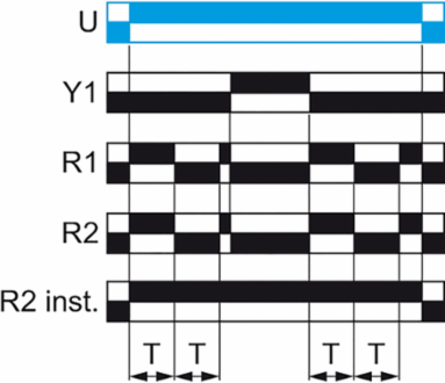

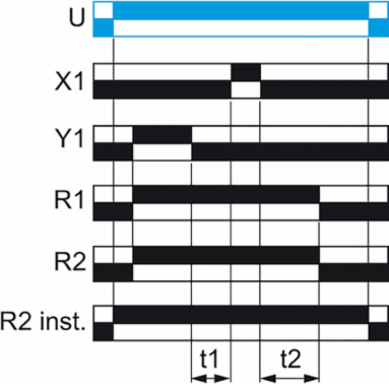

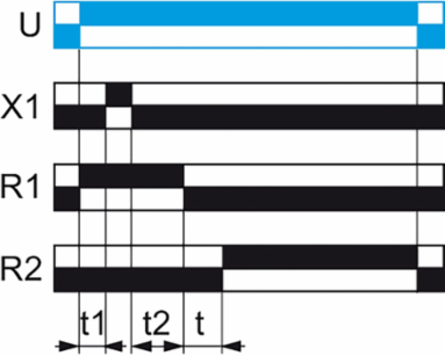

Time Delay Type	- A- Power on-delay relay, - At- Power on-delay relay w/ pause/summation (X1), - Aw- Power on-delay relay w/ retrigger/restart- C- Off-delay relay w/ control signal, - Ct- Off-delay relay w/ control signal and pause/summation- D- Symmetrical flashing relay (starting pulse-off), - Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1), - Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart, - Di- Symmetrical flashing relay (starting pulse-on), - Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1), - Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart- H- Interval relay, - Ht- Interval relay w/ pause/summation (X1), - Hw- Interval relay w/ retrigger/restart - Qg- relay (2 CO outputs w/ same common), - Qgt- relay (2 CO outputs w/ same common) w/ pause/summation, - Qt- relay (2 CO outputs w/ split common), - Qtt- relay (2 CO outputs w/ split common) w/ pause/summation (X1), - W- Interval relay w/ control signal off, - Wt- Interval relay w/ control signal off and pause/summation, A, At, Aw, C, Ct, D, Di, Dit, Diw, Dt, Dw, H, Ht, Hw, Qg,Qgt,Qgw,Qt,Qtt,Qtw,W,Wt, power on-delay, off-delay, symmetrical flashing, interval, star-delta
Contacts Composition	2 C/O
Connections - Terminals	screw terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0633084125, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 2.0104705323
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2502020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Contacts Type And Composition	1 C/O timed or instantaneous contact, cadmium free timed contact, cadmium free2 C/O
Device Short Name	RE22
Functionality	multifunction
Immunity To Microbreaks	10 ms
Mechanical Durability	10000000 cycles
Mounting Support	35 mm DIN rail conforming to IEC 60715
Overvoltage Category	III conforming to IEC 60664-1
Power Consumption In W	1.5 W 240 V DC
Product Or Component Type	modular timing relay
Reset Time	120 ms on de-energisation
Shock Resistance	15 gn not operating 11 ms IEC 60068-2-275 gn in operation 11 ms IEC 60068-2-27
Supply Frequency	50...60 Hz +/- 5 %
Switching Capacity In Va	2000 VA
Total Lifecycle Carbon Footprint	54 kg CO2 eq.
Voltage Range	0.85...1.1 Us
Pep Code	ENVPEP2502020EN
Pep Verification Date	2018-04-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	15
[Uc] Control Circuit Voltage	24...240 V
[Us] Rated Supply Voltage	24...240 V AC/DC 50/60 Hz
Package Weight(Lbs)	116.0 g
Warranty (In Months)	18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	584.6
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	186.744
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	897.84
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	130.8
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	130.8
Customs Code	8536490065

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Durability	100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 2 A at 24 V, DC-1

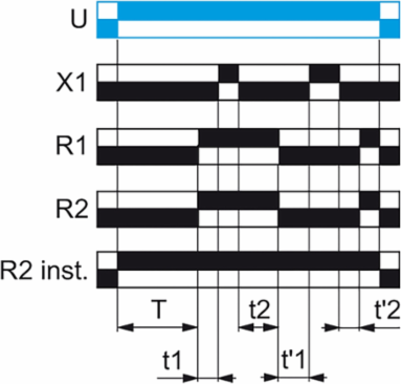

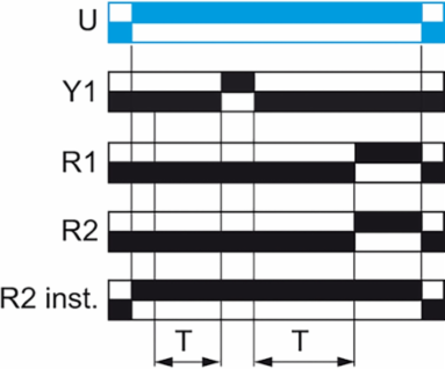

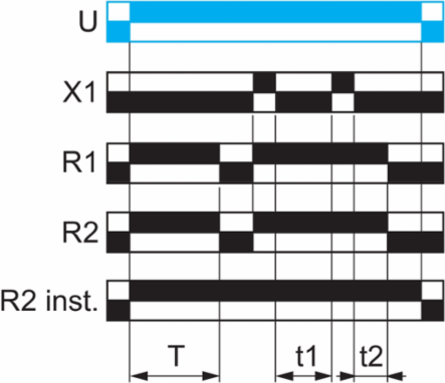

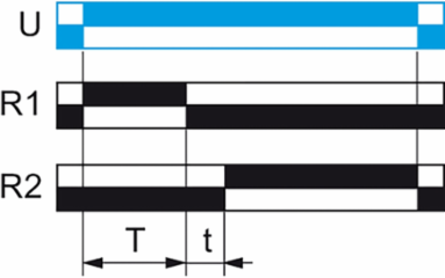

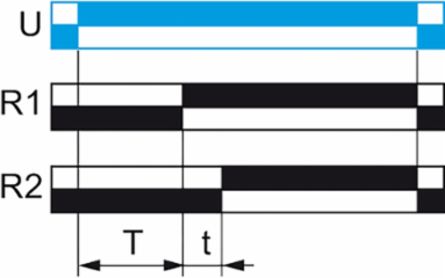

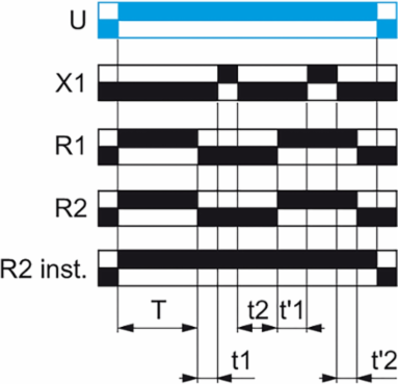

Function Available	A- Power on-delay relay-2 C/O, At- Power on-delay relay w/ pause/summation (X1)-2 C/O, Aw- Power on-delay relay w/ retrigger/restart-2 C/O, C- Off-delay relay w/ control signal-2 C/O, Ct- Off-delay relay w/ control signal and pause/summation-2 C/O, D- Symmetrical flashing relay (starting pulse-off)-2 C/O, Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-2 C/O, Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-2 C/O, Di- Symmetrical flashing relay (starting pulse-on)-2 C/O, Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-2 C/O, Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-2 C/O, H- Interval relay-2 C/O, Ht- Interval relay w/ pause/summation (X1)-2 C/O, Hw- Interval relay w/ retrigger/restart-2 C/O, Qg- Star-delta relay (2 CO outputs w/ same common)-2 C/O, Qgt- Star-delta relay (2 CO outputs w/ same common) w/ pause/summation-2 C/O, Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O, Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (X1)-2 C/O, W- Interval relay w/ control signal off-2 C/O, Wt- Interval relay w/ control signal off and pause/summation-2 C/O
Safety Reliability Data	B10d = 160000, MTTFd = 171.2 years
Status Led	Green LED backlight steady)dial pointer indication, Yellow LED steady)output relay energisedYellow LED fast flashing)timing in progress and output relay de-energisedYellow LED slow flashing)timing in progress and output relay energised
Time Delay Range	3...30 min, 30...300 min, 0.3...3 s, 3...30 h, 10...100 s, 1...10 s, 0.05...1 s, 30...300 s, 30...300 h, 3...30 s
Voltage Drift	+/- 0.2 %/V, +/- 0.2 %/V
Certificate Agency	RCM, CE, EAC, CSA, CCC, UL, GL
Carbon Footprint Of The Distribution Phase [A4]	0.0135471958, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0005875409
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	52 kg CO2 eq., 51.5032
Local Publishable Date	2026-03-26
Stocking Flag	Y
Use Carbon Footprint	51.5032
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Creepage Distance	4 kV/3 IEC 60664-1
Dielectric Strength	2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Housing Material	polycarbonate
Insulation Resistance	100 MOhm 500 V DC IEC 60664-1
Mounting Position	any position
Number Of Functions	22
Power Consumption In Va	3-3 VA 240 V AC
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony Timer Relays
Returnability	Yes
Software Version	EIME 5.7.0.2
Sustainable Packaging	Yes
Tightening Torque	0.6-1 N.m IEC 60947-1
Vibration Resistance	20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Supply Voltage Num 3	24...240 V AC/DC 50/60 Hz
Database Version	2018-03
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
Functional-unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	105.12
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27

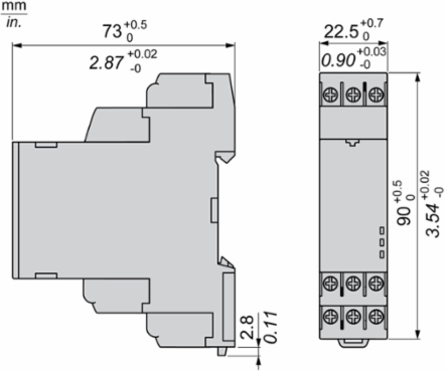

Width Nominal	22.5 mm
[Uimp] Rated Impulse Withstand Voltage	5 kV 1.2-50 µs IEC 60664-1
Nbr. Of Units In Pkg.	1
Take-back	No
Air Pollution (M3) Operational Energy Use [B6]	2216.72
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	51.5032
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	192.024
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	1028.64
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	897.84
Water Pollution (M3) Operational Energy Use [B6]	2125.2

Environment Attributes Main

Ambient Air Temperature For Operation	-20-60 °C, -20-60 °C
Directives	2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2502020EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2502020EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	53.5911136816
Environmental Disclosure	ENVPEP2502020EN
Ip Degree Of Protection	IP40 housing: conforming to IEC 60529IP20 terminals: conforming to IEC 60529IP50 front panel: conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Relative Humidity	95-95 % 25-55 °C
Pep Verification Date	2018-04-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
