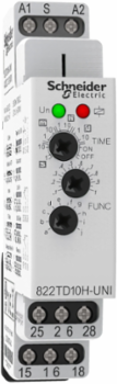

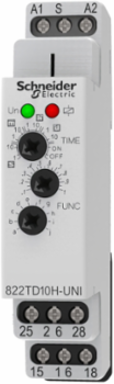

Schneider Electric 822TD10H-UNI time delay relay, Legacy, DPDT, 100 ms to 10 days, DIN mounting support, 15A, 12...240V AC DC
- MPN: 822TD10H-UNI
- PPN: SCH-822TD10H-UNI
CAD
$177.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The SE Relays 820 series, time delay relay offers 10 different timing functions with ultra-wide timing range of 10 ms to 10 days and meets most timing requirements. Universal voltage input of 12 to 240 VAC/VDC with contact ratings of 15A, 1/2hp at 1200VAC and 1hp at 240 VAC makes it suitable for wide range applications. Contact configaration is performed by silver alloy contacts as DPDT. Slim modular package 17.5mm and 35-mm DIN-rail mounting is ideal for tight spaces and allows easy installation. 2 LED status indicators shows input indication in green LED and output indication in red LED blinking light as timing status relay or red steady on light as energized relay status.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States

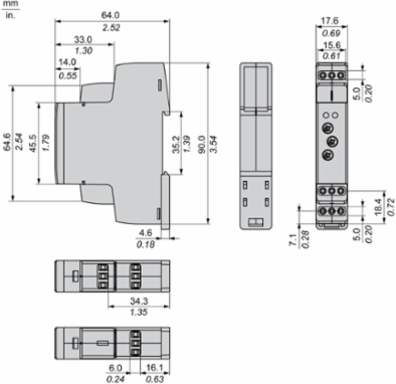

Depth64 mm
Complementary Attributes
- Maximum Power Consumption In W
- 1.5 W 24 V
- Minimum Pulse Duration
- 25 ms
Maximum Switching Voltage240 V
Minimum Switching Current100 mA 5 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 4000 V between input and output, 1000 V between open contacts
- Local Signalling
- 1 LED red, 1 LED green
- Certificate Agency
- UL, CE, WEEE, RoHS
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Awg Gauge
- AWG 14
- Control Type
- with adjustment knob front
- Mechanical Durability
- 15000000 cycles
- Overvoltage Category
- III conforming to IEC 60664-1
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Legacy
- Reset Time
- 150 ms maximum
- Sustainable Packaging
- Yes
- Temperature Drift
- 0.01 %/°C
- Time Delay Type
- multifunction
- Height Nominal
- 90 mm
- [Ie] Rated Operational Current
- 15 A at 240 V AC-1
- [Us] Rated Supply Voltage
- 12...240 V AC/DC 50...60 Hz
- Package Weight(Lbs)
- 95.254 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge 4 kV level 2 conforming to IEC 61000-4-2, electrostatic discharge 8 kV level 2 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test 10 V/m level 3 conforming to IEC 61000-4-3, surge immunity test 2 kV level 3 conforming to IEC 61000-4-5, surge immunity test 1 kV level 3 conforming to IEC 61000-4-5, fast transient bursts 2 kV level 3 conforming to IEC 61000-4-4, conducted RF disturbances 10 V, 0.15...80 MHz level 3 conforming to IEC 61000-4-6, immunity to microbreaks and voltage drops 30 %, 500 ms conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops 100 %, 20 ms conforming to IEC 61000-4-11
Time Delay Range100 ms...1 s, 1...10 s, 0.1...1 min, 1...10 min, 0.1...1 h, 1...10 h, 72 min...12 h, 1...10 d
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts MaterialAgNi
Electrical Durability30000 cycles
Mounting Support35 mm DIN rail conforming to IEC 60715
Power Consumption In Va2.5 VA 240 V
Product Or Component Typetime delay relay
Repeat Accuracy+/- 0.2 %+/- 0.2 %
ReturnabilityYes
Switch FunctionDPDT
Tightening Torque0.4-0.4 N.m
Voltage Range0.85...1.15 Un
Width Nominal17.6 mm
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs IEC 60664-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C, -20-55 °C
- Ip Degree Of Protection
- IP20 IEC 60529 terminals), IP40 IEC 60529 front panel)
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 95-95 %
Ambient Air Temperature For Storage-30-70 °C, -30-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- time delay relay
Range Of ProductLegacy
Output Attributes
- Nominal Output Current
- 15 A
Input Attributes
- Input Voltage
- 10 V
