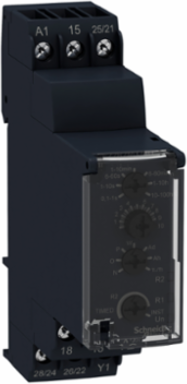

Schneider Electric RE22R2MJU Harmony Multifunction Timer Relay 8A 0.1s-100h 12V AC/DC
Schneider Electric RE22R2MJU Harmony Multifunction Timer Relay 8A 0.1s-100h 12V AC/DC
- MPN: RE22R2MJU
- PPN: SCH-RE22R2MJU
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$104.02/ EA
Description
This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Specifications
Complementary
- Power Consumption In W
- 0.5 W 12 V DC
- Contacts Type And Composition
- 1 C/O timed contact || 1 C/O timed or instantaneous contact
- Maximum Delay Response
- 100 ms
- Insulation Resistance
- 100 MOhm 500 V DC IEC 60664-1
- Power Consumption In Va
- 1.2-1.2 VA 12 V AC
- Maximum Switching Current
- 8 mA
- Net Weight
- 0.09 kg
- Voltage Drift
- +/- 0.2 %/V
- Maximum Switching Voltage
- 250 V
- [Us] Rated Supply Voltage
- 12 V AC/DC
- Time Delay Range
- 1...10 min || 6...60 min || 0.1...1 s || 6...60 s || 1...10 s || 1...10 h || 10...100 h
- Mounting Support
- 35 mm DIN rail IEC 60715
- Mechanical Durability
- 10000000 cycles
- Housing Material
- self-extinguishing
- [Uimp] Rated Impulse Withstand Voltage
- 5 kV 1.2-50 µs IEC 60664-1 || 5 kV IEC 61812-1
- Time Delay Type
- power on-delay || on-delay and off-delay || interval || off-delay || symmetrical flashing
- Supply Frequency
- 50...60 Hz +/- 5 %
Safety Reliability DataB10d = 190000 || MTTFd = 205.4 years
Setting Accuracy Of Time Delay+/- 10 % of full scale 25 °C IEC 61812-1
Control Typerotary knob front panel
Immunity To Microbreaks10 ms
Minimum Pulse Duration30 ms || 100 ms under load
Voltage Range0.9...1.2 Us
Mounting Positionany position in relation to normal vertical mounting plane
Reset Time120 ms on de-energisation
Connections - Terminalsscrew terminals, 2 x 1.5 mm² with cable end || screw terminals, 2 x 2.5 mm² without cable end
Temperature Drift+/- 0.05 %/°C
Minimum Switching Current10 mA 5 V
Electrical Durability100000 cycles resistive, 8 A 250 V, AC
Breaking Capacity2000 VA
Status Ledgreen LED flashing)timing in progress || green LED steady)power ON || yellow LEDrelay energised
Width22.5 mm
Tightening Torque0.6-1 N.m IEC 60947-1
Repeat Accuracy+/- 0.5 % IEC 61812-1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1401008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1401008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CSA || cULus || CE || EAC || GL || CCC || RCM
- Standards
- IEC 61000-6-1 || IEC 61812-1 || IEC 61000-6-4 || IEC 61000-6-3 || IEC 61000-6-2
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Vibration Resistance
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -30-60 °C
- Ip Degree Of Protection
- IP40 housing: conforming to IEC 60529 || IP20 terminal block: conforming to IEC 60529 || IP40 front face: conforming to IEC 60529
Ambient Air Temperature For Operation-20-60 °C
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 || electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 || immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 || immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 || conducted and radiated emissions class B conforming to EN 55022
Shock Resistance15 gn 11 ms IEC 60068-2-27
Directives2006/95/EC - low voltage directive || 2004/108/EC - electromagnetic compatibility
Relative Humidity93-93 %, without condensation IEC 60068-2-30
Specifications
- Discrete Output Type
- relay
- Product Or Component Type
- multifunction relay
- Device Short Name
- RE22
Range Of ProductHarmony Timer Relays
Nominal Output Current8 A
