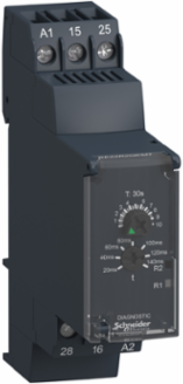

Schneider Electric RE22R2QEMT Harmony Timer Relay 8A 2CO 0.3...30s Star-Delta 380...415V AC
- MPN: RE22R2QEMT
- PPN: SCH-RE22R2QEMT
CAD
$100.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RE22 modular single function timer can be set between 0.3 and 30s." "It provides function Qe and it is mountable on DIN rail." "This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Selectable timing range offers a one stop solution for your power management system." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Discrete Output Type
- relay
- Product Or Component Type
- single function relay
- Device Short Name
- RE22
Range Of ProductHarmony Timer Relays
Nominal Output Current8 A
Complementary
- Safety Reliability Data
- B10d = 250000 || MTTFd = 273.9 years
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25 °C IEC 61812-1
- Maximum Delay Response
- 100 ms
- Insulation Resistance
- 100 MOhm 500 V DC IEC 60664-1
- Power Consumption In Va
- 15-15 VA 380 V AC
- Maximum Switching Current
- 8 A
- Net Weight
- 0.09 kg
- Voltage Drift
- +/- 0.2 %/V
- Maximum Switching Voltage
- 250 V AC
- [Us] Rated Supply Voltage
- 380...415 V AC 50/60 Hz
- Time Delay Range
- 0.3...30 s
- Overvoltage Category
- III IEC 60664-1
- Mounting Support
- 35 mm DIN rail IEC 60715
- Mechanical Durability
- 10000000 cycles
- Status Led
- green LED backlight steady)dial pointer indication || yellow LED steady)output relay energised || yellow LED fast flashing)timing in progress and output relay de-energised || yellow LED slow flashing)timing in progress and output relay energised
- Width
- 22.5 mm
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1
Contacts Type And Composition2 C/O timed contact, cadmium free
Creepage Distance4 kV/3 IEC 60664-1
Control Typerotary knob || diagnostic button
Immunity To Microbreaks10 ms
Switching Capacity In Va2000 VA
Voltage Range0.85...1.16 Us
Mounting Positionany position
Reset Time120 ms on de-energisation
Connections - Terminalsscrew terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Temperature Drift+/- 0.05 %/°C
Minimum Switching Current10 mA 5 V DC
Input Voltage<= 38 V
Electrical Durability100000 cycles, 8 A 250 V, AC-1 || 100000 cycles, 2 A 24 V, DC-1
Housing Materialself-extinguishing
[Uimp] Rated Impulse Withstand Voltage5 kV 1.2-50 µs IEC 60664-1
Time Delay Typestar-delta
Supply Frequency50...60 Hz +/- 5 %
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1401008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1401008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- EAC || GL || CSA || UL || CCC || RCM || CE
- Standards
- IEC 61812-1 || UL 508
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Vibration Resistance
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Directives
- 2006/95/EC - low voltage directive || 2004/108/EC - electromagnetic compatibility
- Relative Humidity
- 95-95 % 25-55 °C
Ambient Air Temperature For Operation-20-60 °C
Electromagnetic Compatibilityfast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 || conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 || fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 || immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 || immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 || surge immunity test - test level: 2 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 4 kV level 3 (common mode) conforming to IEC 61000-4-5
Shock Resistance15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
Pollution Degree3 IEC 60664-1
Ambient Air Temperature For Storage-40-70 °C
Ip Degree Of ProtectionIP40 housing: conforming to IEC 60529 || IP20 terminals: conforming to IEC 60529 || IP50 front panel: conforming to IEC 60529
