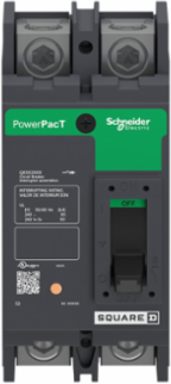

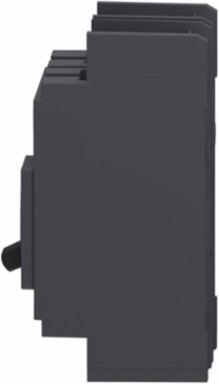

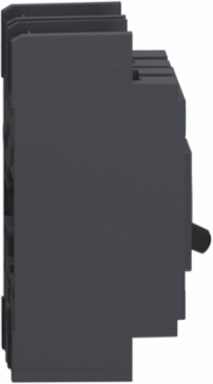

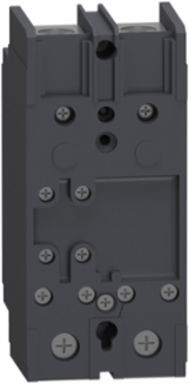

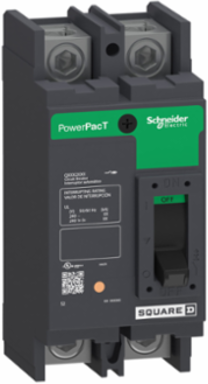

Square D QBM22175TN PowerPacT Q Circuit Breaker 175A 2-Pole 240V 10kA Thermal Magnetic
- MPN: QBM22175TN
- UPC: 785901565536
- PPN: SCH-QBM22175TN
- UNSPSC: 39121616
CAD
$701.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on the load side and terminal nuts on the line side. It has studs on the load end with no nuts and washers. This PowerPacT Q, 175A, 2 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 22 mm
- Height
- 6.47 in
- Product Name
- PowerPact Q
- Device Application
- distribution
Width3.00 in
Product Or Component Typecircuit breaker
RangePowerPact
Complementary
- Mounting Mode
- unit mount lug)
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz UL
- Mounting Support
- lug
- Magnetic Tripping Current
- 2400-2400 A
- Electrical Connection
- lugs, line || terminal nut, load
- Magnetic Hold Current
- 1200 A
- Circuit Breaker Application
- HACR rated
- Utilisation Category
- category A
- Continuous Current Rating
- 80 %
- Mechanical Durability
- 1000 cycles loaded || 5000 cycles no load
- Width
- 3.00 in
Network Frequency50/60 Hz
Height6.47 in
Tightening Torque28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
Breaking Capacity CodeB
Local Signalling1 trip indicator green)
[Uimp] Rated Impulse Withstand Voltage8 kV UL
Control Typeoperating handle
Wire Stripping Length22 mm
Line Rated Current175-175 A
Breaking Capacity10 kA 120/208 V AC 50/60 Hz UL || 10 kA 240 V AC 50/60 Hz UL
Poles Description2P
Depth3.93 in
Environment
- Ambient Air Temperature For Operation
- 40-70 °C
- Product Certifications
- UL || CSA || NOM
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406032EN
- Pvc Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant with Exemptions
