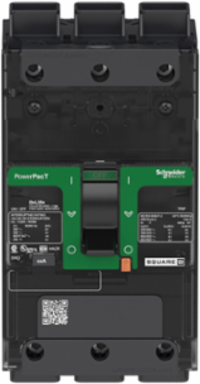

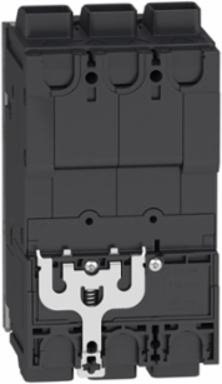

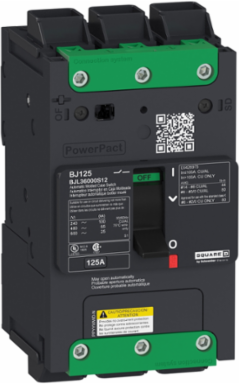

Square D BGL36000S12 PowerPacT B Automatic Switch 125A 3 Pole 600Y/347VAC 18kA
- MPN: BGL36000S12
- PPN: SCH-BGL36000S12
CAD
$3015.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT B-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction to, use the same accessories, and offer the same connection possibilities as the B-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 125A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT B automatic switches comply to UL and CSA standards. The switch includes a factory-set, nonadjustable magnetic trip point that activates during short-circuit conditions to protect the switch itself.
Documentation & Downloads
Specifications
Key Specifications

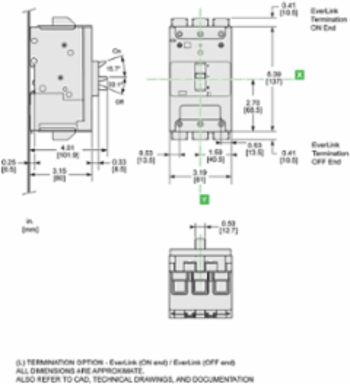

| Country of Origin | Mexico |
|---|
| Depth | 89 mm |
|---|
Physical Attributes
| Color | Gray RAL 7016) |
|---|
| Wire Stripping Length | 20 mm |
|---|
Complementary Attributes
| Line Rated Current | 125 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Connection | Everlink lug, line, Everlink lug, load |
| Carbon Footprint Of The Distribution Phase [A4] | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.3710910134283486, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 326 kg CO2 eq., 325.86084321646615 |
| Local Publishable Date | 2025-11-18 |
| Stocking Flag | N |
| Device Type | LV equipment - LV switch - disconnector |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1909 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Connection Pitch | 27 mm |
| Control Type | toggle |
| Electrical Durability | 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
| Local Signalling | flag (green) for presence of auxiliary contacts |
| Magnetic Tripping Current | 1320-1320 A |
| Mounting Mode | clip-on 35 x 15 mm symmetrical DIN rail)by screws plate) |
| Number Of Slots | 1 auxiliary switch OF plug-in)1 voltage release MN or MX plug-in)1 alarm switch SD plug-in) |
| Product Name | PowerPact B |
| Quality Labels | CE |
| Range | PowerPact |
| Software Version | v6.2.5-6 |
| Tightening Torque | 5-5 N.m 2.5-10 mm²9-9 N.m 16-95 mm² |
| Pep Code | ENVPEP2311047EN |
| Pep Verification Date | 2025-05-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 137 mm |
| Certificate Agency | UL |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 1.311 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Short-circuit Withstand | 65 kA 208Y/120 V UL 489, 65 kA 240 V UL 48935 kA 480Y/277 V UL 489, 35 kA 480 V UL 48918 kA 600 V UL 489 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 2.166183750813915 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 7 kg CO2 eq., 6.807459126449003 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 6 AWG...2/0 AWG fine stranded aluminium/copper14 AWG...3/0 AWG rigid or stranded aluminium/copper |
| Contact Position Indicator | yes |
| Device Application | distribution |
| Energy Efficiency Optimized | False |
| Magnetic Hold Current | 880 A |
| Mechanical Durability | 15000 cycles IEC 947-1 Annex K ed 5.2 |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | automatic switch |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 335 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Mexico, MX |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 55 |
| Width Nominal | 81 mm |
| [Ue] Rated Operational Voltage | 600Y/347 V AC 50/60 Hz UL 489 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536200020 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -50-85 °C, -50-85 °C |
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| 9 Mm Pitches | 9 |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) without derating5000 m with derating |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2311047EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 335.2055771071574 |
| Environmental Disclosure | ENVPEP2311047EN |
| Halogen Content Performance | Halogen free product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-05-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | automatic switch |
|---|
