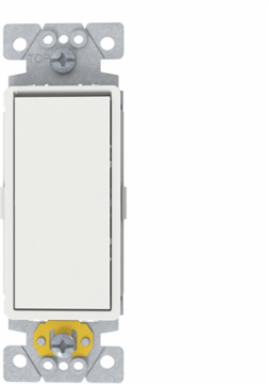

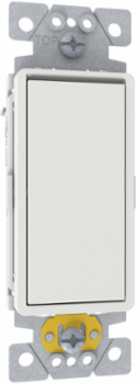

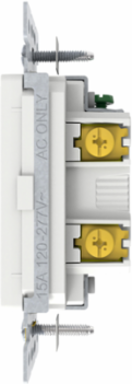

Schneider Electric SQR14106WH Switch, X Series, 15A, single pole, momentary, white

MPN: SQR14106WH
PPN: SCH-SQR14106WH

$26.43

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric X Series 15A Single-Pole Switch with side wire clamps. The rated operational voltage of this switch is 120V and 277V. Its matching mounting box can be recessed into the surface of the wall for flush mounting. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. The connection is screw terminals.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Vietnam

Physical Attributes

Color	White
Main Color Tint	white

Color Tint	white

Important Information Attributes

X Main Color Tint	white
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0481705228157115
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.2519800088209922
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Aesthetic Name	X Series
Earth Circuit	self earthing
Market Segment	residential
Mounting Mode	by screws
Network Type	AC
Number Of Modules	1
Number Of Rocker	1
Product Or Component Type	switch
Returnability	Yes
Surface Finish	Matte
Switch Function	momentary
Total Lifecycle Carbon Footprint	0.5 kg CO2 eq.
Main Color Tint	white
Pep Code	ENVPEP2606006EN
Pep Verification Date	2026-07-10
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	referent product
Functional-unit Quantity	1
Energy Model - Manufacturing [A1-a3]	Electricity mix; Production mix; low voltage; 2022; Vietnam, VN
Energy Model - Use [B6]	Electricity mix; Consumption mix; Low voltage; 2022; United States, US
Recyclability Potential In %	34
[Ie] Rated Operational Current Ac	15 A
Connections - Terminals	phase and neutral 2 screw terminal 14 AWG...12 AWG) copper
Package Weight(Lbs)	83.3 g
Warranty (In Months)	24
Customs Code	8536509065

Carbon Footprint Of The Distribution Phase [A4]	0.05349418092798738, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.05311969161653714, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0.1 kg CO2 eq., 0.08261325771771208
Local Publishable Date	2026-06-23
Stocking Flag	Y
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Actuator	rocker
Device Application	control
Energy Efficiency Optimized	False
Material	plastic: strap
Network Frequency	60 Hz
Number Of Gangs	1 gang
Number Of Poles	1
Product Availability	Stock - Normally stocked in distribution facility
Range	Square D X Series
Software Version	v6.3.4
Sustainable Packaging	No
Targeted Channel	distributor
Color Tint	white
Ac Current Rating	15 A
Database Version	2026-04
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Establish, support and interrupt the rated current I and rated voltage U for a wall-mounted installation, and for the reference service life of the product of 20 years.N/A
Functional-unit Unit	unit
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Certificate Agency	cULus
[Ue] Rated Operational Voltage	120 V
Nbr. Of Units In Pkg.	1
Take-back	No
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	0.4248

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.4893776618989402
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2606006EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Reach Regulation	Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2606006EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Verification Date	2026-07-10
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
