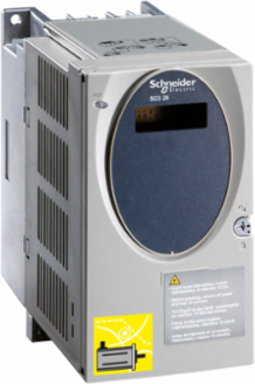

Schneider Electric SD326RU68S2 Motion Control Stepper Motor Drive 6.8 A, 3000 RPM, Single Phase

MPN: SD326RU68S2
PPN: SCH-SD326RU68S2
UNSPSC: 26111516

$1921.78

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This motion control stepper motor drive, designed by Schneider Electric, delivers reliable performance and precision in automation applications. With a power capacity of 6.8 A and a maximum speed of 3000 RPM, it effectively meets the demands of various motion control needs, ensuring smooth and accurate operation. Ideal for integrated drive solutions, this single-phase drive enhances the efficiency of complex systems while providing the durability and reliability synonymous with Schneider Electric's commitment to quality.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Germany, France
Depth	140 mm

Weight	1325 g

Communications & Management Attributes

Communication Interface	pulse/direction, Integrated

Complementary Attributes

Maximum Input Frequency	200 kHz 24 V optocoupler input signals, 200 kHz 5 V optocoupler input signals400 kHz ENC_A/ENC_B signal input
Maximum Voltage Drop	<1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load ENC+5V_OUT signal output, <1 V 50 mA load ENC+5V_OUT signal output, <1 V 50 mA load ENC+5V_OUT signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output<1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load ENC+5V_OUT signal output, <1 V 50 mA load readiness signal output
Maximum Leakage Current	30 mA IEC 60990-3
Maximum Motor Phase Current	6.8 A

Maximum Switching Current	200 mA readiness signal output), 50 mA 24 V output signals)RM-FAULT_OUT1.7 mA 24 V output signals)+BRAKE_OUT
Us Rated Supply Voltage	100...120 V - 15...10 %, 200...230 V - 15...10 %
Maximum Mechanical Speed	3000 rpm
Maximum Switching Voltage	30 V DC readiness signal output)

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Current Consumption	<= 0.2 mA 24 V control voltage, <= 0.2 mA 24 V control voltage<= 0.2 mA 24 V control voltage, <= 0.2 mA 24 V control voltage
Function Available	rotation monitoring, holding brake monitoring
Supply Voltage Description	single phase 115 V, single phase 230 V
Voltage State 0 Guaranteed	<= 5 V 24 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals<= 5 V 24 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals
Carbon Footprint Of The Distribution Phase A4	0.4654612188750932, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.5055331075986397, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	1 019 kg CO2 eq., 1019.3826348537897
Local Publishable Date	2026-01-12
Device Type	Motion - drive & motor
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	2
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Compatibility Code	SD326
Format Of The Drive	block
Marking	CE
Network Number Of Phases	1
Overvoltage Category	III
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium SD3
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Supply Voltage Type	AC/DC
Total Lifecycle Carbon Footprint	1 119 kg CO2 eq.
Vibration Resistance	1 gn (f= 13-150 Hz) conforming to IEC 60068-2-61.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
Database Version	2024-01
Height Nominal	145 mm
Nbr. Of Units In Pkg.	1
Short Circuit Current	0.5 kA
Functional Unit Description	To drive 3-phase stepper motors 70% of the time for 10 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1971

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibility	electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
Residual Ripple	<= 5 % 24 V control voltage), <= 5 % 24 V control voltage)<= 5 % 24 V control voltage), <= 5 % 24 V control voltage)
Supply Voltage Limits	100-120 V, 200-240 V
Certificate Agency	UL, cUL
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 1.9911118429064436
Carbon Footprint Of The Manufacturing Phase A1 To A3	96 kg CO2 eq., 96.4464595038018
Local Data Status	Publishable
Return Indicator	N
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI111103EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Advanced
Market Segmentation	Industrial
Associated Fuse Rating	10 A 115 V6 A 230 V
Device Short Name	SD326
Inrush Current	60 A
Network Frequency Limits	50-60 Hz - 15...10 %)
Nominal Power	280 W 115 V420 W 230 V
Phase	single phase
Product Or Component Type	motion stepper drive
Returnability	No
Software Version	v6.2.5-6
Sustainable Packaging	No
Type Of Cooling	fan
Voltage State 1 Guaranteed	15...30 V 24 V optocoupler input signals2.5...5.25 V 5 V optocoupler input signals
Data Source	extrapolated product
Width Nominal	72 mm
Customs Code	8504404000
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	98

Environment Attributes Main

Ambient Air Temperature For Operation	0-50 °C, 0-40 °C UL
Ip Degree Of Protection	IP20, on upper part: IP40 (without removal of protective film)
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1118.7912005269718
Environmental Disclosure	ENVPEP1111015EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1111015EN
Pcr Version	PCR-4-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI111103EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Relative Humidity	5-85 % without condensation
Pep Verification Date	2026-06-30
Psr Version	No PSR

General Attributes

Phase	single phase
Range Of Product	Lexium SD3

Product Or Component Type	motion stepper drive

ETIM

ETIM 8	EC001857
ETIM 10	EC001857

ETIM 9	EC001857

Output Attributes

Output Voltage	<= 30 V 24 V output signals), <= 30 V 24 V output signals)<= 30 V 24 V output signals), <= 30 V 24 V output signals)4.75...5.25 V ENC+5V_OUT signal output)
