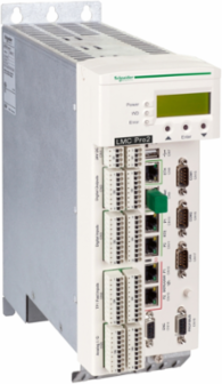

Schneider Electric LMC902CAA10000 Motion controller LMC902, 130 axis - Acc kit - Basic
Schneider Electric LMC902CAA10000 Motion controller LMC902, 130 axis - Acc kit - Basic
- MPN: LMC902CAA10000
- PPN: SCH-LMC902CAA10000
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Motion controller LMC902, 130 axis - Acc kit - Basic
Specifications
Complementary Attributes
- Integrated Connection Type
- 2 Ethernet port RJ45 Sercos, 1 CAN port SUB-D 9 CANopen, 1 USB port USB type A, 2 Ethernet port RJ45 RT-Ethernet (real-time), 1 Ethernet port RJ45 PacNet, 1 port SUB-D 9 Profibus DP, 1 COM1 serial link SUB-D 9 RS232, 1 COM2 serial link SUB-D 9 RS422/RS485, 1 port SUB-D 9 master encoder, 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T, FTP/HTTP
- Maximum Number Of I O Expansion Module
- 2
Maximum Leakage Current0.4 mA
Us Rated Supply Voltage24 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input, 100 µs touch probe input, 0.1 ms or 1 ms configurable interrupt input
- Programming Language
- SFC (sequential function chart), FBD (function block diagram), IL (instruction list), CFC (continuous function chart), ST (structured text), LD (ladder)
- Carbon Footprint Of The Distribution Phase A4
- 0.5870557185, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0575508798, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 2 060 kg CO2 eq., 2060.1
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Use Carbon Footprint
- 2060.1
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1411004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2001
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Power Consumption In W
- 36 W
- Product Or Component Type
- Motion controller
- Returnability
- Yes
- Software Version
- EIME v5.6.0.1
- Sustainable Packaging
- No
- Warranty In Months
- 18
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Reference Lifetime In Y2
- 10
- Energy Model Manufacturing A1 A3 2
- Energy model used: Germany
- Energy Model Use B6 2
- Electricity mix; AC; < 1kV; EU-27
- Offer Owner Code
- 190786
- Height Nominal
- 310 mm
- Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2
- 23384
- Net Use Of Fresh Water M3 Operational Energy Use B6 2
- 7469.7
- Radioactive Waste Disposed Of Kg Operational Energy Use B6 2
- 5.1298
- Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2
- 41145
- Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2
- 35913
- Air Pollution M3 Operational Energy Use B6 2
- 88668
- Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 2
- 8.5934
Persona Type NamesEnd User, Original Equipment Manufacturer
Memory Type256 kB NVRAM, 4 GB RAM DDR3L
Vibration Resistance3.5 mm 5-8.4 Hz, 10 m/s² 8.4-150 Hz
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 1.5551906158
Carbon Footprint Of The Manufacturing Phase A1 To A3117 kg CO2 eq., 117.4706744868
Certificate AgencyCSA, cULus, EAC, CE
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - motion controller
TraceabilityYes
Average Life Duration20 year(s)
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Number Of Axis130
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPacDrive 3
Shock Resistance150 m/s² 6 ms operation)IEC 60721-3-3
Supplypower supply 24 VDC, <1 A
Total Lifecycle Carbon Footprint2 180 kg CO2 eq.
Pep CodeENVPEP1411004EN
Pep Verification Date2020-10-01
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionTo perform motion control for applications 100% of the time for 10 years
Functional Unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh4204.8
Energy Model Installation A5 2Electricity mix; AC; < 1kV; EU-27
Energy Model End Of Life C1 C4 2Electricity mix; AC; < 1kV; EU-27
Pn1
Width Nominal100 mm
Hazardous Waste Disposed Of Kg Operational Energy Use B6 21.074
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 27681
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 235913
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 25232
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 25232
Water Pollution M3 Operational Energy Use B6 285009
Global Warming Kg Equivalent Co2 Operational Energy Use B6 22060.1
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2179.7704717009
- Circularity Profile
- ENVEOLI1411004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- motion controller
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2020-10-01
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation5-55 °C
Environmental DisclosureENVPEP1411004EN
Ip Degree Of ProtectionIP20IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411004EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- Motion controller
Range Of ProductPacDrive 3
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Number
- 16 digital output, 2 analog output
Discrete Output Current250 mA digital output
Surge Protection And Filtering Attributes
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input, 100 µs touch probe input, 0.1 ms or 1 ms configurable interrupt input
Input Attributes
- Analogue Input Type
- voltage analog input - 10...10 V, current analog input - 20...20 mA
- Discrete Input Number
- 20 digital input IEC 61131-2 Type 1, 4 interrupt input IEC 61131-2 Type 1, 16 touch probe input IEC 61131-2 Type 1
- Input Impedance
- 100000 Ohm analog input, 500 Ohm
- Analogue Input Resolution
- 12 bits
Discrete Input Current5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
Discrete Input Voltage0...6 V, 20...33 V
Analogue Input Number2
Discrete Input Voltage TypeDC
Specifications
- Country of Origin
- France
Depth243 mm
