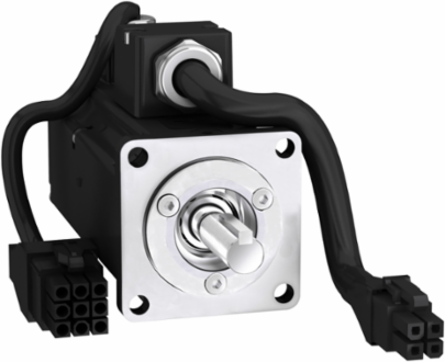

Schneider Electric BCH2MB0130CA5C servo motor BCH, Lexium 28, 40mm, 100W, 0.075kg.cm², without oil seal, smooth, leads connection

MPN: BCH2MB0130CA5C
PPN: SCH-BCH2MB0130CA5C

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$626.31/ EA

Qty:

Loading add to cart quantity...

Description

servo motor BCH, Lexium 28, 40mm, 100W, 0.075kg.cm², without oil seal, smooth, leads connection

Specifications

Physical Attributes

Motor Flange Size: 40 mm

Shaft Length25 mm

Complementary Attributes

Maximum Current Irms: 2.65 A LXM28... 0.1 kW, 220 V, 2.65 A LXM28... 0.1 kW, 110 V, 2.7 A

Line Rated Current: 0.89 A

Maximum Axial Force Fa: 40 N

Maximum Operational Altitude: 1000.0 m

Maximum Radial Force Fr: 85 N 3000 rpm

Minimum Operational Altitude: 0.0 m

Us Rated Supply Voltage220 V, 110 V

Maximum Ambient Air Temperature For Operation40.0 °C

Maximum Mechanical Speed5000 rpm

Maximum Permanent Current0.89 A

Minimum Ambient Air Temperature For Operation0.0 °C

Maximum In Rated Current0.89 A

Important Information Attributes

Persona Type Ids: EU, OM, OM8

Coefficient 1 1: -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm

Coefficient 1 5: -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5

Inertia: 0.0 kg.cm² of brake, 0.065 kg.cm² of motor

Nominal Torque: 0.32 N.m LXM28... 0.9 A, 220 V, single phase, 0.32 N.m LXM28... 0.9 A, 220 V, three phase, 0.32 N.m LXM28... 1.8 A, 110 V, single phase

Phase: single phase, three phase

Carbon Footprint Of The Distribution Phase A4: 0.1010263117, 0.1 kg CO2 eq.

Carbon Footprint Of The Installation Phase A5: 0.0049904839, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B6: 1 071 kg CO2 eq., 1070.8065815257

Local Publishable Date: 2026-01-12

Return Indicator: N

Stock Policy: 2

Serviceability: Yes

Field Service Division: IDIBS

Legacy Weee Scope: Out

Scope Perimeter: At least in Europe

End Of Life Doc Ref: ENVEOLI1504002EN

Reach Full Compliance Status Id: NOT_CONTAINING_SVHC

Rohs Eur In Scope: No

Rohs Eur Conformity Date: 2444

China Rohs In Scope: Yes

With Recycled Cardboard: No

Product Contributes To Saved And Avoided Emissions: No

Tier: 4

Function Option: Advanced

Market Segmentation: Industrial

Brake Pull In Power: 4.35 W

Circle Diameter Of The Mounting Holes: 46 mm

Coefficient 1 4: 7.11E-26 N.m/rpm4

Coefficient 2 0: 0 N.m

Continuous Power: 100 W

Derating Altitude Start: 1000.0 m

Derating Temperature Start: 40.0 °C

Distance Shaft Shoulder Flange: 3 mm

Feedback Type: 20 bits single turn absolute encoder

Maximum Operational Altitude: 1000.0 m

Minimum Operational Altitude: 0.0 m

Motor Voltage Drop Coefficient: 1

Mounting Support: asian standard flange

Number Of Motor Poles: 4.0

Number Of Mounting Holes: 4

Product Availability: Non-Stock - Not normally stocked in distribution facility

Returnability: No

Shaft Diameter: 8 mm

Sizing Reference: BCH2

Stator Electrical Time Constant: 0.88 ms 20 °C

Stator Resistance: 23.4 Ohm 20 °C

Temperature Copper Hot: 135 °C

Temperature Magnet Rt: 20 °C

Total Lifecycle Carbon Footprint: 1 075 kg CO2 eq.

Maximum In Rated Current: 0.89 A

Pep Code: ENVPEP1504002EN

Pep Verification Date: 2020-11-01

Type Of Verification For The Pep: Independent internal review

Functional Unit Description: To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years

Functional Unit Unit: unité (unit)

Reference Lifetime In Y2: 10

Energy Model Manufacturing A1 A3 2: Energy model used: China

Energy Model Use B6 2: Electricity mix; AC; < 1kV; EU-27

Offer Owner Code: 190786

Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder

Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3

Continuous Stall Torque0.32 N.m LXM28 0.9 A, 220 V, single phase, 0.32 N.m LXM28 0.9 A, 220 V, three phase, 0.32 N.m LXM28 1.8 A, 110 V, single phase

Nominal Speed3000 rpm LXM28... 0.9 A, 220 V, single phase, 3000 rpm LXM28... 0.9 A, 220 V, three phase, 3000 rpm LXM28... 1.8 A, 110 V, single phase, 3000 rpm

Peak Stall Torque0.96 N.m LXM28... 0.9 A, 220 V, single phase, 0.96 N.m LXM28... 0.9 A, 220 V, three phase, 0.96 N.m LXM28... 1.8 A, 110 V, single phase

Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18

Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0840961312

Carbon Footprint Of The Manufacturing Phase A1 To A34 kg CO2 eq., 4.4876784753

Local Data StatusPublishable

Global Commercial StatusCommercialised

Stocking FlagY

Device TypeMotion - drive & motor

TraceabilityYes

Average Life Duration15 year(s)

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold

Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant

Rohs Eur Full Compliance StatusCompliant

China Rohs Label1

Without Single Use PlasticNo

Tier Id4

Function Option IdADVANCED

Market Segmentation IdINDUSTRIAL

Product Kit IdentifierN

Centring Collar Diameter30 mm

Coefficient 1 25.62440546E-19 N.m/rpm²

Coefficient 1 63.2E-34 N.m/rpm6

Coefficient 2 18.75000000000026E-06 N.m/rpm

Continuous Stall Current0.81 A

Derating Temperature Scale40.0 °C

Device Short NameBCH2

Electrical Connectionfree lead

Holding Brakewithout

Minimum Ambient Air Temperature For Operation0.0 °C

Motor Figures230.0 V

Mounting Holes Diameter4.5 mm

Network Number Of Phases1

Number Of Motor Stacks2

Peak Nominal Torque0.96 N.m

Product Or Component Typeservo motor

Rotor Inertia0.075 kg.cm²

Shaft Endsmooth shaft

Software VersionEIME v5.6.0.1

Stator Inductance20.6 mH 20 °C

Sustainable PackagingNo

Temperature Magnet Hot100 °C

Torque Constant0.4 N.m/A 20 °C

Type Of Coolingnatural convection

Warranty In Months18

Database Version2016-11

Pcr VersionPCR-ed3-EN-2015 04 02

Data Sourceextrapolated product

Functional Unit Quantity1

Product Weight In G2783

Energy Consumption On Product Lifetime In Kwh2185.557

Energy Model Installation A5 2Electricity mix; AC; < 1kV; EU-27

Energy Model End Of Life C1 C4 2Electricity mix; AC; < 1kV; EU-27

Length Total100 mm

Environment Attributes Main

Ip Degree Of Protection: IP54 IM B5, IM V1, IP50 IM V3

Take Back: Nej

Recycled Metal Content At Cr Level: 0 %

Toxic Heavy Metal Free: Yes

Carbon Footprint: 1075.4843729277

Circularity Profile: ENVEOLI1504002EN

Eu Rohs Directive: Compliant

Packaging Without Single Use Plastic: No

Reach Regulation: Free of Substances of Very High Concern above the threshold

Pep Verification Date: 2020-11-01

Type Of Verification For The Pep: Independent internal review

Product CompatibilityLXM28... servo drive 0.1 kW, 220 V, single phase, LXM28... servo drive 0.1 kW, 220 V, three phase, LXM28... servo drive 0.1 kW, 110 V, single phase

Reach Free ShvcYes

China Rohs RegulationX

Mercury FreeYes

Ambient Air Temperature For Operation-20-40 °C

Environmental DisclosureENVPEP1504002EN

Packaging Made With Recycled CardboardNo

Reach Free Of SvhcYes

Pep CodeENVPEP1504002EN

Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phase: single phase, three phase

Product Or Component Typeservo motor

ETIM

ETIM 8: EC001851

ETIM 9EC001851

Output Attributes

Nominal Output Power: 100 W LXM28... 0.9 A, 220 V, single phase, 100 W LXM28... 0.9 A, 220 V, three phase, 100 W LXM28... 1.8 A, 110 V, single phase

Output Current 3s Peak2.7 A
