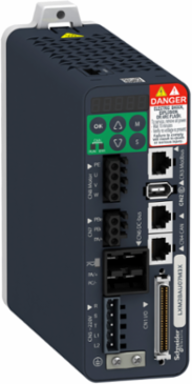

Schneider Electric LXM28AU02M3X Lexium 28 Motion Servo Drive, 200W, 240V, IP20, 1kg
Schneider Electric LXM28AU02M3X Lexium 28 Motion Servo Drive, 200W, 240V, IP20, 1kg
- MPN: LXM28AU02M3X
- PPN: SCH-LXM28AU02M3X
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1060.00/ EA
Description
This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated CANopen, CAN motion interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 4.5A, nominal power of 0.2kW and continuous power of 200W. It is furnished with spring terminal for electrical connection and RJ45 connectors (CN4) for CANopen/CAN motion. There is an electrical isolation between power/control. It offers CANopen and CAN motion communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (width) x 146mm (depth) x 150mm (height). It weighs 1kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (60mm, 1 motor stack) at 200W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Specifications
Environment
- Product Certifications
- cULus || CSA || CE
- Standards
- IEC 61800-5-1
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Ambient Air Temperature For Storage
- -25-65 °C
- Ip Degree Of Protection
- IP20
Ambient Air Temperature For Operation0-55 °C
Electromagnetic Compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Shock Resistance10 gn, type I IEC 60721-3-3
Relative Humidity5-95 % without condensation
Operating Altitude<= 1000 m without derating || > 1000...2000 m 1 % per 100 m
Complementary
- [Us] Rated Supply Voltage
- 200...240 V - 10...15 %)three phase || 200...240 V - 20...15 %)single phase
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Discrete Input Logic
- positive or negative CN1)
- Output Current 3S Peak
- 4.5 A 220 V
- Physical Interface
- RS485 Modbus Serial line slave
- Status Led
- 1 LED (red) charge || 1 LED (green) RUN || 1 LED (red) error
- Discrete Input Voltage
- 24 V DC logic
- Discrete Output Voltage
- 12...24 V DC
- Signalling Function
- servo status and fault codes five 7-segment display units
- Output Current 3S Peak 2
- 4.5 A 220 V
- Network Number Of Phases
- three phase || single phase
- Output Current 3S Peak 3
- 4.5 A 220 V
- Electrical Connection
- spring terminal 0.82...1 mm², AWG 18 L1-L2) || spring terminal 0.82...1 mm², AWG 18 R, S, T) || spring terminal 0.82...1 mm², AWG 18 U, V, W, PE) || spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)
- Switching Frequency
- 16 kHz
- Type Of Cooling
- natural convection
- Method Of Access
- slave
- Safety Function
- STO (safe torque off), integrated
- Output Voltage
- <= power supply voltage
- Emc Filter
- without EMC filter
- Width
- 55 mm
- Depth
- 146 mm
- Continuous Output Current
- 1.5 A 16 kHz
- Analogue Input Type
- V_REF voltage analog input - 10...10 V 10 kOhm 14 bits || T_REF voltage analog input
- Supply Frequency
- 50/60 Hz - 5...5 %
Network Frequency47.5...63 Hz
Absolute Accuracy Error0.1 %
Height150 mm
Electrical Isolationbetween power and control
Product Compatibilityservo motor BCH2 60 mm, 1 200 W
Discrete Output Number5 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1)
Transmission Rate250 kbit/s 100-250 m CANopen, CANmotion || 500 kbit/s 4-100 m CANopen, CANmotion || 1 Mbit/s 4-4 m CANopen, CANmotion
Discrete Input Number8 programmable CN1) || 1 pulse train input (PTI) CN1) || 2 fast capture CN1) || 1 safety function STO CN9)
MarkingCSA || cULus || CE
Connector TypeRJ45 CN4)CANopen, CANmotion
Net Weight1 kg
Communication InterfaceCANopen, integrated || CANmotion, integrated
Analogue Input Number2
Discrete Output Logicpositive or negative CN1)
Supply Voltage Limits200-255 V three phase || 170-255 V single phase
Control Signal Typeservo motor encoder feedback CN2
Number Of Addresses1-127 CANopen, CANmotion
Operating Positionvertical
Maximum Leakage Current1.3 mA
Overvoltage CategoryIII
Nominal Power0.2 kW 220 V 16 kHz
Protection Typeagainst reverse polarity inputs signal || against short-circuits outputs signal || overcurrent motor || overvoltage motor || undervoltage motor || overheating motor || overload motor || overspeed motor
Continuous Power200 W 220 V
Safety LevelSIL 2 IEC 61800-5-2 2007 || SIL 2 IEC 61508-1 2010 || PL d/category 3 ISO 13849-1 2008 || SIL 2 ISO 13849-1 2009/AC || SIL 2 IEC 60204-1 2006 || SIL 2 IEC 60204-1 2009/A1 || SIL 2 IEC 60204-1 2010/AC || SIL 2 IEC 62061 2012
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409001EN
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1409001EN
Specifications
- Line Current
- 2.4 A 226.8 % 220 V, single phase || 2.4 A 200.7 % 220 V, three phase
- Format Of The Drive
- compact housing
- Device Short Name
- LXM28A
Range Of ProductLexium 28
Product Or Component Typemotion servo drive
