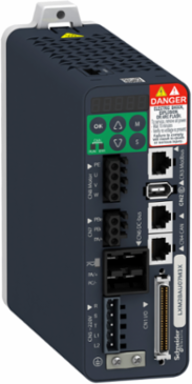

Schneider Electric LXM28AUA5M3X Lexium 28 Motion Servo Drive, 50W, 200-240V, Single/Three Phase, IP20
- MPN: LXM28AUA5M3X
- PPN: SCH-LXM28AUA5M3X
CAD
$951.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The LXM28AUA5M3X Lexium 28 Motion Servo Drive from Schneider Electric represents a cutting-edge solution in motion control technology. Operating at 50W and designed for versatility, this servo drive can function effectively across both single and three-phase inputs at a voltage range of 200-240V. With its IP20 rating, it is engineered for use in environments where dust and moisture are minimal, making it an ideal choice for various automation applications. The Lexium 28 series is recognized for its precision and reliability, ensuring enhanced performance in automation tasks, ultimately driving efficiency and productivity in industrial settings.
Documentation & Downloads
Specifications
Additional
- Power
- 50 W 220 V
- Continuous Output Current
- 0.64 A 16 kHz
- Supply Voltage
- 200-240 V three phase, 200-240 V single phase
- Supply Frequency
- 50/60 Hz ±5%
- Phase
- Single phase, Three phase
- Overvoltage Category
- III
- Electrical Connection
- Spring terminal 0.82-1 mm², AWG 18
- Weight
- 1 kg (2.20 lb)
- Storage Temperature
- -25 to 65 °C (-13 to 149 °F)
- Material
- Copper (shielded motor cable)
- Safety Function
- STO (Safe Torque Off), integrated
- Product Certifications
- CE, CSA, cULus
- Cooling Type
- Natural convection
- Discrete Output Voltage
- 12-24 V DC
- Communication Interface
- CANopen, CANmotion integrated, RS485 Modbus Serial slave
Nominal Power0.05 kW 220 V 16 kHz
Output Current 3s Peak2 A 220 V
Supply Voltage Limits200-255 V three phase, 170-255 V single phase
Network Frequency47.5-63 Hz
Switching Frequency16 kHz
Maximum Leakage Current1.3 mA
Dimensions (WxHxD)55 mm x 150 mm x 146 mm (2.17 in x 5.91 in x 5.75 in)
Operating Temperature0-55 °C (32-131 °F)
Operating AltitudeUp to 1000 m (3280.84 ft) without derating; 1% per 100 m for 1000-2000 m
IP RatingIP20
Safety LevelSIL 2 IEC 61800-5-2 2007, PL d/category 3 ISO 13849-1 2008
Electromagnetic CompatibilityConducted emission Level 3 Category C3 IEC 61800-3
Discrete Input Voltage24 V DC logic
Connector TypeRJ45 (CANopen, CANmotion)
