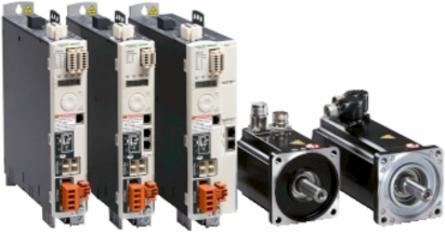

Schneider Electric LXM32MU45M2 Lexium 32 Motion Servo Drive, 4.5A, 0.15-0.3kW, IP20, 68mm Width
- MPN: LXM32MU45M2
- PPN: SCH-LXM32MU45M2
CAD
$1806.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture, 2 safety, 4 logic discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V (single phase), a continuous output current of 1.5A at 8kHz and a continuous power of 500W at 230V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. CANopen, CANmotion, Ethernet/IP, EtherCAT, Profibus, DeviceNet possible with option card. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.7kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motor BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia
Depth237 mm
Communications & Management Attributes
- Communication Interface
- Modbus TCP, with separated communication card, CANopen, with separated communication card, CANmotion, with separated communication card, Ethernet/IP, with separated communication card, EtherCAT, with separated communication card, Profibus, with separated communication card, Profinet, with separated communication card, Analog I/O, with separated communication cardDigital I/O, Integrated
Complementary Attributes
- Line Rated Current
- 1.5 A
- Maximum Current Irms
- 3.0 A
- Maximum Operational Altitude
- 2000.0 m
Maximum Ambient Air Temperature For Operation50.0 °C
Maximum Leakage Current30 mA
Minimum Ambient Air Temperature For Operation0.0 °C
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Contact Bounce Time
- <= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B2 µs CAP0.25 µs...1.5 ms DI
- Electrical Connection
- terminal 3 mm², 12 AWG CN8), terminal 5 mm², 10 AWG CN1), terminal 5 mm², 10 AWG CN10)
- Line Current
- 2.6 A 85 % 115 V, with external line choke 5 mH, 3.4 A 100 % 230 V, with external line choke 5 mH, 2.9 A 173 % 115 V, without line choke, 2.9 A 181 % 230 V, without line choke
- Response Time
- <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B
- Supply Voltage
- 100-120 V single phase, 200-240 V single phase
- Supply Voltage Limits
- 85-132 V, 170-264 V
- Certificate Agency
- CSA, UL, TÜV
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3077174081, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.014313007
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 429 kg CO2 eq., 429.1872791519
- Local Publishable Date
- 2025-12-19
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI110605EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1907
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Braking Current
- 50 mA
- Continuous Power
- 200 W 115 V500 W 230 V
- Derating Altitude Start
- 1000.0 m
- Drive Voltage Drop Coefficient
- 0.9
- Emc Filter
- integrated
- Environmental Characteristic
- classes 3C1 conforming to IEC 60721-3-3
- Format Of The Drive
- book
- Maximum Operational Altitude
- 2000.0 m
- Network Frequency
- 47.5...63 Hz
- Nominal Power
- 0.15 kW 115 V 8 kHz0.3 kW 230 V 8 kHz
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protection Type
- against reverse polarity inputs signalagainst short-circuits outputs signal
- Returnability
- No
- Sampling Duration
- 0.25 msDI 0.25 ms discrete
- Signalling Function
- display of faults 7 segments
- Status Led
- 1 LED (Red) servo drive voltage
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 453 kg CO2 eq.
- Type Of Cooling
- natural convection
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 270 mm
- Maximum [In] Rated Current
- 1.5 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1090
- Customs Code
- 8504404000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Control Signal Typeservo motor encoder feedbackpulse train output (PTO) RS422 <500 kHz <100 mpulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m, pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m
Electromagnetic Compatibilityconducted EMC, class A group 1 EN 55011, conducted EMC, class A group 2 EN 55011conducted EMC, environment 2 category C3 EN/IEC 61800-3, conducted EMC, category C2 EN/IEC 61800-3, conducted EMC, environments 1 and 2 EN/IEC 61800-3, electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-31.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, radiated EMC, class A group 2 EN 55011, radiated EMC, category C3 EN/IEC 61800-3
Nominal Voltage115 V single phase, 230 V single phase
Safety FunctionSTO (safe torque off), IntegratedSS1 (safe stop 1), with separated eSM safety card, SS2 (safe stop 2), with separated eSM safety card, SLS (safe limited speed), with separated eSM safety card, SOS (safe operating stop), with separated eSM safety card
Supply Voltage Descriptionsingle phase 230 V, single phase 115 V
Tightening TorqueCN8 0.5-0.5 N.mCN1 0.7-0.7 N.m, CN10 0.7-0.7 N.m
[Us] Rated Supply Voltage115 V100...120 V - 15...10 %, 200...240 V - 15...10 %
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.1134582133, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 21.9435464697
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Compatibility CodeLXM32M
Derating Altitude Scale90.0 m
Device Short NameLXM32M
Electrical Isolationbetween power and control
Emc Filter Compatibilitytype 020
Field Weakeningfalse
MarkingCE
Minimum Ambient Air Temperature For Operation0.0 °C
Network Number Of Phases1
Operating Positionvertical +/- 10 degree
Phasesingle phase
Product Or Component Typemotion servo drive
Range Of ProductLexium 32
Safety LevelSIL 3 EN/IEC 61508PL = e ISO 13849-1
Shock Resistance15 gn 11 ms EN/IEC 60028-2-27
Software VersionEIME v5.8.1
Supply Frequency50/60 Hz - 5...5 %
Switching Frequency8 kHz
Type Of Cablesingle-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
Vibration Resistance1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
Pep CodeENVPEP110705EN
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh876
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal68 mm
Number Of Inputs/Outputs4 DI + 2 CI + 3 DO
Package Weight(Lbs)2.192 kg
Warranty (In Months)18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1090
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C UL
- Environmental Disclosure
- ENVPEP110705EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- servo motor BSH 55 mm, 1
- Relative Humidity
- Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1
Take BackNo
China Rohs RegulationX
Carbon Footprint452.5663142501
Circularity ProfileENVEOLI110605EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP110705EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium 32
Product Or Component Typemotion servo drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Discrete Output Voltage
- <= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC
- Output Voltage
- <= power supply voltage, <= power supply voltage
- Discrete Output Logic
- positive or negative DO)EN/IEC 61131-2
- Discrete Output Type
- logic DO)24 V DC
Output Current 3s Peak3.0 A, 3 A 115 V 5 s4.5 A 230 V 5 s
Continuous Output Current1.5 A 8 kHz
Discrete Output Number3
Response Time On Output250 µs DO)discrete
Surge Protection And Filtering Attributes
- Emc Filter
- integrated
Emc Filter Compatibilitytype 020
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Logic
- positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1, positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
- Discrete Input Voltage
- 24 V DC capture, 24 V DC logic, 24 V DC safety
Discrete Input Number2 capture, 2 safety4 logic
Discrete Input Typecapture CAPlogic DIsafety compliment of STO_A, compliment of STO_B
