Schneider Electric VW3A5104 Altivar Motor Choke, 215A, IP00, Set of 3

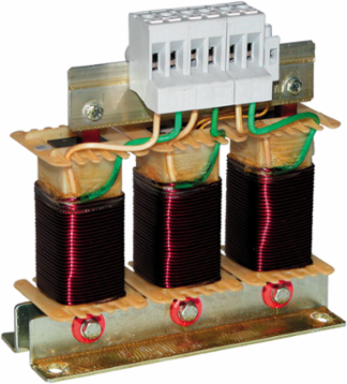

Altivar Motor Choke, 215A, IP00, Set of 3
  • MPN: VW3A5104
  • PPN: SCH-VW3A5104

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$941.58/ EA

    Description

    This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 215A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 15.5kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current. It is sold in indivisible quantity of 3.

    Specifications

    Environment

    Ambient Air Temperature For Storage
    -25-70 °C
    Ip Degree Of ProtectionIP20 with kits VW3A9612,613) || IP00

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    X
    Mercury Free
    Yes
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of Svhc
    Yes
    Rohs Exemption InformationYes
    Toxic Heavy Metal FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold

    Complementary

    Maximum Output Frequency
    100 Hz
    Maximum Motor Cable Length
    150 m shielded cable 30-45 kW 200...240 V 1 || 300 m unshielded cable 30-45 kW 200...240 V 1 || 200 m shielded cable 5.5-18.5 kW 380...480 V 1 || 300 m unshielded cable 5.5-18.5 kW 380...480 V 1 || 150 m shielded cable 22-30 kW 380...480 V 1 || 300 m unshielded cable 22-30 kW 380...480 V 1 || 150 m shielded cable 45-75 kW 380...480 V 1 || 300 m unshielded cable 45-75 kW 380...480 V 1 || 150 m shielded cable 2.2-7.5 kW 500...600 V 1 || 250 m unshielded cable 2.2-7.5 kW 500...600 V 1 || 250 m shielded cable 2.2-7.5 kW 500...600 V 2 || 400 m unshielded cable 2.2-7.5 kW 500...600 V 2 || 100 m shielded cable 2.2-30 kW 500...690 V 1 || 150 m unshielded cable 2.2-30 kW 500...690 V 1 || 150 m shielded cable 11-30 kW 500...690 V 2 || 250 m unshielded cable 11-30 kW 500...690 V 2 || 150 m shielded cable 30-160 kW 500...690 V 1 || 250 m unshielded cable 30-160 kW 500...690 V 1 || 250 m shielded cable 30-160 kW 500...690 V 2 || 300 m unshielded cable 30-90 kW 500...690 V 2 || 400 m unshielded cable 90-160 kW 500...690 V 2 || 200 m shielded cable 37-37 kW 380...480 V 1 || 300 m unshielded cable 37-37 kW 380...480 V 1 || 200 m shielded cable 90-90 kW 380...480 V 1 || 300 m unshielded cable 90-90 kW 380...480 V 1
    Thermal Losses
    430 W
    Dv/Dt500 V/µs 400 V || 750 V/µs 500 V || 1000 V/µs 690 V
    Ambient Air Temperature For Operation-10-50 °C
    Net Weight15.5 kg

    Specifications

    Sale Per Indivisible Quantity
    3
    Electrical Connection
    tag connector M10
    [In] Rated Current
    215 A
    Product Or Component Type
    motor choke
    Product CompatibilityATV61HD11N4 || ATV61HD15N4 || ATV61HD18N4 || ATV61HU22S6X || ATV61HU30S6X || ATV61HU40S6X || ATV61HU55N4 || ATV61HU55S6X || ATV61HU75N4 || ATV61HU75S6X || ATV61WD11N4 || ATV61WD11N4C || ATV61WD15N4 || ATV61WD15N4C || ATV61WD18N4 || ATV61WD18N4C || ATV61WU55N4 || ATV61WU55N4C || ATV61WU75N4 || ATV61WU75N4C || ATV71HD11N4 || ATV71HD11Y || ATV71HD15N4 || ATV71HD18N4 || ATV71HU15S6X || ATV71HU22S6X || ATV71HU30S6X || ATV71HU40S6X || ATV71HU55N4 || ATV71HU55S6X || ATV71HU75N4 || ATV71HU75S6X || ATV71PD11N4Z || ATV71PU55N4Z || ATV71PU75N4Z || ATV71WD11N4 || ATV71WD15N4 || ATV71WD18N4 || ATV71WU55N4 || ATV71WU75N4 || ATV212HU15N4 || ATV61HD15Y || ATV61HD18Y || ATV61HD22N4 || ATV61HD22Y || ATV61HD30N4 || ATV61HD30Y || ATV61HD37N4 || ATV61WD22N4 || ATV61WD22N4C || ATV61WD30N4 || ATV61WD30N4C || ATV61WD37N4 || ATV61WD37N4C || ATV71HD15Y || ATV71HD18Y || ATV71HD22N4 || ATV71HD22Y || ATV71HD30Y || ATV71HD37N4 || ATV71WD30N4 || ATV71WD37N4 || ATV630 variable speed drive - 2.2 kW, 500...690 V three phase || ATV630 variable speed drive - 3 kW, 500...690 V three phase || ATV630 variable speed drive - 4 kW, 500...690 V three phase || ATV630 variable speed drive - 5.5 kW, 500...690 V three phase || ATV630 variable speed drive - 7.5 kW, 500...690 V three phase || ATV630 variable speed drive - 11 kW, 500...690 V three phase || ATV930 variable speed drive - 2.2 kW, 500...690 V three phase || ATV930 variable speed drive - 3 kW, 500...690 V three phase || ATV930 variable speed drive - 4 kW, 500...690 V three phase || ATV930 variable speed drive - 5.5 kW, 500...690 V three phase || ATV930 variable speed drive - 7.5 kW, 500...690 V three phase || ATV930 variable speed drive - 11 kW, 500...690 V three phase || ATV630 variable speed drive, 3 hp, 600 V three phase || ATV630 variable speed drive, 5 hp, 600 V three phase || ATV630 variable speed drive, 7.5 hp, 600 V three phase || ATV630 variable speed drive, 10 hp, 600 V three phase || ATV630 variable speed drive, 15 hp, 600 V three phase || ATV930 variable speed drive, 3 hp, 600 V three phase || ATV930 variable speed drive, 5 hp, 600 V three phase || ATV930 variable speed drive, 7.5 hp, 600 V three phase || ATV930 variable speed drive, 10 hp, 600 V three phase || ATV930 variable speed drive, 15 hp, 600 V three phase || ATV212HD15M3X || ATV212WD15N4 || ATV212WD15N4C || ATV61HC11Y || ATV61HC13Y || ATV61HC16Y || ATV61HD30M3X || ATV61HD37M3X || ATV61HD37Y || ATV61HD45M3X || ATV61HD45N4 || ATV61HD45Y || ATV61HD55N4 || ATV61HD55Y || ATV61HD75N4 || ATV61HD75Y || ATV61HD90N4 || ATV61HD90Y || ATV61QC11N4 || ATV61QC13Y || ATV61WD45N4 || ATV61WD45N4C || ATV61WD55N4 || ATV61WD55N4C || ATV61WD75N4 || ATV61WD75N4C || ATV61WD90N4 || ATV61WD90N4C || ATV71HC11Y || ATV71HC13Y || ATV71HD30M3X || ATV71HD37M3X || ATV71HD37Y || ATV71HD45M3X || ATV71HD45N4 || ATV71HD45Y || ATV71HD55N4 || ATV71HD55Y || ATV71HD75N4 || ATV71HD75Y || ATV71HD90N4 || ATV71HD90Y || ATV71QC11Y || ATV71QD90N4 || ATV71WD45N4 || ATV71WD55N4 || ATV71WD75N4 || ATV630 variable speed drive - 15 kW, 500...690 V three phase || ATV630 variable speed drive - 18.5 kW, 500...690 V three phase || ATV630 variable speed drive - 22 kW, 500...690 V three phase || ATV630 variable speed drive - 30 kW, 500...690 V three phase || ATV630 variable speed drive - 37 kW, 500...690 V three phase || ATV630 variable speed drive - 45 kW, 500...690 V three phase || ATV630 variable speed drive - 55 kW, 500...690 V three phase || ATV630 variable speed drive - 75 kW, 500...690 V three phase || ATV630 variable speed drive - 90 kW, 500...690 V three phase || ATV930 variable speed drive - 15 kW, 500...690 V three phase || ATV930 variable speed drive - 18.5 kW, 500...690 V three phase || ATV930 variable speed drive - 22 kW, 500...690 V three phase || ATV930 variable speed drive - 30 kW, 500...690 V three phase || ATV930 variable speed drive - 37 kW, 500...690 V three phase || ATV930 variable speed drive - 45 kW, 500...690 V three phase || ATV930 variable speed drive - 55 kW, 500...690 V three phase || ATV930 variable speed drive - 75 kW, 500...690 V three phase || ATV930 variable speed drive - 90 kW, 500...690 V three phase || ATV630 variable speed drive, 20 hp, 600 V three phase || ATV630 variable speed drive, 25 hp, 600 V three phase || ATV630 variable speed drive, 30 hp, 600 V three phase || ATV630 variable speed drive, 40 hp, 600 V three phase || ATV630 variable speed drive, 50 hp, 600 V three phase || ATV630 variable speed drive, 60 hp, 600 V three phase || ATV630 variable speed drive, 75 hp, 600 V three phase || ATV630 variable speed drive, 100 hp, 600 V three phase || ATV930 variable speed drive, 20 hp, 600 V three phase || ATV930 variable speed drive, 25 hp, 600 V three phase || ATV930 variable speed drive, 30 hp, 600 V three phase || ATV930 variable speed drive, 40 hp, 600 V three phase || ATV930 variable speed drive, 50 hp, 600 V three phase || ATV930 variable speed drive, 60 hp, 600 V three phase || ATV930 variable speed drive, 75 hp, 600 V three phase || ATV930 variable speed drive, 100 hp, 600 V three phase
    Product Specific Applicationoutput filter
    Range CompatibilityAltivar 61Q || Altivar 71Q || Altivar 212 || Altivar 71 || Altivar Process ATV600 || Altivar Process ATV900 || Altivar 61
