Line/Motor Choke 4 mH 10 A 3 Phase 65 W
Schneider Electric

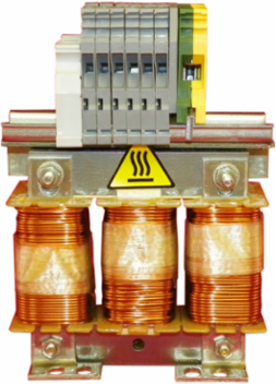

Schneider Electric VW3A4552 Line/Motor Choke 4 mH 10 A 3 Phase 65 W

  • MPN: VW3A4552
  • PPN: SCH-VW3A4552
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $497.18

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 10A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 4mH. It weighs 3kg and its dimensions are, 130mm wide, 155mm high, 90mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, Czechia, Germany, France, Hungary, United States
    Depth90 mm

    Complementary Attributes

    Line Rated Current
    10 A
    Minimum Clearance Distance
    5.5 mm IEC 60664
    Maximum Voltage Drop At Rated Load5 %

    Important Information Attributes

    Device Application
    reduction of current harmonics, reduction of overvoltages at motor terminals
    Vibration Resistance
    1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Product Kit Identifier
    N
    Electrical Insulation Class
    class F
    Max Current
    1.65 x nominal current 60 s)
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Altivar
    Shock Resistance
    15 gn 11 ms IEC 60068-2-27
    Sustainable Packaging
    No
    Value Of Inductance
    4 mH
    Width Nominal
    130 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Environmental Characteristic3B1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3S1 conforming to IEC 721-3-3
    Certificate AgencyEN 50178, IEC 60076 (with HD398), VDE 0160 level 1
    Local Publishable Date2026-02-06
    Stocking FlagN
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1920
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Electrical Connectionterminal 2.5 mm² / AWG 12, 0.4-0.6 N.m
    Leakage Distance11.5 mm IEC 60664
    Phasethree phase
    Product Or Component Typeline/motor choke
    ReturnabilityYes
    Supply Frequency50...60 Hz
    Thermal Losses65 W
    Height Nominal155 mm
    Accessory / Separate Part Categoryprotection accessories
    Package Weight(Lbs)3.440 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    45-55 °C (with current derating of 2 % per °C), 0-45 °C (without current derating)
    Ip Degree Of Protection
    choke IP00, terminals IP20
    Product Compatibility
    ATV31CU30N4 - motor choke - 1 per drive, ATV31CU40N4 - motor choke - 1 per drive, ATV312HU22N4 - motor choke - 1 per drive, ATV312HU30N4 - motor choke - 1 per drive, ATV312HU40N4 - motor choke - 1 per drive, ATV312HU40S6 - motor choke - 1 per drive, ATV312HU55S6 - motor choke - 1 per drive, ATV32HU22N4 - line choke - 1 per drive, ATV32HU30N4 - line choke - 1 per drive, ATV32HU40N4 - line choke - 1 per drive, variable speed drive ATV310 2.2 kW - motor choke - 1 per drive, variable speed drive ATV310 3 kW - motor choke - 1 per drive, variable speed drive ATV340 2.2 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV340 3 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV340 4 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV320 3 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 4 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 1.5 kW 200...240 V - single phase - motor choke - 1 per drive, variable speed drive ATV320 0.37 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 0.55 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 0.75 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 1.1 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 1.5 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 2.2 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 3 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 4 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 1.1 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 1.5 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 0.18 kW 200...240 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 0.37 kW 200...240 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 0.55 kW 200...240 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 0.75 kW 200...240 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 1.1 kW 200...240 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 1.5 kW 200...240 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 0.75 kW 525...600 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 1.5 kW 525...600 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 2.2 kW 525...600 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 4 kW 525...600 V - three phase - motor choke - 1 per drive, variable speed drive ATV930 7.5 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 600 V - three phase - line choke - 5 hp - 1 per drive, variable speed drive ATV930 600 V - three phase - line choke - 7.5 hp - 1 per drive, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 5.5 kWvariable speed drive ATV340 1.5 kW 380...480 V - line choke - 1 per drive, ATV31CU22N4 - line choke - 1 per drive, ATV31CU22N4 - motor choke - 1 per drive, ATV31CU30N4 - line choke - 1 per drive, ATV31CU40N4 - line choke - 1 per drive, ATV61HU15M3 - line choke - 1 per drive, ATV61HU22M3 - line choke - 1 per drive, ATV61HU22N4 - line choke - 2 per drive, ATV61HU30N4 - line choke - 1 per drive, ATV61HU40N4 - line choke - 1 per drive, ATV61HU75Y - line choke - 1 per drive, ATV61WU22N4 - line choke - 1 per drive, ATV61WU22N4C - line choke - 1 per drive, ATV61WU30N4 - line choke - 1 per drive, ATV61WU30N4C - line choke - 1 per drive, ATV61WU40N4 - line choke - 1 per drive, ATV61WU40N4C - line choke - 2 per drive, ATV71HD55Y - line choke - 2 per drive, ATV71HD75Y - line choke - 1 per drive, ATV71HU15M3 - line choke - 1 per drive, ATV71HU22M3 - line choke - 1 per drive, ATV71HU22N4 - line choke - 1 per drive, ATV71HU30N4 - line choke - 1 per drive, ATV71HU40N4 - line choke - 1 per drive, ATV71PU22N4Z - line choke - 1 per drive, ATV71PU30N4Z - line choke - 1 per drive, ATV71PU40N4Z - line choke - 2 per drive, ATV71WU22N4 - line choke - 1 per drive, ATV71WU30N4 - line choke - 1 per drive, ATV71WU40N4 - line choke - 1 per drive, LXM05D17M3X - line choke - 1 per drive, LXM05D34N4 - line choke - 1 per drive, LXM05D57N4 - line choke - 1 per drive, ATV12H075F1 - motor choke - 1 per drive, ATV12H075M2 - motor choke - 1 per drive, ATV12H075M3 - motor choke - 1 per drive, ATV12HU15M2 - motor choke - 1 per drive, ATV12HU15M3 - motor choke - 1 per drive, ATV12P075M2 - motor choke - 1 per drive, ATV312HU11M3 - line choke - 1 per drive, ATV312HU15M3 - line choke - 1 per drive, ATV312HU22N4 - line choke - 1 per drive, ATV312HU30N4 - line choke - 1 per drive, ATV312HU40N4 - line choke - 1 per drive, ATV312HU40S6 - line choke - 1 per drive, ATV312HU55S6 - line choke - 1 per drive, ATV61HU40Y - line choke - 1 per drive, ATV61HU55Y - line choke - 1 per drive, ATV71HU40Y - line choke - 1 per drive, ATV71HU55S6X - line choke - 1 per drive, ATV12P075M3 - motor choke - 1 per drive, ATV12PU15M3 - motor choke - 1 per drive, ATV61HU30S6X - line choke - 1 per drive, ATV61HU40S6X - line choke - 1 per drive, ATV61HU55S6X - line choke - 1 per drive, ATV71HU30S6X - line choke - 1 per drive, ATV71HU40S6X - line choke - 1 per drive, ATV32HU22N4 - motor choke - 1 per drive, ATV32HU30N4 - motor choke - 1 per drive, ATV32HU40N4 - motor choke - 1 per drive, variable speed drive ATV310 1.5 kW - line choke - 1 per drive, variable speed drive ATV310 2.2 kW - line choke - 1 per drive, variable speed drive ATV310 3 kW - line choke - 1 per drive, variable speed drive ATV310 4 kW - motor choke - 1 per drive, variable speed drive ATV320 2.2 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 0.18 kW 200...240 V - single phase - motor choke - 1 per drive, variable speed drive ATV320 0.37 kW 200...240 V - single phase - motor choke - 1 per drive, variable speed drive ATV320 0.55 kW 200...240 V - single phase - motor choke - 1 per drive, variable speed drive ATV320 0.75 kW 200...240 V - single phase - motor choke - 1 per drive, variable speed drive ATV320 1.1 kW 200...240 V - single phase - motor choke - 1 per drive, variable speed drive ATV320 4 kW 525...600 V - three phase - line choke - 1 per drive, variable speed drive ATV320 5.5 kW 525...600 V - three phase - motor choke - 1 per drive, variable speed drive ATV630 5.5 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 7.5 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 5.5 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 600 V - three phase - line choke - 5 hp - 1 per drive, variable speed drive ATV630 600 V - three phase - line choke - 7.5 hp - 1 per drive, variable speed drive ATV310L 0.75 kW
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Eu Rohs Directive
    Compliant
    Packaging Without Single Use Plastic
    No
    Relative Humidity
    0-95 %
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Operating Altitude<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Phase
    three phase
    Range Of Product
    Altivar
    Product Or Component Typeline/motor choke

    ETIM

    ETIM 8
    EC002563
    ETIM 9EC002563

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
