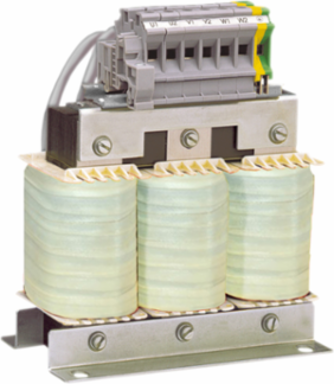

Schneider Electric VW3A5107 Motor Choke for Variable Speed Drives, 759 A, IP00, 93 kg
- MPN: VW3A5107
- PPN: SCH-VW3A5107
CAD
$4145.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 759A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 93 kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Documentation & Downloads
Specifications
Key Specifications
- Sale Per Indivisible Quantity
- 3
- Electrical Connection
- tag connector 2 x M12
- [In] Rated Current
- 759 A
- Product Or Component Type
- motor choke
Product CompatibilityATV71HC25N4 || ATV61HC25N4 || ATV61HC31N4 || ATV61HC40N4 || ATV61HC50Y || ATV61HC63Y || ATV61QC31N4 || ATV61QC40N4 || ATV61QC40Y || ATV61QC50Y || ATV71HC28N4 || ATV71HC31N4 || ATV71HC40N4 || ATV71HC40Y || ATV71HC50Y || ATV71QC25N4 || ATV71QC31N4 || ATV71QC31Y || ATV71QC40Y || ATV630 variable speed drive wall mount - 250 kW, 380...480 V || ATV630 variable speed drive wall mount - 315 kW, 380...480 V || ATV930 variable speed drive wall mount - 250 kW, 380...480 V || ATV930 variable speed drive wall mount - 315 kW, 380...480 V
Product Specific Applicationoutput filter
Range CompatibilityAltivar 71 || Altivar Process ATV900 || Altivar 61Q || Altivar 61 || Altivar 71Q || Altivar Process ATV600
Complementary
- Maximum Output Frequency
- 100 Hz
- Maximum Motor Cable Length
- 200 m shielded cable 250-355 kW 380...480 V 1 || 250 m unshielded cable 250-355 kW 380...480 V 1 || 150 m shielded cable 400-630 kW 500...690 V 1 || 250 m unshielded cable 400-630 kW 500...690 V 1 || 250 m shielded cable 400-630 kW 500...690 V 2 || 400 m unshielded cable 400-630 kW 500...690 V 2
- Thermal Losses
- 598 W
Dv/Dt500 V/µs 400 V || 750 V/µs 500 V || 1000 V/µs 690 V
Ambient Air Temperature For Operation-10-50 °C
Net Weight93 kg
Environment
- Ambient Air Temperature For Storage
- -25-70 °C
Ip Degree Of ProtectionIP20 with kits VW3A9612,613) || IP00
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
