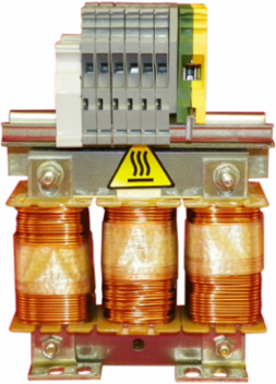

Schneider Electric VW3A4551 Line Choke, 10 mH Inductance, 4 A, 45 W, 3 Phase, Compact Design

Line Choke, 10 mH Inductance, 4 A, 45 W, 3 Phase, Compact Design
  • MPN: VW3A4551
  • PPN: SCH-VW3A4551

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$390.92/ EA

    Description

    This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 4A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 10mH. It weighs 1.5kg and its dimensions are, 100mm wide, 135mm high, 60mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

    Specifications

    Environment

    Standards
    VDE 0160 level 1 || IEC 60076 (with HD398) || EN 50178
    Shock Resistance
    15 gn 11 ms IEC 60068-2-27
    Vibration Resistance
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
    Pollution Degree
    2 EN 50178
    Ip Degree Of Protection
    choke IP00 || terminals IP20
    Ambient Air Temperature For Operation45-55 °C with current derating of 2 % per °C) || 0-45 °C without current derating)
    Environmental Characteristic3B1 IEC 721-3-3 || 3C2 IEC 721-3-3 || 3S1 IEC 721-3-3
    Relative Humidity0-95 %
    Ambient Air Temperature For Storage-25-70 °C
    Operating Altitude<= 1000 m without current derating || 1000...3000 m with current derating 1 % per 100 m

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationX

    Complementary

    Height
    135 mm
    Leakage Distance
    11.5 mm IEC 60664
    Minimum Clearance Distance
    5.5 mm IEC 60664
    Width
    100 mm
    Maximum Voltage Drop At Rated Load
    5 %
    Net Weight1.5 kg
    Electrical Insulation Classclass F
    Max Current1.65 x nominal current 60 s)
    Depth60 mm
    Supply Frequency50...60 Hz

    Specifications

    Thermal Losses
    45 W
    Product Or Component Type
    line/motor choke
    Value Of Inductance
    10 mH
    Electrical Connection
    terminal 2.5 mm² / AWG 12, 0.4-0.6 N.m
    Range Compatibility
    Altivar 61 || Altivar 312 || Altivar Process ATV900 || Altivar 32 || Altivar 312 Solar || Altivar Process ATV600 || Altivar 31C || Lexium 62 || Easy Altivar 310 || Altivar Machine ATV340 || Altivar Machine ATV320 || Altivar 71 || Altivar 12 || Easy Altivar 310L
    Range Of ProductAltivar
    Network Number Of Phasesthree phase
    Product CompatibilityATV12H018F1 - motor choke - 1 per drive || ATV12H018M2 - motor choke - 1 per drive || ATV12H018M3 - motor choke - 1 per drive || ATV12H037F1 - motor choke - 1 per drive || ATV12H037M2 - motor choke - 1 per drive || ATV12H037M3 - motor choke - 1 per drive || ATV12H055M2 - motor choke - 1 per drive || ATV12P037F1 - motor choke - 1 per drive || ATV12P037M2 - motor choke - 1 per drive || ATV12P037M3 - motor choke - 1 per drive || ATV12P055M2 - motor choke - 1 per drive || ATV312H018M3 - line choke - 1 per drive || ATV312H037M3 - line choke - 1 per drive || ATV312H037N4 - line choke - 1 per drive || ATV312H055M3 - line choke - 1 per drive || ATV312H055N4 - line choke - 1 per drive || ATV312H075M3 - line choke - 1 per drive || ATV312H075N4 - line choke - 1 per drive || ATV312H075S6 - line choke - 1 per drive || ATV312HU11N4 - line choke - 1 per drive || ATV312HU15N4 - line choke - 1 per drive || ATV312HU15S6 - line choke - 1 per drive || ATV32H037N4 - line choke - 1 per drive || ATV32H055N4 - line choke - 1 per drive || ATV32H075N4 - line choke - 1 per drive || ATV32HU11N4 - line choke - 1 per drive || ATV32HU15N4 - line choke - 1 per drive || ATV61H075M3 - line choke - 1 per drive || ATV61H075N4 - line choke - 1 per drive || ATV61HU15N4 - line choke - 1 per drive || ATV61HU30Y - line choke - 1 per drive || ATV61W075N4 - line choke - 1 per drive || ATV61W075N4C - line choke - 1 per drive || ATV61WU15N4 - line choke - 1 per drive || ATV61WU15N4C - line choke - 1 per drive || ATV71H037M3 - line choke - 1 per drive || ATV71H075M3 - line choke - 1 per drive || ATV71H075N4 - line choke - 1 per drive || ATV71HU15N4 - line choke - 1 per drive || ATV71HU22Y - line choke - 1 per drive || ATV71HU30Y - line choke - 1 per drive || ATV71P075N4Z - line choke - 1 per drive || ATV71PU15N4Z - line choke - 1 per drive || ATV71W075N4 - line choke - 1 per drive || ATV71WU15N4 - line choke - 1 per drive || ATV61HU22S6X - line choke - 1 per drive || ATV71HU15S6X - line choke - 1 per drive || ATV71HU22S6X - line choke - 1 per drive || ATV31C037N4 - line choke - 1 per drive || ATV31C055N4 - line choke - 1 per drive || ATV31C075N4 - line choke - 1 per drive || ATV31CU11N4 - line choke - 1 per drive || ATV31CU15N4 - line choke - 1 per drive || variable speed drive ATV310 0.37 kW - line choke - 1 per drive || variable speed drive ATV310 0.75 kW - line choke - 1 per drive || variable speed drive ATV340 0.75 kW 380...480 V - line choke - 1 per drive || variable speed drive ATV340 1.5 kW 380...480 V - line choke - 1 per drive || variable speed drive ATV320 0.37 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.55 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.75 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 1.1 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 1.5 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.18 kW 200...240 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.37 kW 200...240 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.55 kW 200...240 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.75 kW 200...240 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.75 kW 525...600 V - three phase - line choke - 1 per drive || variable speed drive ATV320 1.5 kW 525...600 V - three phase - line choke - 1 per drive || variable speed drive ATV320 2.2 kW 525...600 V - three phase - line choke - 1 per drive || variable speed drive ATV630 2.2 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV630 3 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV630 4 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV930 2.2 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV930 3 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV930 4 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV630 600 V - three phase - line choke - 3 hp - 1 per drive || variable speed drive ATV930 600 V - three phase - line choke - 3 hp - 1 per drive || variable speed drive ATV310L 0.75 kW || variable speed drive ATV310L 1.5 kW || variable speed drive ATV310L 2.2 kW || variable speed drive ATV310L 3.0 kW || variable speed drive ATV310L 4.0 kW || variable speed drive ATV310L 5.5 kW
    [In] Rated Current4 A
    Device Applicationreduction of current harmonics
