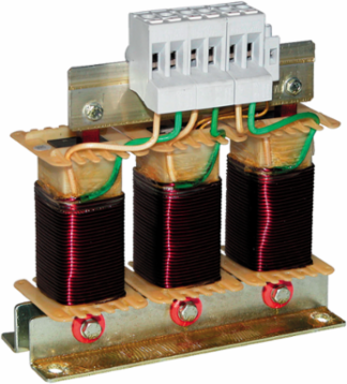

Motor Choke for Variable Speed Drive 90A, IP20 Protection, 10 kg Weight
Schneider Electric

Schneider Electric VW3A5103 Motor Choke for Variable Speed Drive 90A, IP20 Protection, 10 kg Weight

  • MPN: VW3A5103
  • PPN: SCH-VW3A5103
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $663.51

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current is equal to 90A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 10kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

    Documentation & Downloads

    Specifications

    Key Specifications

    Electrical Connection
    bare wires 9 mm
    Sale Per Indivisible Quantity
    1
    Product Specific Application
    output filter
    Range Compatibility
    Altivar 212 || Altivar 61 || Altivar 71 || Altivar Process ATV900 || Altivar Process ATV600
    Product Or Component Typemotor choke
    Product CompatibilityATV61H075N4 || ATV61HU15N4 || ATV61HU22N4 || ATV61HU30N4 || ATV61HU40N4 || ATV61W075N4 || ATV61W075N4C || ATV61WU15N4 || ATV61WU15N4C || ATV61WU22N4 || ATV61WU22N4C || ATV61WU30N4 || ATV61WU30N4C || ATV61WU40N4 || ATV61WU40N4C || ATV71H075N4 || ATV71HU15N4 || ATV71HU22N4 || ATV71HU30N4 || ATV71HU40N4 || ATV71P075N4Z || ATV71PU15N4Z || ATV71PU22N4Z || ATV71PU30N4Z || ATV71PU40N4Z || ATV71W075N4 || ATV71WU15N4 || ATV71WU22N4 || ATV71WU30N4 || ATV71WU40N4 || ATV61HD11N4 || ATV61HD11Y || ATV61HD15N4 || ATV61HD18N4 || ATV61HU22S6X || ATV61HU30M3 || ATV61HU30S6X || ATV61HU30Y || ATV61HU40M3 || ATV61HU40S6X || ATV61HU40Y || ATV61HU55M3 || ATV61HU55N4 || ATV61HU55S6X || ATV61HU55Y || ATV61HU75M3 || ATV61HU75N4 || ATV61HU75S6X || ATV61HU75Y || ATV61WD11N4 || ATV61WD11N4C || ATV61WD15N4 || ATV61WD15N4C || ATV61WD18N4 || ATV61WD18N4C || ATV61WU55N4 || ATV61WU55N4C || ATV61WU75N4 || ATV61WU75N4C || ATV71HD11N4 || ATV71HD11Y || ATV71HD15N4 || ATV71HD18N4 || ATV71HU15S6X || ATV71HU22S6X || ATV71HU22Y || ATV71HU30M3 || ATV71HU30S6X || ATV71HU30Y || ATV71HU40M3 || ATV71HU40S6X || ATV71HU40Y || ATV71HU55M3 || ATV71HU55N4 || ATV71HU55S6X || ATV71HU55Y || ATV71HU75M3 || ATV71HU75N4 || ATV71HU75S6X || ATV71HU75Y || ATV71PD11N4Z || ATV71PU55N4Z || ATV71PU75N4Z || ATV71WD11N4 || ATV71WD15N4 || ATV71WD18N4 || ATV71WU55N4 || ATV71WU75N4 || ATV212H075M3X || ATV212H075N4 || ATV212HD11M3X || ATV212HD11N4 || ATV212HU15M3X || ATV212HU15N4 || ATV212HU22M3X || ATV212HU22N4 || ATV212HU30M3X || ATV212HU30N4 || ATV212HU40M3X || ATV212HU40N4 || ATV212HU55M3X || ATV212HU55N4 || ATV212HU75M3X || ATV212HU75N4 || ATV212W075N4 || ATV212W075N4C || ATV212WD11N4 || ATV212WD11N4C || ATV212WU15N4 || ATV212WU15N4C || ATV212WU22N4 || ATV212WU22N4C || ATV212WU30N4 || ATV212WU30N4C || ATV212WU40N4 || ATV212WU40N4C || ATV212WU55N4 || ATV212WU55N4C || ATV212WU75N4 || ATV212WU75N4C || ATV61HD11M3X || ATV61HD15M3X || ATV61HD15Y || ATV61HD18M3X || ATV61HD18Y || ATV61HD22M3X || ATV61HD22N4 || ATV61HD22Y || ATV61HD30N4 || ATV61HD30Y || ATV61HD37N4 || ATV61WD22N4 || ATV61WD22N4C || ATV61WD30N4 || ATV61WD30N4C || ATV61WD37N4 || ATV61WD37N4C || ATV71HD11M3X || ATV71HD15M3X || ATV71HD15Y || ATV71HD18M3X || ATV71HD18Y || ATV71HD22M3X || ATV71HD22N4 || ATV71HD22Y || ATV71HD30Y || ATV71HD37N4 || ATV71WD30N4 || ATV71WD37N4 || ATV630 variable speed drive - 2.2 kW, 500...690 V three phase || ATV630 variable speed drive - 3 kW, 500...690 V three phase || ATV630 variable speed drive - 4 kW, 500...690 V three phase || ATV630 variable speed drive - 5.5 kW, 500...690 V three phase || ATV630 variable speed drive - 7.5 kW, 500...690 V three phase || ATV630 variable speed drive - 11 kW, 500...690 V three phase || ATV930 variable speed drive - 2.2 kW, 500...690 V three phase || ATV930 variable speed drive - 3 kW, 500...690 V three phase || ATV930 variable speed drive - 4 kW, 500...690 V three phase || ATV930 variable speed drive - 5.5 kW, 500...690 V three phase || ATV930 variable speed drive - 7.5 kW, 500...690 V three phase || ATV930 variable speed drive - 11 kW, 500...690 V three phase || ATV630 variable speed drive, 3 hp, 600 V three phase || ATV630 variable speed drive, 5 hp, 600 V three phase || ATV630 variable speed drive, 7.5 hp, 600 V three phase || ATV630 variable speed drive, 10 hp, 600 V three phase || ATV630 variable speed drive, 15 hp, 600 V three phase || ATV930 variable speed drive, 3 hp, 600 V three phase || ATV930 variable speed drive, 5 hp, 600 V three phase || ATV930 variable speed drive, 7.5 hp, 600 V three phase || ATV930 variable speed drive, 10 hp, 600 V three phase || ATV930 variable speed drive, 15 hp, 600 V three phase
    [In] Rated Current90 A

    Complementary

    Maximum Output Frequency
    100 Hz
    Ambient Air Temperature For Operation
    -10-50 °C
    Net Weight
    10 kg
    Thermal Losses
    350 W
    Maximum Motor Cable Length300 m shielded cable 2.2-7.5 kW 200...240 V 1 || 300 m unshielded cable 2.2-7.5 kW 200...240 V 1 || 150 m shielded cable 11-22 kW 200...240 V 1 || 300 m unshielded cable 11-22 kW 200...240 V 1 || 160 m shielded cable 0.75-18.5 kW 380...480 V 1 || 200 m unshielded cable 0.75-18.5 kW 380...480 V 1 || 140 m shielded cable 22-30 kW 380...480 V 1 || 170 m unshielded cable 22-30 kW 380...480 V 1 || 75 m shielded cable 2.2-7.5 kW 500...600 V 1 || 150 m unshielded cable 2.2-7.5 kW 500...600 V 1 || 65 m shielded cable 2.2-30 kW 500...690 V 1 || 100 m unshielded cable 2.2-30 kW 500...690 V 1 || 150 m shielded cable 2.2-7.5 kW 500...690 V 2 || 250 m unshielded cable 2.2-7.5 kW 500...690 V 2 || 100 m shielded cable 2.2-30 kW 500...690 V 2 || 150 m unshielded cable 2.2-30 kW 500...690 V 2 || 97 m shielded cable 37-37 kW 380...480 V 1 || 166 m unshielded cable 37-37 kW 380...480 V 1
    Protection Typethermal protection temperature-controlled switch 125 °C 250 V AC, <0.5 A
    Dv/Dt500 V/µs 400 V || 750 V/µs 500 V || 1000 V/µs 690 V

    Environment

    Ip Degree Of Protection
    IP20 with kits VW3A9612,613) || IP00
    Ambient Air Temperature For Storage-25-70 °C

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationX
