Line/Motor Choke 1 mH 31 A 3 Phase 90 W
Schneider Electric

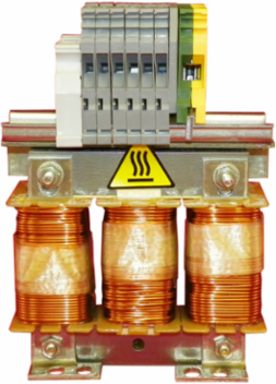

Schneider Electric VW3A4554 Line/Motor Choke 1 mH 31 A 3 Phase 90 W

  • MPN: VW3A4554
  • PPN: SCH-VW3A4554
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $558.08

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 31A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 1mH. It weighs 6kg and its dimensions are, 155mm wide, 170mm high, 135mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, Czechia, Germany, France, United States
    Depth135 mm

    Complementary Attributes

    Line Rated Current
    31 A
    Minimum Clearance Distance
    5.5 mm IEC 60664
    Maximum Voltage Drop At Rated Load5 %

    Important Information Attributes

    Device Application
    reduction of current harmonics, reduction of overvoltages at motor terminals
    Certificate Agency
    EN 50178, IEC 60076 (with HD398), VDE 0160 level 1
    Local Publishable Date
    2026-02-06
    Stocking Flag
    Y
    Device Type
    Variable speed drive - VSD option & accessory
    Traceability
    No
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1920
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Electrical Connection
    terminal 16 mm² / 4 AWG, 1.2-1.4 N.m
    Leakage Distance
    11.5 mm IEC 60664
    Phase
    three phase
    Product Or Component Type
    line/motor choke
    Returnability
    Yes
    Supply Frequency
    50...60 Hz
    Thermal Losses
    90 W
    Vibration Resistance
    1 gn (f= 13-200 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
    Width Nominal
    155 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8504508000
    Environmental Characteristic3B1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3S1 conforming to IEC 721-3-3
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Electrical Insulation Classclass F
    Max Current1.65 x nominal current 60 s)
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductAltivar
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Sustainable PackagingNo
    Value Of Inductance1 mH
    Height Nominal170 mm
    Accessory / Separate Part Categoryprotection accessories
    Package Weight(Lbs)5.994 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-70 °C, -25-70 °C
    Product Compatibility
    variable speed drive ATV320 5.5 kW 200...240 V - three phase - motor choke - 1 per drive, ATV312HU40M3 - motor choke - 1 per drive, variable speed drive ATV340 11 kW 380...480 V - line choke - 1 per drivevariable speed drive ATV320 15 kW 380...500 V - three phase - line choke - 1 per driveATV32HD11N4 - line choke - 1 per drive, variable speed drive ATV340 15 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV320 11 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 15 kW 525...600 V - three phase - line choke - 1 per drive, variable speed drive ATV630 600 V - three phase - line choke - 25 hp - 1 per drive, ATV312HD11N4 - line choke - 1 per drive, variable speed drive ATV320 11 kW 380...500 V - three phase - motor choke - 1 per drive, ATV312HD15S6 - line choke - 1 per drive, variable speed drive ATV320 7.5 kW 200...240 V - three phase - line choke - 1 per drivevariable speed drive ATV630 18.5 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV310 7.5 kW - line choke - 1 per drive, variable speed drive ATV930 600 V - three phase - line choke - 30 hp - 1 per drive, variable speed drive ATV320 4 kW 200...240 V - three phase - line choke - 1 per drive, ATV312HU55M3 - motor choke - 1 per drive, variable speed drive ATV320 7.5 kW 200...240 V - three phase - motor choke - 1 per drive, ATV312HU75M3 - motor choke - 1 per drivevariable speed drive ATV310 11 kW - motor choke - 1 per drive, variable speed drive ATV320 11 kW 525...600 V - three phase - line choke - 1 per driveATV31CD11N4 - motor choke - 1 per drivevariable speed drive ATV630 22 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV320 11 kW 525...600 V - three phase - motor choke - 1 per drive, variable speed drive ATV310 7.5 kW - motor choke - 1 per driveATV31CD11N4 - line choke - 1 per drivevariable speed drive ATV320 15 kW 525...600 V - three phase - motor choke - 1 per drive, ATV312HU55M3 - line choke - 1 per drive, LXM32.D30N4 - line choke - 1 per drive, ATV71HD18Y - line choke - 1 per drive, ATV312HD15S6 - motor choke - 1 per drive, ATV312HD11S6 - motor choke - 1 per drive, ATV312HD15N4 - line choke - 1 per drive, ATV61WD11N4C - line choke - 1 per drive, ATV61HD15N4 - line choke - 1 per drive, ATV71WD15N4 - line choke - 1 per drivevariable speed drive ATV340 7.5 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV930 18.5 kW 500...690 V - three phase - line choke - 1 per drive, LXM32MC10N4 - line choke - 1 per drive, ATV312HD11N4 - motor choke - 1 per drivevariable speed drive ATV320 5.5 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 7.5 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV310 11 kW - line choke - 1 per drive, ATV312HU40M3 - line choke - 1 per drive, ATV61HD22Y - line choke - 1 per drive, ATV32HD11N4 - motor choke - 1 per drivevariable speed drive ATV930 600 V - three phase - line choke - 25 hp - 1 per drive, LXM32.D18N4 - line choke - 1 per drive, ATV61HU55M3 - line choke - 1 per drive, ATV12PU40M3 - motor choke - 1 per drive, LXM32.D72N4 - line choke - 1 per drive, ATV312HU75N4 - motor choke - 1 per drive, ATV61WD11N4 - line choke - 1 per drive, ATV61HD11N4 - line choke - 1 per drive, ATV71WD11N4 - line choke - 1 per drive, ATV31CU75N4 - motor choke - 1 per drivevariable speed drive ATV630 600 V - three phase - line choke - 30 hp - 1 per drive, variable speed drive ATV320 4 kW 200...240 V - three phase - motor choke - 1 per drive, ATV312HU75M3 - line choke - 1 per drive, ATV61WD15N4 - line choke - 1 per drive, ATV31CD15N4 - line choke - 1 per drive, ATV71PD11N4Z - line choke - 1 per drive, ATV61HD18Y - line choke - 1 per drive, ATV32HD15N4 - line choke - 1 per drive, ATV71HU40M3 - line choke - 1 per drive, ATV61HU40M3 - line choke - 1 per drive, variable speed drive ATV930 22 kW 500...690 V - three phase - line choke - 1 per drive, ATV32HU75N4 - motor choke - 1 per drive, LXM32MD85N4 - line choke - 1 per drive, ATV71HD11N4 - line choke - 1 per drive, ATV71HD22Y - line choke - 1 per drive, ATV71HD15N4 - line choke - 1 per drive, ATV71HU55M3 - line choke - 1 per drive, ATV12HU40M3 - motor choke - 1 per drive, ATV61WD15N4C - line choke - 1 per drive
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Ambient Air Temperature For Operation
    45-55 °C (with current derating of 2 % per °C)0-45 °C (without current derating)
    Ip Degree Of Protection
    choke IP00terminals IP10
    Packaging Without Single Use Plastic
    No
    Relative Humidity
    0-95 %
    Operating Altitude<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Phase
    three phase
    Range Of Product
    Altivar
    Product Or Component Typeline/motor choke

    ETIM

    ETIM 8
    EC002563
    ETIM 9EC002563

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
