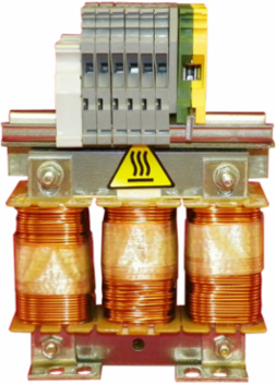

Schneider Electric VW3A4555 Line/Motor Choke 0.5 mH, 60 A, 94 W for Variable Speed Drives

  • MPN: VW3A4555
  • PPN: SCH-VW3A4555
  • UNSPSC: 39121021
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $727.14

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.5mH. It weighs 11kg and its dimensions are, 180mm wide, 210mm high, 165mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

    Features

    • Improved protection against overvoltages on the line supply
    • Reduce the harmonic distortion of the current produced by the drive
    • In line with standard EN 50178
    • Easy to install

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina, Czechia
    Depth165 mm

    Complementary Attributes

    Line Rated Current60 A
    Minimum Clearance Distance5.5 mm IEC 60664
    Maximum Voltage Drop At Rated Load5 %

    Important Information Attributes

    Device Applicationreduction of overvoltages at motor terminals, reduction of current harmonics
    Certificate AgencyEN 50178, IEC 60076 (with HD398), VDE 0160 level 1
    Local Publishable Date2026-02-06
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1920
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Electrical Connectionterminal 35 mm² / 0 AWG, 2.5-3 N.m
    Leakage Distance11.5 mm IEC 60664
    Phasethree phase
    Product Or Component Typeline/motor choke
    ReturnabilityYes
    Supply Frequency50...60 Hz
    Thermal Losses94 W
    Vibration Resistance1 gn (f= 13-200 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
    Width Nominal180 mm
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Environmental Characteristic3B1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3S1 conforming to IEC 721-3-3
    Local Data StatusPublishable
    Return IndicatorY
    ServiceabilityNo
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Electrical Insulation Classclass F
    Max Current1.65 x nominal current 60 s)
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductAltivar
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Sustainable PackagingNo
    Value Of Inductance0.5 mH
    Height Nominal210 mm
    Accessory / Separate Part Categoryprotection accessories
    Customs Code8504508000

    Environment Attributes Main

    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Product Compatibilityvariable speed drive ATV320 15 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV930 37 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 45 kW 500...690 V - three phase - line choke - 1 per drivevariable speed drive ATV930 600 V - three phase - line choke - 40 hp - 1 per drive, variable speed drive ATV930 600 V - three phase - line choke - 50 hp - 1 per drive, variable speed drive ATV930 600 V - three phase - line choke - 60 hp - 1 per driveLXM32MD85N4 - line choke - 1 per drive, LXM32MC10N4 - line choke - 1 per drivevariable speed drive ATV340 15 kW 380...480 V - line choke - 1 per driveATV61CD15N4 - motor choke - 1 per drive, ATV61HD11M3X - line choke - 1 per drive, ATV61HD15N4 - motor choke - 1 per drive, ATV61HD18N4 - line choke - 1 per drive, ATV61HD22N4 - line choke - 1 per drive, ATV61HD30Y - line choke - 1 per drive, ATV61HD37Y - line choke - 1 per drive, ATV61HD45Y - line choke - 1 per drive, ATV61HU75M3 - line choke - 1 per drive, ATV61KD15N4 - motor choke - 1 per drive, ATV61WD18N4 - line choke - 1 per drive, ATV61WD18N4C - line choke - 1 per drive, ATV61WD22N4 - line choke - 1 per drive, ATV61WD22N4C - line choke - 1 per drive, ATV71HD11M3X - line choke - 1 per drive, ATV71HD18N4 - line choke - 1 per drive, ATV71HD22N4 - line choke - 1 per drive, ATV71HD30Y - line choke - 1 per drive, ATV71HD37Y - line choke - 1 per drive, ATV71HD45Y - line choke - 1 per drive, ATV71HU75M3 - line choke - 1 per drive, ATV71WD18N4 - line choke - 1 per drive, ATV71WD22N4 - line choke - 1 per drive, ATV312HD11M3 - line choke - 1 per drive, ATV312HD15M3 - line choke - 1 per drive, ATV32HD15N4 - motor choke - 1 per drive, variable speed drive ATV340 18 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV340 22 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV320 15 kW 380...500 V - three phase - motor choke - 1 per drivevariable speed drive ATV320 11 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV630 30 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 37 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 45 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 30 kW 500...690 V - three phase - line choke - 1 per drivevariable speed drive ATV630 600 V - three phase - line choke - 40 hp - 1 per drive, variable speed drive ATV630 600 V - three phase - line choke - 50 hp - 1 per drive, variable speed drive ATV630 600 V - three phase - line choke - 60 hp - 1 per drive
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Ambient Air Temperature For Operation45-55 °C (with current derating of 2 % per °C)0-45 °C (without current derating)
    Ip Degree Of Protectionchoke IP00terminals IP10
    Packaging Without Single Use PlasticNo
    Relative Humidity0-95 %
    Operating Altitude<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without derating
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Phasethree phase
    Range Of ProductAltivar
    Product Or Component Typeline/motor choke

    ETIM

    ETIM 8EC002563
    ETIM 10EC002563
    ETIM 9EC002563

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
    Line/Motor Choke 0.5 mH, 60 A, 94 W for Variable Speed Drives
