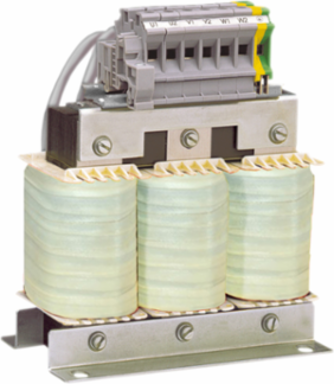

Schneider Electric VW3A5106 Motor Choke for Altivar Drives, 481A Rated Current, IP00, 58 kg
- MPN: VW3A5106
- PPN: SCH-VW3A5106
CAD
$3093.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 481A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 58 kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current. It is sold in indivisible quantity of 3.
Documentation & Downloads
Specifications
Key Specifications
| Sale Per Indivisible Quantity | 3 |
|---|---|
| Electrical Connection | tag connector 2 x M12 |
| [In] Rated Current | 481 A |
| Product Or Component Type | motor choke |
| Product Compatibility | ATV61HC16N4 || ATV61HC22N4 || ATV61HC31Y || ATV61HC40Y || ATV61HD90M3X || ATV61QC20N4 || ATV61QC25N4 || ATV61QC25Y || ATV61QC31Y || ATV71HC16N4 || ATV71HC20N4 || ATV71HC25N4 || ATV71HC25Y || ATV71HC31Y || ATV71QC16N4 || ATV71QC20N4 || ATV71QC20Y || ATV71QC25Y || ATV630 variable speed drive wall mount - 220 kW, 380...480 V || ATV930 variable speed drive wall mount - 220 kW, 380...480 V |
|---|---|
| Product Specific Application | output filter |
| Range Compatibility | Altivar 61 || Altivar 71 || Altivar Process ATV600 || Altivar 61Q || Altivar Process ATV900 || Altivar 71Q |
Complementary
| Maximum Output Frequency | 100 Hz |
|---|---|
| Maximum Motor Cable Length | 250 m shielded cable 90-90 kW 200...240 V || 300 m unshielded cable 90-90 kW 200...240 V || 250 m shielded cable 160-220 kW 380...480 V 1 || 300 m unshielded cable 160-220 kW 380...480 V 1 || 150 m shielded cable 250-400 kW 500...690 V 1 || 250 m unshielded cable 250-400 kW 500...690 V 1 || 250 m shielded cable 250-400 kW 500...690 V 2 || 400 m unshielded cable 250-400 kW 500...690 V 2 |
| Thermal Losses | 530 W |
| Dv/Dt | 500 V/µs 400 V || 750 V/µs 500 V || 1000 V/µs 690 V |
|---|---|
| Ambient Air Temperature For Operation | -10-50 °C |
| Net Weight | 58 kg |
Environment
| Ambient Air Temperature For Storage | -25-70 °C |
|---|
| Ip Degree Of Protection | IP20 with kits VW3A9612,613) || IP00 |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
