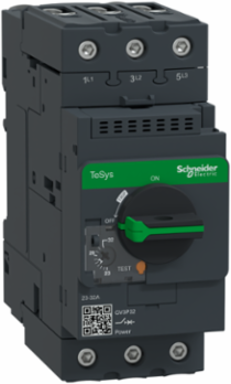

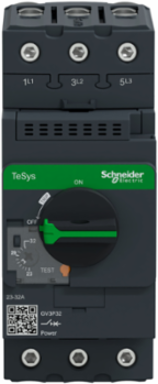

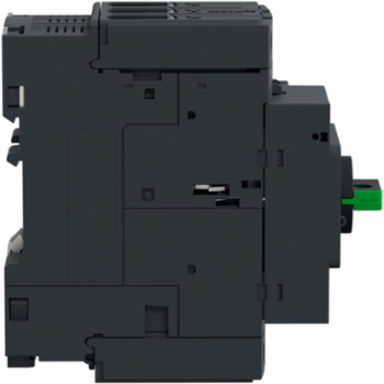

Schneider Electric GV3P32 TeSys Deca 3P Motor Circuit Breaker 32A Thermal-Magnetic
- MPN: GV3P32
- PPN: SCH-GV3P32
CAD
$301.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
GV3P32 is a TeSys GV motor circuit breaker from Schneider Electric. It ensures thermal-magnetic protection for motors 15kW@400V and high breaking capacity Icu 100kA. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. GV3P32 is a TeSys GV motor circuit breaker from Schneider Electric designed for motor applications 15kW@400V. It fulfills a thermal-magnetic protection with a thermal setting range 23-32A, magnetic tripping at 14xIn and high breaking capacity Icu 100kA@400V. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. Complete motor protection in a single device , short-circuit, overload, disconnection. Associated with a TeSys contactor, it ensures a complete type 1 or type 2 Motor Starter solution. Compact, 55mm wide, for DIN-rail and panel mounting. Manual control with rotary knob for Start / Stop, padlockable. Possible mounting of auxiliary contacts front or side mounted (GVAE, GVAN, GVAD) for status and tripping signaling. For large industrial or building LV distribution networks thanks to a high 100kA breaking capacity. Power connections with EverLink BTR screw connectors providing constant tightening pressure. Can be associated with undervoltage or shunt tripping units (GVAU, GVAS) and power distribution busbars (GV3G).
Features
- This TeSys GV3 manual motor starter features a precision-adjustable Class 10 thermal-magnetic trip unit that actively defends three-phase equipment against damaging overloads, short circuits, and phase failures. By automatically severing power before sustained fault currents can degrade expensive motor windings, it prevents catastrophic machinery failures and significantly reduces unplanned downtime on your manufacturing floor.
- Engineered with Schneider Electric s exclusive EverLink creep-compensating connector technology, this breaker utilizes a unique spring-based system to maintain constant pressure on bare cables, even as copper naturally compresses. This advanced anti-loosening design guarantees a highly secure, maintenance-free electrical connection in heavy-vibration industrial environments, permanently eliminating the dangerous risk of thermal hotspots and electrical arcing.
- The ergonomic, front-facing rotary dial provides a clear visual status indication (ON, OFF, or TRIPPED) to speed up troubleshooting in crowded motor control centers (MCC). To ensure strict compliance with OSHA Lockout/Tagout workplace safety protocols, the handle directly accepts multiple padlocks in the OFF position, protecting maintenance personnel from accidental re-energization while servicing 600V heavy-duty machinery.
- Despite delivering a robust 50kA short-circuit interrupting rating (Icu) at 400/415V, this high-performance motor circuit protector features a streamlined 55mm-wide footprint that easily snaps onto standard 35mm or 75mm DIN rails. This space-saving geometry allows panel builders to pack more automated control components into high-density electrical cabinets, reducing overall enclosure costs while maintaining optimal thermal heat dissipation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United Kingdom, United States

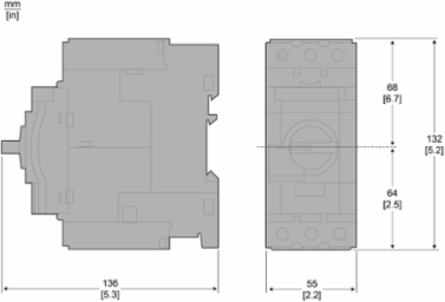

Depth136 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Rated Current
- 32 A
- Maximum Operating Rate
- 25 cyc/h
Line Rated Current32 A
Rated Dutyuninterrupted IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL

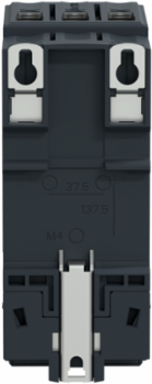

- Fixing Mode
- 35 mm symmetrical DIN rail clipped, panel screwed with 3 x M4 screws)
- Range Of Product
- TeSys GV3, TeSys Deca
- Certificate Agency
- CCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, ABS, DNV-GL, UKCA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.28544635420228376, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.1069344392964876
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 21 kg CO2 eq., 21.070000000000004
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI060901
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GV3P
- Device Application
- motor protection
- Electrical Durability
- 50000 cycles AC-3 415 V In
- Magnetic Tripping Current
- 448-448 A
- Mechanical Robustness
- shocks 15 Gn for 11 ms contactor openshocks 30 Gn for 11 ms contactor closedvibrations 4 Gn, 5...300 Hz
- Network Frequency
- 50/60 Hz IEC 60947-2
- Number Of Poles
- 3P
- Power Dissipation Per Pole
- 8 W
- Product Name
- TeSys GV3
- Range
- TeSys Deca
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Tightening Torque
- 5 N.m screw clamp terminal
- Trip Unit Technology
- thermal-magnetic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with 690V and 65A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 3P& 10- Rated breaking capacity 6KA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 315.36
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 132 mm
- [Ith] Conventional Free Air Thermal Current
- 32 A IEC 60947-2
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mounting Positionhorizontal, vertical
Rated Current 132 A
[Ics] Rated Service Short-circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-250 % 500 V AC 50/60 Hz IEC 60947-2, 50 % 690 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]2.5759934932242534, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.484113459283891
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typerotary handle
Device Short NameGV3P
Fire Resistance960 °C IEC 60695-2-11
Mechanical Durability50000 cycles
Motor Power Kw15-15 kW 400/415 V AC 50/60 Hz18.5-18.5 kW 500 V AC 50/60 Hz22-22 kW 690 V AC 50/60 Hz
Network TypeAC
Phase Failure Sensitivityyes IEC 60947-4-1
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typemotor circuit breaker
ReturnabilityYes
Suitability For Isolationyes IEC 60947-1
Thermal Protection Adjustment Range23-32 A IEC 60947-2
Total Lifecycle Carbon Footprint30 kg CO2 eq.
Utilisation Categorycategory A IEC 60947-2AC-3 IEC 60947-4-1
Pep CodeENVPEP0609001EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %58
Width Nominal55 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Package Weight(Lbs)998.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP0609001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint29.52248774600692
Circularity ProfileENVEOLI060901
Environmental DisclosureENVPEP0609001EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- TeSys GV3, TeSys Deca
Product Or Component Typemotor circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
