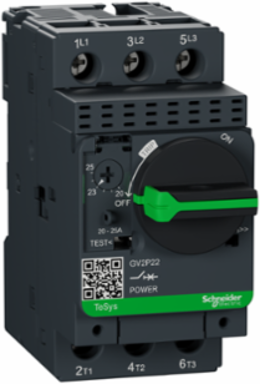

Schneider Electric GV2P22 TeSys Deca Motor Circuit Breaker 3P 20-25A Thermal-Magnetic
- MPN: GV2P22
- PPN: SCH-GV2P22
CAD
$279.66
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2P controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 20 ampere to 25 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Features
- Designed specifically for 3-phase AC motors, this TeSys Deca manual motor starter provides an adjustable 20 to 25 Amp thermal trip setting alongside a highly responsive magnetic short-circuit threshold. This precision dual-protection mechanism actively monitors for dangerous overloads and phase failures, automatically severing power before your expensive 11kW machinery sustains costly winding damage.
- Featuring an ergonomic, high-visibility rotary dial, this motor circuit breaker clearly indicates the ON, OFF, and TRIPPED positions to take the guesswork out of control panel diagnostics. The handle securely accepts standard padlocks in the OFF position, ensuring strict compliance with OSHA Lockout/Tagout (LOTO) workplace safety protocols and protecting technicians from accidental motor startups during mechanical servicing.
- Engineered with a space-saving 45mm width, this motor protector snaps effortlessly onto any standard 35mm DIN rail, maximizing valuable real estate inside crowded industrial enclosures. It utilizes robust screw clamp terminals that guarantee a secure, vibration-resistant wire connection, saving panel builders significant installation time while eliminating the risk of loose contacts in heavy manufacturing environments.
- Delivering an impressive 50kA short-circuit breaking capacity at 400/415V, this Class 10 motor protection circuit breaker (MPCB) securely clears massive fault currents without sustaining physical damage. It is universally certified to rigorous IEC, UL, CSA, and CCC standards, ensuring your commercial pumping systems, HVAC controllers, and conveyor assemblies seamlessly pass stringent global safety inspections.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United Kingdom, Thailand, United States
Depth97 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Line Rated Current
- 25 A
- Rated Duty
- uninterrupted IEC 60947-4-1
Maximum Operating Rate25 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
- Mounting Position
- horizontal, vertical
- Utilisation Category
- category A IEC 60947-2AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
- [Ics] Rated Service Short-circuit Breaking Capacity
- 100 % 230/240 V AC 50/60 Hz IEC 60947-250 % 400/415 V AC 50/60 Hz IEC 60947-275 % 440 V AC 50/60 Hz IEC 60947-2, 75 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 690 V AC 50/60 Hz IEC 60947-2
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0973717106662956, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.03882624267759237
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 40 kg CO2 eq., 39.83372946850174
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2211002
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GV2P
- Device Application
- motor protection
- Fire Resistance
- 960 °C IEC 60695-2-11
- Mechanical Durability
- 100000 cycles
- Motor Power Kw
- 11-11 kW 400/415 V AC 50/60 Hz15-15 kW 500 V AC 50/60 Hz
- Network Type
- AC
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- motor circuit breaker
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-1
- Thermal Protection Adjustment Range
- 20-25 A IEC 60947-2
- Total Lifecycle Carbon Footprint
- 43 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2211002EN
- Pep Verification Date
- 2026-04-17
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 51
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Package Weight(Lbs)
- 332.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Fixing Mode35 mm symmetrical DIN rail clipped, panel screwed with 2 x M4 screws)
Range Of ProductTeSys GV2, TeSys Deca
Certificate AgencyCCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA
Connections - Terminalspower circuit: screw clamp terminal 2 cable(s) 1-6 mm² - solid, power circuit: screw clamp terminal 2 cable(s) 1.5-6 mm² - flexible without cable end, power circuit: screw clamp terminal 2 cable(s) 1-4 mm² - flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5772409349201809, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.092776663378356
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typerotary handle
Device Short NameGV2P
Magnetic Tripping Current388.3-388.3 A
Mechanical Robustnessshocks 30 Gn for 11 msvibrations 5 Gn, 5...150 Hz
Network Frequency50/60 Hz IEC 60947-2
Number Of Poles3P
Power Dissipation Per Pole2.5 W
Product NameTeSys GV2
RangeTeSys Deca
Software Versionv6.2.4
Sustainable PackagingYes
Tightening Torque1.7 N.m screw clamp terminal
Trip Unit Technologythermal-magnetic
R Thermal Protection Adj Range 320-25 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh98.55
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal89 mm
[Ith] Conventional Free Air Thermal Current25 A IEC 60947-2
[Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2211002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint42.63994502014417
Circularity ProfileENVEOLI2211002
Environmental DisclosureENVPEP2211002EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-04-17
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Range Of Product
- TeSys GV2, TeSys Deca
Product Or Component Typemotor circuit breaker
