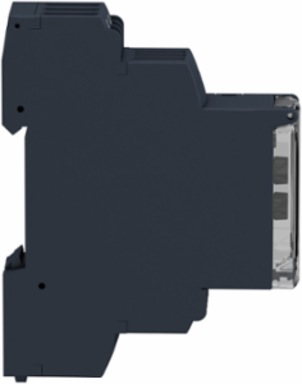

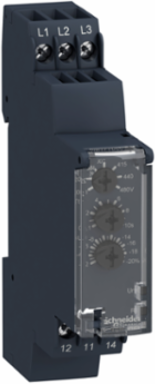

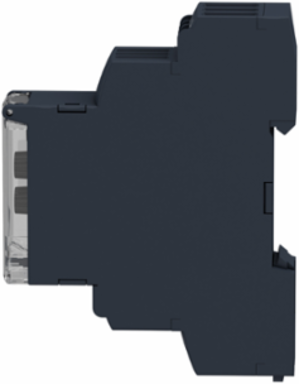

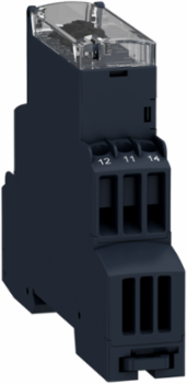

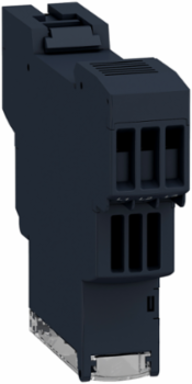

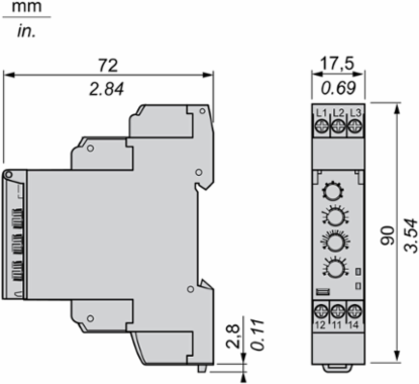

Schneider Electric RM17TU00 Harmony 3-Phase Control Relay, 5A, 208...480V AC, 17.5mm Width
- MPN: RM17TU00
- PPN: SCH-RM17TU00
CAD
$155.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RM17-TU relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, United States
- Depth
- 72 mm
Width17.5 mm
Complementary Attributes
- Control Circuit Voltage Limits
- - 12 % + 10 % Un, - 12 % + 10 % Un
- Control Circuit Frequency
- 50...60 Hz +/- 10 %
- Maximum Measuring Cycle
- 150 ms measurement cycle as true rms value
- Minimum Switching Current
- 10 mA 5 V DC
Maximum Switching Current5 A AC, 5 A DC
Line Rated Current5 A
Maximum Switching Voltage250 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Insulation Resistance
- > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5
- Relay Monitored Parameters
- phase failure detection, undervoltage detection, phase sequence, phase failure detection
- Safety Reliability Data
- MTTFd = 502.2 years, B10d = 470000
- Utilisation Category
- AC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1
- Certificate Agency
- GL, GOST, UL, C-tick, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3854885085872304, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0005841575735513169
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 95 kg CO2 eq., 95.41983755211216
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1601001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1918
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- RM17
- Control Type
- without test button
- Electrical Durability
- 100000 cycles
- Functionality
- undervoltage detection
- Hysteresis
- 2-2 %
- Marking
- CE
- Measurement Voltage Limits
- 183-528 V AC
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Overvoltage Category
- III conforming to IEC 60664-1
- Power Consumption In Va
- 0-22 VA 400 V AC 50 Hz
- Product Or Component Type
- 3-phase control relay
- Range Of Product
- Harmony Control Relays
- Relay Type
- multifunction control relay
- Returnability
- Yes
- Supply Frequency
- 50/60 Hz +/- 10 %
- Sustainable Packaging
- Yes
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 99 kg CO2 eq.
- Measurement Range 4
- 208...480 V AC
- Database Version
- 2024-04
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony RM17-TE relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It works with power consumption of 2.7 W in 80% active mode with life span of 10 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
- Height Nominal
- 90 mm
- [Uc] Control Circuit Voltage
- 208...480 V
- [Us] Rated Supply Voltage
- , self-powered, self-powered
- Package Weight(Lbs)
- 86.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Measurement Error< 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation
Response Time< 200 ms (in the event of a fault), < 200 ms (in the event of a fault)< 200 ms (in the event of a fault), < 200 ms (in the event of a fault)
Threshold Adjustment Voltage-2...-12 % in the range 208 V AC, -2...-17 % in the range 220 V AC, 2...20 % of Un selected, -2...-12 % in the range 208 V AC, -2...-17 % in the range 220 V AC
Vibration Resistance0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
Connections - Terminalsscrew connectors, screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3524507606340501, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.9579268838546358
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition1 C/O
Dielectric Test Voltage2 kV AC 50 Hz, 1 min IEC 60255-5
Electromagnetic Compatibilityemission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to IEC 61000-6-2
Housing Materialpolycarbonate
Local SignallingLED (green) for power ONLED (yellow) for relay ON
Measurement Range208...480 V AC
Mechanical Durability30000000 cycles
Operating Positionany position without derating
Phase Failure Sensitivity0.7 Un
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationfor 3-phase supply
Relay NameRM17TU
Reset Time1500 ms time delay
Software Versionv6.2-6
Supply Voltage Limits183-528 V AC
Switching Capacity In Va1250 VA
Time Delay Typeadjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault
Contacts Composition1 C/O
Pep CodeENVPEP1601001EN
Pep Verification Date2025-03-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
Width Nominal17.5 mm
[Ui] Rated Insulation Voltage400 V IEC 60664-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 99.11628786276162
- Circularity Profile
- ENVEOLI1601001EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1601001EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Directives73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-20-50 °C-20-50 °C
Environmental DisclosureENVPEP1601001EN
Ip Degree Of ProtectionIP20 IEC 60529 terminals)IP30 IEC 60529 casing)
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
Pep Verification Date2025-03-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- 3-phase control relay
Range Of ProductHarmony Control Relays
ETIM
- ETIM 8
- EC001441
ETIM 9EC001441
Output Attributes
- Nominal Output Current
- 5 A
Output Contacts1 C/O
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
