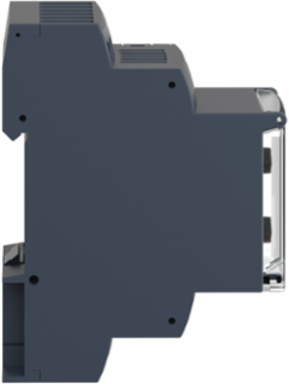

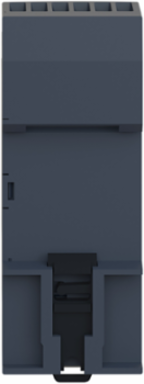

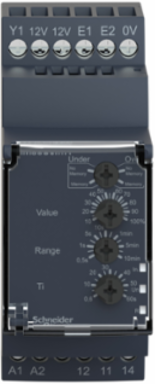

Schneider Electric RM35UA12MW Harmony Voltage Control Relay, 5A, 1-100V AC/DC, 35mm Wide

  • MPN: RM35UA12MW
  • PPN: SCH-RM35UA12MW
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $199.68

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RM35-U multi function control relay allows monitoring of voltage control. This modular multi function control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, United States
    Depth72 mm

    Complementary Attributes

    Control Circuit Voltage Limits
    - 15 % + 10 % Un, - 15 % + 10 % Un
    Line Rated Current
    5 A
    Maximum Power Consumption In W
    0.6 W DC
    Maximum Switching Voltage
    250 V AC/DC
    Control Circuit Frequency40...70 Hz +/- 10 %
    Maximum Measuring Cycle30 ms measurement cycle as true rms value
    Maximum Switching Current5 A AC/DC
    Minimum Switching Current10 mA 5 V DC

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Dielectric Test Voltage
    2 kV AC 50 Hz, 1 min IEC 60255-5, 2 kV AC 50 Hz, 1 min IEC 60664-1
    Measurement Accuracy
    +/- 10 % of the full scale value, +/- 10 % of the full scale value
    Operating Rate
    <= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
    Safety Reliability Data
    B10d = 290000, MTTFd = 308.2 years
    Vibration Resistance
    0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
    [Ui] Rated Insulation Voltage
    250 V IEC 60664-1, 600 V IEC 60664-1
    Non-dissipating Shock Wave
    4 kV IEC 60255-5, 4 kV IEC 60664-1, 4 kV IEC 61000-4-5
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.25719378999418263, 0.3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    9 kg CO2 eq., 9.225184700407212
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Contacts Type And Composition
    2 C/O
    Electrical Durability
    100000 cycles
    Housing Material
    polycarbonate
    Local Signalling
    LED (green) for power ONLED (yellow) for relay ON
    Mechanical Durability
    30000000 cycles
    Operating Position
    any position without derating
    Polarity
    non reversible polarity on DC supply
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Quality Labels
    CE
    Relay Monitored Parameters
    overvoltage or undervoltage detection
    Relay Type
    multifunction voltage control relay
    Resistance Across Terminals
    110 mOhm E2-M terminals22 mOhm E1-M terminals220 mOhm E3-M terminals
    Sensitivity Scale
    1...10 V E1-M terminals10...100 V E3-M terminals5...50 V E2-M terminals
    Software Version
    v5.9.4
    Sustainable Packaging
    Yes
    Threshold Setting
    10...100 %
    Time Delay Type
    adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault
    Pep Code
    ENVPEP1601004EN
    Pep Verification Date
    2025-02-23
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    90 mm
    [Uc] Control Circuit Voltage
    24...240 V
    Run-up Delay At Power-up
    600 ms
    Package Weight(Lbs)
    137.0 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Insulation Resistance> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5
    Measurement Error+/- 0.05 %/°C with temperature variation, +/- 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation+/- 0.05 %/°C with temperature variation, +/- 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation
    Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay
    Utilisation CategoryAC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-14 IEC 60947-5-1
    Certificate AgencyGOST, C-tick, UL, GL, CSA
    Connections - Terminalsscrew terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...2 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
    Carbon Footprint Of The Distribution Phase [A4]0.017915001454333914, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.04445227603257708
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]40 kg CO2 eq., 40.209599999999995
    Local Publishable Date2026-04-10
    Stocking FlagY
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1601004EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1918
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeRM3
    Control Typewithout test button
    Electromagnetic Compatibilityemission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to NF EN/IEC 61000-6-2
    Hysteresis5-50 % threshold setting
    Measurement Range1...100 V AC/DC
    Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
    Overvoltage CategoryIII conforming to IEC 60664-1
    Power Consumption In Va0-3.5 VA AC
    Product Or Component Typevoltage control relay
    Range Of ProductHarmony Control Relays
    Relay NameRM35UA
    Reset Time1500 ms time delay
    ReturnabilityYes
    Shock Resistance5 gn IEC 60068-2-27
    Supply Voltage Limits20.4-264 V AC/DC
    Switching Capacity In Va1250 VA
    Tightening Torque0.6-1 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint50 kg CO2 eq.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionRM35 relay used to measure and monitor the abnormal operating&amp; 10conditions such as on current, voltage, frequency, phase, speed, temperature and liquid level that the machine will not be allowed to run when a fault is occurred. It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur.This product will be in 80% active mode with power consumption of 1W during 10 years of lifetime, adhering to IEC 60255-1 standard.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %8
    Width Nominal35 mm
    [Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz, non self-powered
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536490075

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    49.7543457678883
    Circularity Profile
    ENVEOLI1601004EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1601004EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Directives73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation-20-50 °C-20-50 °C
    Environmental DisclosureENVPEP1601004EN
    Ip Degree Of ProtectionIP20 IEC 60529 terminals)IP30 IEC 60529 casing)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
    Pep Verification Date2025-02-23
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    voltage control relay
    Range Of ProductHarmony Control Relays

    ETIM

    ETIM 8
    EC001438
    ETIM 9EC001438

    Output Attributes

    Nominal Output Current
    5 A
    Output Contacts2 C/O

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
